TM Induction Heating Easytherm 60HQ Microprocessor Controlled Induction Heater
Item #:
TMI-Easytherm-60HQ
Brand:
TM Induction Heating
Share this product:

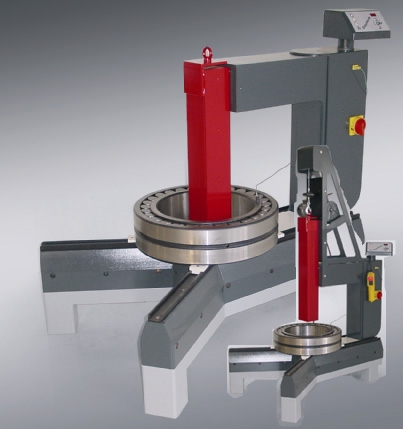

Easytherm 60HQ Microprocessor Controlled Induction Heater by TM Induction Heating
The Easytherm 60 is robust a powerful 400 Volt stationary microprocessor controlled induction heater to be used for the professional mounting of heavy bearings and couplings etc. in maintenance shops and production areas for instance paper-mills and steel-mills.
| Electricity | |
| Power Rating | 40kVA |
| Voltage / current | 480V / 100A |
| Frequency | 50-60 Hz |
| Work Piece | |
| Max. Weight | |
| Bearings | 3306 Lbs |
| Other parts | 3306 Lbs |
| Min. Bore Diameter | 3.38" |
| Max. Outside Diameter | 59.05" |
| Max Work Piece Width | 23.22" |
| Controls | |
| Termperature Control | Yes (0-752 °F |
| Time Control | Yes (0-99 min.) |
| Auto Power Reduction | Yes |
| Standard Yokes | |
| Yoke Dimensions | 60x60x1000mm 80x80x1000mm 100x100x1000mm 150x150x1000mm |
| Support for horizontal heating | Yes |
| Digital Display | |
| Temperature | Yes |
| Time | Yes |
| Error Report | Yes |
| Temperature Indication | °C as standard (for °F measurements under request) |
| Others | |
| Sound Signal | Yes |
| Temperature Hold | Yes |
| Demagnetizing < 2 A/cm | Yes |
| Magnetic Temperature Probe | Yes (2 pcs) |
| Thermal Safety Guard | Yes |
| Special temperature Clamp | Yes (400°C ) |
| Warranty | 36 months |
