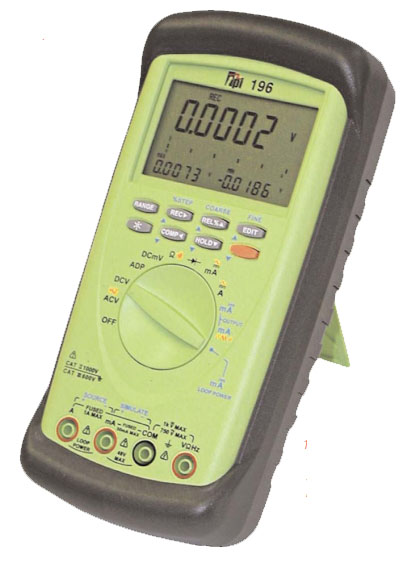

TPI 196 Process Meter

196 Process Meter by Test Products International

The Triple Display 196 is an innovative new concept in DMM design. The unique display enables you to view more than one event at a time. This eliminates the hassle of switching back and forth to review minimum, maximum or preset comparative values. The meter is also easy to use and built to last.

The DMM 196 is a hand-held autoranging DMM. The backlit LCD can display three readings at one time. In addition to basic function of AC/DC V, AC/DC A, Ohm, Diode test, continuity, Capacitance, Frequency, there is the adaptor function. The DMM 196 also has RS232 output and software for recording information into a PC.

Features:

• REC: Records Min/Max and Average readings during specified measurement intervals.
• COMP:Compare actual reading to preset HI and LOW value for Pass/Fail testing of component
• Hold: Tow hold system automatically holds the previous stable reading when a new one is obtained.
• Large 50,000 count display: increases resolution and improves accuracy (1.7" x 2.75", 43mm x 70mm)
• 0-24mA output: t for process controls
• Triple Display: shows more than one reading simultaneously
• 51 Segment Analog Bar Graph: to catch fast AC fluctuations
• Logic Test: Indicates transitions up to 2 MHz.
• Frequency Counter: Measure low frequency signals from 1Hz to 2 MHz and display duty cycle, pulse width and period.
• Back Light (LED Type) allows viewing in any light condition
• Auto Range automatically selects the best range for the measurement
• Separate battery and fuse compartment for easy replacement
• Auto Power Off DMM will automatically power down after approximately 15 minutes of inactivity to extend battery life. Disable Auto Power Off: Hold down the REC button and turn the meter on
• Increased safety with Silicone rubber 1,000V CAT III, 600V CAT IV, 10A test leads (CE & cUL listed)
• Diode Test displays approximate forward bias voltage
• Process DMM with 0 to 24mA output
• 0.05% DCV basic accuracy
• 0 to 750 ACV; max resolution 100uV
• 0 to 1,000 DCV: max resolution 0.001mV
• 0 to 50MΩ; max resolution 0.01Ω
• Audible continuity
• AC/DC amps up to10 amps; resolution 0.01 uA
• Analog bar graph
• cULus 61010-1

Applications:

• View industrial signals such as motor control, UPS, switching power supplies, and PLC controls with 1MHz bandwidth
• Capture noise spikes, glitches, and intermittents with 20 megasamples per second sampling rate
• Full autoranging, True RMS, DMM capabilities
• Measure resistance and test for continuity
• Continually updated display provides a live presentation
• Water Purification
• Chemical Processing
• Oil & Gas
• Power Generation
• Pulp & Paper
• Food & Beverage
