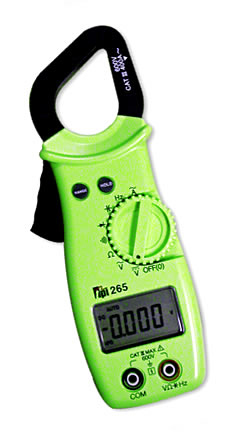

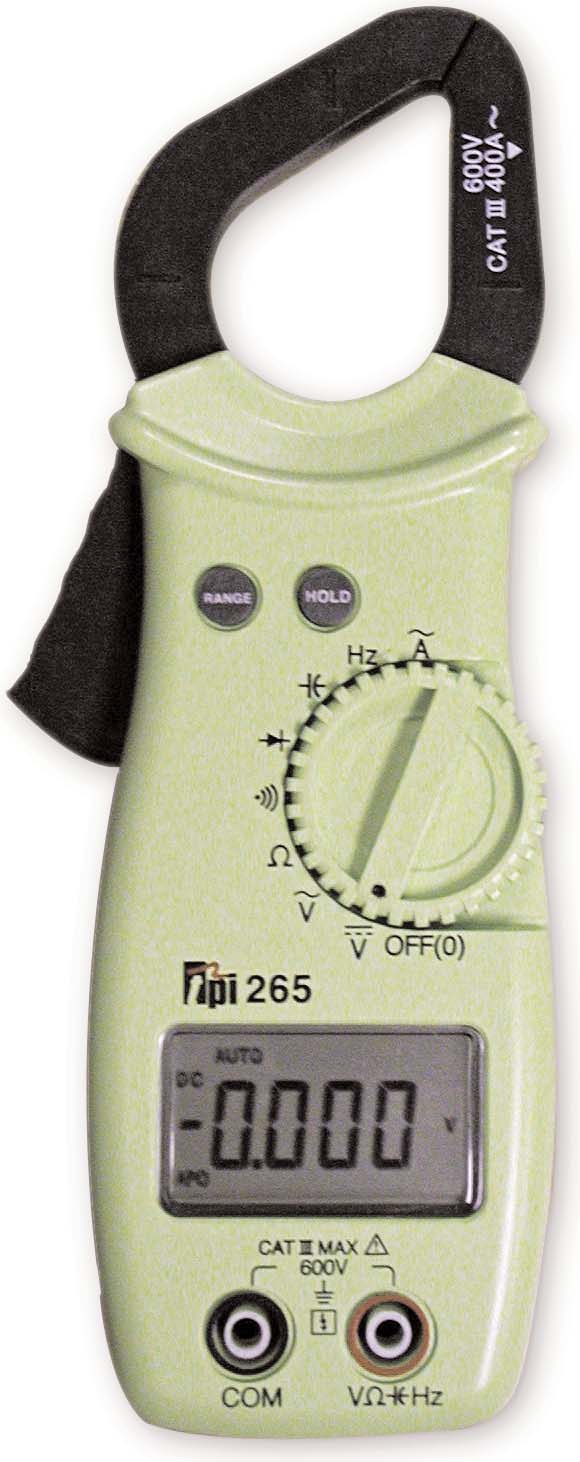

TPI 265 Clamp-On Tester with Frequency and Capacitance

TPI 265 Clamp-On Tester with Frequency and Capacitance


265 Clamp-On Tester with Frequency and Capacitance by Test Products International

Perfect for tight, narrow, spaces. The new TPI 265 with slim jaw and body is ideal for cramped work areas and crowded electrical panels.

The 265 is a hand-held, autoranging clamp-on DMM. Extra large numerals, capacitance, frequency and data hold are just a few of the features of the 265. An affordable choice, the 265 offers measurements in all basic electrical functions.


  • Slim jaw and body design for use is crowded electrical panels
  • 4,000 count display
  • Capacitance range up to 4,000 microfards to test run and start capicitors
  • 0.1 DC millivolt resolution to accurately measure thermocouples and use optional adapters
  • 0.01 AC Amp resolution to measure heat anticipator current
  • Frequency measurement capability
  • AC/DC volts up to 600V and AC Amps up to 400A
  • Diode, resistance and audible continuity ranges
  • Auto / manual ranging
  • Data hold
  • Auto power off
  • CAT III 600V rated
  • cULus 61010
  • 3-year limited warranty


  • Test start and run capacitors
  • Measure heat anticipator current
  • Determine thermocouple voltage
  • Test line and control voltages
  • Measure heating element resistance
  • Measure and adjust variable frequency drives

The 265 comes complete with the following accessories:

  • Carrying Pouch
  • Test Lead Set
  • Instruction Manual
  • Battery
DC Voltage Max Range:600V
Max Resolution:0.1mV
Basic Accuracy: 0.3%
AC Voltage Max Range:600V
Max Resolution:0.1mV
Basic Accuracy: 1.5%
DC Amps N/A
DC Microamps N/A
AC Amps Max Range:400A
Max Resolution:0.1A
Basic Accuracy: 3%
Resistance Max Range:40MΩ
Max Resolution:0.1Ω
Basic Accuracy: 0.8%
Frequency Max Range:40MHz
Max Resolution:1Hz
Basic Accuracy: 0.5%
Capacitance Max Range:4mF
Max Resolution:0.001nF
Basic Accuracy: 3%
Temperature N/A
Non-Contact Voltage (NCV) N/A
Continuity Buzzer <35Ω
Diode Test 1.5mA Max
True RMS Response No
Peak Hold No
Relative Mode No
Min/Max Record No
Data Hold Yes
% Total Harmonic Distortion No
Range Selection Auto / Manual
Display Type 4000 count LCD with analog bargraph
Operating Temperature 32°F to 113°F
Relative Humidity 80% non-condensing
Storage Temperature -4°F to 140°F
Battery Type 9V (MN1604)
Battery Life 80hrs typical
Auto Off / Sleep Mode Yes
Dimensions (H x L x W) 1.3" x 10" x 2.5"
Weight 0.8lb
Agency Approval CE IEC 61010: CAT III, 600V cULus 61010
