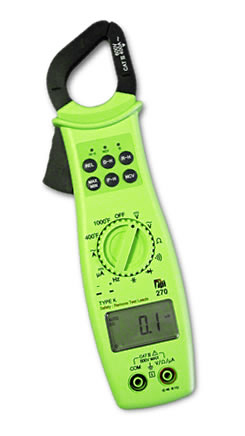

TPI 270 Clamp-On Tester with Digital Multimetervisit

270 Clamp-On Tester with Digital Multimetervisit by Test Products International

Perfect for tight, narrow, spaces. The new TPI 270 with slim jaw and body is ideal for cramped work areas and crowded electrical panels.

The slim design 270 is a hand-held, autoranging clamp-on DMM. Extra large numerals, min/max, capacitance, DC microamps and duty cycle are just a few of the features of the 270. An affordable choice, the 270 offers measurements in all basic electrical functions with additional advanced features like non-contact voltage.

Features:

• Measure motor in-rush current and run current
• Measure temperature differential with relative mode
• Non-contact voltage feature can be used to immediately see if power is being supplied to the 24VAC control circuit of thermostats
• Frequency, Min/Max/Record, Data Hold and Peak Hold
• Up to 40,000 Microfarads to test run and start capacitors
• 4,000 count display with 41 segment analog bargraph
• Auto & Manual Ranging
• Low Battery Indicator
• Over Range Indication ("OL")
• Hi Voltage Indicator (>30V AC/DC)
• Auto Power Off after 30 minutes
• Separate Battery/Fuse Compartment
• Low Ohm Range (400V)
• Amps AC Resolution: 0.01A
• VDC/VAC Resolution: 0.1mV
• DC μA measurement (0.01 μA resolution)
• Temperature measurement with 0.1° resolution

Applications:

• Measure flame safety control current
• Test run and start capacitors and motors
• Measure motor run current and capture peak motor start up amperage
• Measure heat anticipator current
• Determine thermocouple voltage
• Test line and control voltages
• Measure heating element resistance
• Measure air temperature in ducts
• Test for the presence of voltage in circuits without contacting the circuit
• Measure temperature differential using relative mode

The 270 comes complete with the following accessories:

• Carrying Pouch
• Test Lead Set
• Temperature Probe
• Instruction Manual
• Battery & Fuse
