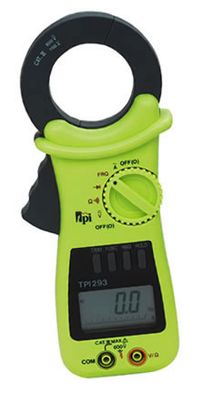

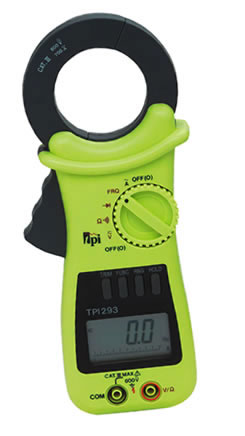

TPI 293 Clamp-on Plus DMM with True RMS Capabilities

Item #:

TPI-293

Brand:

Test Products International

TPI 293 Clamp-on Plus DMM with True RMS Capabilities

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

293 Clamp-on Plus DMM with True RMS Capabilities by Test Products International

Digital Clamp-On Meter Amp Plus. The 293 is a clamp-on plus DMM with True RMS capabilities. The 293 offers measurements in all basic electrical functions plus:

Features:

True RMS: Provides accurate and dependable readings of non-linear loads.
Bar Graph: When measuring frequency, bar graph indicates current level.
TRIM Mode: Smooths out unstable readings.
Peak Mode: For start-up and inrush currents.
Sleep Mode: Preserves battery life.
Data Hold: Holds the reading on the display for easy viewing.
Measure AC/DC volts, resistance, continuity and frequency
CAT III 600 V rated
cULus 61010
3-year limited warranty

Applications:

Heat anticipator current in thermostats
Line voltage
Control circuit voltage
Heating element resistance
Compressor winding resistance
Contactor and relay coil resistance
Motor and compressor start up current
Continuity of wiring
Frequency on control and line voltage
Record/Min/Max voltage of controls and line voltages
Bar graph to indicate rapid fluctuations

The 293 comes complete with the following accessories:

Carrying Pouch
Test Lead Set
Instruction Manual
Battery

Specifications

DCV
Range	40V 400V 600V
Resolution	0.01V 0.1V 1V
Accuracy	± 0.75% of reading, ± 3 digits
Impedance	10MΩ
ACV (45 Hz to 60 Hz)
Range	40V 400V 600V
Resolution	0.01V 0.1V 1V
Accuracy	± 1.0% of reading, ± 3 digits
Impedance	10MΩ
ACV (20 Hz to 45 Hz, 60Hz to 1KHz)
Range	40V 400V 600V
Resolution	0.01V 0.1V 1V
Accuracy	± 2.5% of reading, ± 3 digits
Impedance	10MΩ
ACA
Range	40A 400A 700A
Resolution	0.01A 0.1A 1A
Accuracy	± 2% of reading, ± 20 digits ± 4% of reading, ± 20 digits ± 4% of reading, ± 20 digits
Accuracy	± 2% of reading, ± 10 digits ± 5% of reading, ± 10 digits ± 5% of reading, ± 10 digits
Frequency Response	45Hz to 60Hz 30Hz to 45Hz 60Hz to 1KHz
Frequency Response	45Hz to 60Hz 30Hz to 45Hz 60Hz to 1KHz
OHM (Resistance)
Range	400 4k 40k
Resolution	0.1 0.001k 0.01k
Accuracy	± 1% of reading, ± 10 digits
Accuracy	± 1% of reading, ± 3 digits
Overload Protection	600V DC or AC Peak
Continuity Buzzer
Test Voltage	3V
Threshold	<100 (100 digits)
Overload Protection	600 V DC or Peak AC
Diode Test
Test Voltage	3V
Max Test Current	Approx. 2.5mA
Over Load Protection	600V DC or AC Peak
Frequency
Range	1KHz 10KHz
Resolution	0.1Hz 0.001KHz
Accuracy	± 0.2% of reading, ± 3 digits
Overload Protection	600V DC or Peak AC
General Specifications
Max. Volt. between any Input and Ground	600V
Display Type	4,000 Count, 4 times per second update
Operating Temp.	-10° to 45° C (14° to 113° F)
Storage Temp.	-20° to 55° C (-4°to 131° F)
Relative Humidity	0% to 80% (0° - 35° C/32° - 95°F) 0% to 70% (35° - 50°C/95°- 122°F)
Power Supply	9 Volt Battery
Battery Life	80 hrs. Alkaline
Size (H x L x W)	40mm x 190mm x 65mm (1.5in x 7.25in x 2.5in)
Weight	315g (11.1oz)
