TPI 565C1 Hotwire Air Velocity Meter

Item #:
TPI-565C1
Brand:
Test Products International
TPI 565C1 Hotwire Air Velocity Meter
$169.95
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:

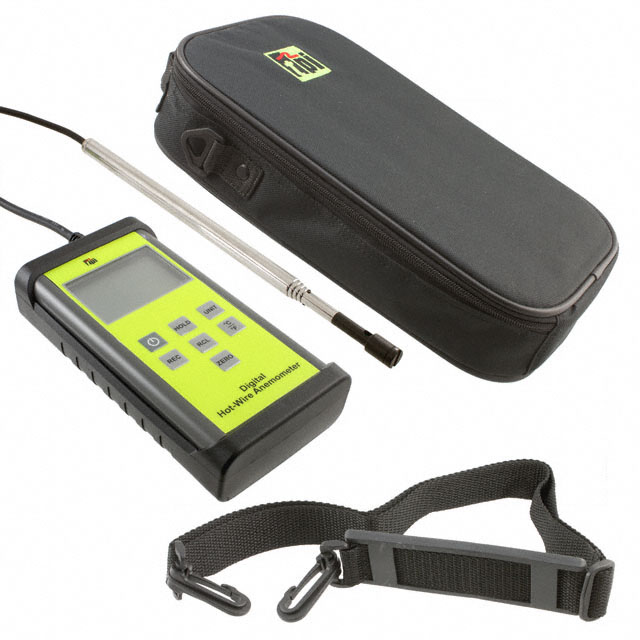

565C1 Hotwire Air Velocity Meter by Test Products International

Features

  • Air flow 0.2 to 20 m/s (Also reads km/s, ft/min, knots/h, miles/h)
  • Temperature -5° to 175° F (-20° to 80°C)
  • Data record function for maximum and minimum temperature and air velocity reading
  • Download to a computer using the RS-232 port and optional A500 cable. (The 565 uses Microsoft Hyper Terminal to download and display air velocity and temperature on your PC.)
  • 39" cable length, hard wired, telescoping tip expands from 10" to 37" (cable length decreases to 12" at full extension)
  • Data Hold
  • Auto Power Off
  • Protective Boot Included
Display Dual digits LCD with function annunciation
Measurement m/s, km/s, ft/min, knots, mile/h, °C, °F
Measurement Range and Accuracy Air Flow (Hot): 0.2 ~ 20 m/s (±5% of reading ±3 digits)
Sensor Temperature: -5°F ~ 175°F (±1% of reading ±1.0°F ±3 digit)
-20°C ~ 80°C (±1% of reading ±0.5°C ±3 digit)
Operating Temperature 0 ~ 50°C (32°F ~ 122°F)
Operating Humidity Less than 80% R/H
Powering 1.5V AAA x 6ea
Optional Accessories A500 RS-232 cable
A910 soft shoulder strap carrying case
