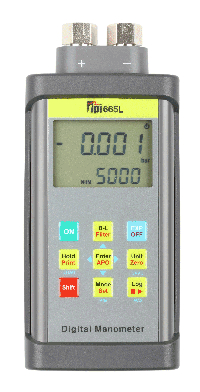

TPI 665L Dual Input Differential Manometer, Designed for Liquids, Dual input, 7 selectable units of measure, 1/4NPT fittings, data logging

Item #:

TPI-665L

Brand:

Test Products International

Our tech experts are ready to help!

Share this product:

665L Dual Input Differential Manometer, Designed for Liquids, Dual input, 7 selectable units of measure, 1/4NPT fittings, data logging by Test Products International

Differential input with +/-100psi range.
Can be used in non-corrosive liquid applications
Seven units of measure (bar, kPa, PSI, mmHg, inHg, mH2O, inH2O).
Data Logging - Record test data with time stamp and display with optional software.
PC Communication: IR to USB Interface and PC Application software (optional p/n A665)
Printing - Print test results directly to the optional A740 IR printer
Display - 5 digit dual line with backlight
Data Storage - Save up to 16 readings.
Min / Max - Records Min/Max readings
Auto Off - Conserve batteries.

Measurement Range	±101.5 psi (±7bar)
Display	5 Digit Dual line LCD with backlight
Input Type	Differential (1/4" NPT)
Resolution (max)	0.01 psi (0.001 bar) (0.1 inH2O)
Accuracy	0.2% Full scale
Repeatability:	0.1% Full scale
Mean Temperature Coefficient:	0.1% of reading per ºC
Functions:	One Touch Zero, Data Hold, Back-light, Unit Selection, Data Logging, Auto power Off, Min / Max Record, Resolution Selection
Units of Measure:	7 Units (bar, kPa, PSI, mmHg, inHg, mmH2O, inH2O)
Data logging:	5000 Data, 1sec ~ 24 hour.
Data Storage:	16 data points
Communication:	IR to USB Interface and PC Application software (optional p/n A665)
Battery Type:	AA(1.5V)*2 alkaline (MN1500, LR6)
Battery Life:	600hour (Typical)
Auto Power Off:	20 minutes (can be disabled)
Standard Accessories (Included):	two 1.5 Volt Alkaline Battery (A002), Protective Boot w/ magnets (A614)

$434.95
