TPI 706 High CO Analyzer

Item #:
TPI-706
Brand:
Test Products International

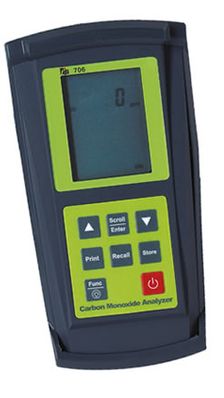

TPI 706 High CO Analyzer
$649.95
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:

706 High CO Analyzer by Test Products International

Measure up to 99,999 ppm with the TPI 706 tests forklift exhaust gases for the presence and location of carbon monoxide leaks. This instrument fits comfortably in your hand and operates with just the push of a button.

The 706 is an advanced state-of-the-art carbon monoxide (CO) gas analyzer designed to provide part per million readings from 0- 10,000 ppm. The 706 is capable of performing ambient as well as flue gas checks with its hot air probe and internal pump.

The 706 is utilizes an advanced long life electrochemical sensor that can be field calibrated and has a low replacement cost.

Features include IR printer port to print hard copy of data, 10 storage locations, Flow block indication, peak reading for test period as well as date and time.

Features

  • Pump driven for fast response
  • Store function to save up to 50 readings
  • Will not shut off if 15 ppm CO is present for increased safety
  • Push on fittings for fast and easy use
  • Optional A740 IR printer available for hard copies of test results
  • Large easy to read backlit display

Applications

  • Check forklift exhaust gases for the presence and location of carbon monoxide

Quick And Simple Set Up

All TPI analyzers feature quick and simple set up. Fast purge and the ability to perform fuel selection during start up enable tests to be performed quickly without requiring extra set-up time after initial startup. TPI analyzers also use the last selected fuel as the default setting. This feature prevents the need toperform fuel selection every time the analyzer is turned on.

  • Range: 0 ~ 9,999ppm <10,000ppm: 1.000 ~ 9.999%
  • 1 ppm sensitivity
  • Pump driven
  • Auto zero
Carbon Monoxide (CO) Measurement Range 0 – 9.999%
Accuracy ± 5ppm or 5% of reading whichever is greater
Resolution 1ppm 0 to 9999ppm 0.001% > 9999ppm
Data Storage Yes
Time/Date Stamp of Stored Data Yes
IR Printer Port Yes
Flue Probe Yes
Internal Pump Yes
Combustible Gas Leak Detection No
Backlight Yes
Alarm Audible
Power Supply 1.5V AA (3)
Dimensions 3.75"x 8" x 3" (95 x 303 x 76 mm)
Weight 1.1lbs (500g)
Warranty 3-year limited warranty 2-year sensor warranty
