TPI 708 Combustion Efficiency Analyzer Kit - 708A740

Item #:
TPI-708A740
Brand:
Test Products International
$595.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
TPI 708 Combustion Efficiency Analyzer Kit - 708A740

TPI 708 Combustion Efficiency Analyzer Kit - 708A740

$595.00

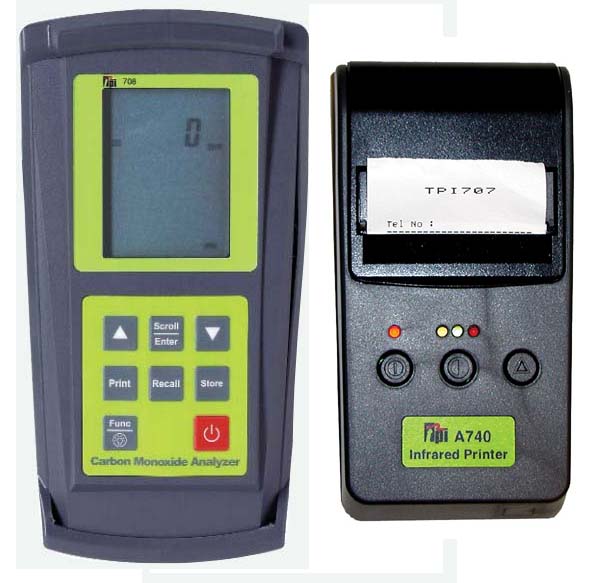

708A740 708 Combustion Efficiency Analyzer Kit by Test Products International

708 Features

  • Fast purge & fuel selection during start up
  • Work on high efficiency furnaces and oil
  • Measure CO, O2; and calculate efficiency, CO2, excess air and CO air free
  • Dual input temperature

A740 Features

  • Easy to use
  • Battery operated
  • Self test facility
  • Adjustable contrast
  • Manual paper feed
  • Maximum transmitting distance 16"(45cm)
708 Specifications:
Carbon Monoxide (CO) Measurement Range: 0 to 10,000 ppm
Resolution: 1 ppm
Accuracy: ±5ppm or 5% of reading whichever is greater
Oxygen (02) Measurement Range: 0 to 25%
Resolution: 0.1%
Accuracy: ±0.3%
Carbon Dioxide (CO2) Range: 0 to 25%
Resolution: 0.1%
Calculated Value
Nitric Oxide Measurement N/A
NOX Measurement N/A
Temperature Measurement Range: -40 to 1472°F, or -40 to 800°C
Resolution: 1°F or °C
Accuracy: (K-type) ±0.3%, ±2°F or ±1°C
Draft/Pressure Measurement Selectable Ranges: mBar,kPa, and inH2O
Ranges: -150 mBar to +150 mBar -15 kPa to +15 kPa -60 inH2O to +60 in H20
Resolution: 0.001 inH2O
Accuracy: ±0/5% fsd
Gross/Net Efficiency Range: 0 to 100%
Resolution: 0.1%
Calculated Value
CO/CO2 Ratio Range: 0 to 0.999
Resolution: 0.001
Calculated Value
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Battery Type 1.5V AA (3)
Selectable Fuels Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse
Display Type Backlit 3 line LCD
Data Storage 50 Locations
Data Logging N/A
Print Capability Yes, via optional IR printer (A740)
PC Communication N/A
Date and Time Function 24 Hour Real Time Clock
Dimensions 200mm x 90mm x 60mm
Weight 500g
Conformity BS7927 (and the draft BS7967)

A740 Specifications:
Maximum Transmitting Distance 18 inches (45cm)
Maximum Horizontal Receiving Angle ±30°
Vertical Receiving Angle -10° to + 20°
Battery Power 4 x 1.5V Alkaline battery
Adapter DC 7V / 1500mA, 50Hz, 240V (CE)
DC 9V / 1A, 60Hz, 120V (CUL)
Paper A746
Operating Temperature 32° to 122°F (0° to 50°C)
Operating Humidity 5% to 80% RH
Storage Temperature 14° to 140°F (-10° to 60°C)
