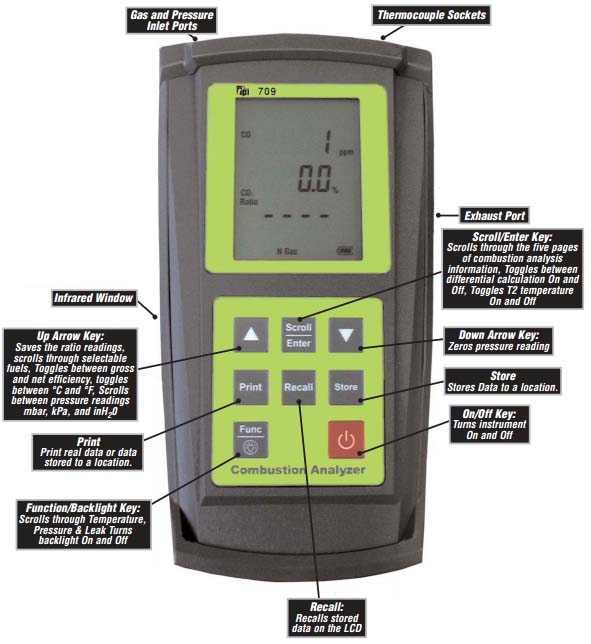

TPI 709 Combustion Efficiency Analyzer and Differential Manometer

TPI 709 Combustion Efficiency Analyzer and Differential Manometer

$549.95

709 Combustion Efficiency Analyzer and Differential Manometer by Test Products International

The carbon monoxide sensor used in TPI combustion efficiency analyzers feature an on-board filter capable of filtering NO (nitric oxide), NO2 (nitrogen dioxide) and NOX (combination of NO and NO2) to prevent cross sensitivity errors.

Use TPI analyzers to test flue gases in gas and oil fired equipment including high efficiency furnaces and condensing boilers. Measure CO, O2, and stack temperature.

Determine combustion efficiency, CO2, and CO air free. Built-in differential manometer, combustible gas detection, PC communication, data logging, and can measure NO / NOX.

Features

Using TPI analyzers to determine combustion efficiency at the time of equipment set up minimizes call backs and can be used to verify to the home owner the value of service work by showing the increase in equipment efficiency after work is performed. Efficiency calculation can also be used to generate business by demonstrating the need to improve the efficiency of equipment or to show the benefit of purchasing new equipment with higher efficiency.

Quick And Simple Set Up

All TPI analyzers feature quick and simple set up. Fast purge and the ability to perform fuel selectionduring start up enable tests to be performed quickly without requiring extra set-up time after initial startup. TPI analyzers also use the last selected fuel as the default setting. This feature prevents the need toperform fuel selection every time the analyzer is turned on.

  • High resolution 0.001 in H20 differential manometer for high efficiency and oil equipment
  • Measure CO, and temperature
  • Calculate CO2, efficiency, excess air, and CO air free
  • Pump driven for fast response
  • Will not shut off if 15 ppm CO is present for increased safety
  • Ten selectable fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse
  • Optional A740 IR printer available for hard copies of test results
  • Built-in differential thermometer
  • Store function to save up to 50 readings
  • Large easy to read backlit display

Applications

  • Tuning of residential and furnaces and domestic boilers
  • Ambient and stack testing for CO
  • CO safety measurements in and around combustion sources
  • Temperature checking, including superheat and hydronic differential temperatures
  • Dual input differential manometer
Carbon Monoxide (CO) Measurement Range: 0 to 10,000 ppm
Resolution: 1 ppm
Accuracy: ±5ppm or 5% of reading whichever is greater
Oxygen (02) Measurement Range: 0 to 25%
Resolution: 0.1%
Accuracy: ±0.3%
Carbon Dioxide (CO2) Range: 0 to 25%
Resolution: 0.1%
Calculated Value
Nitric Oxide Measurement N/A
NOX Measurement N/A
Temperature Measurement Range: -40 to 1472°F, or -40 to 800°C
Resolution: 1°F or °C
Accuracy (K-type): ±0.3%, ±2°F or ±1°C
Draft/Pressure Measurement Selectable Ranges: mBar,kPa, and inH2O
Ranges: -150 mBar to +150 mBar -15 kPa to +15 kPa -60 inH2O to +60 in H20
Resolution: 0.001 inH2O
Accuracy: ±0/5% fsd
Gross/Net Efficiency Range: 0 to 100%
Resolution: 0.1%
Calculated Value
CO/CO2 Ratio Range: 0 to 0.999
Resolution: 0.001
Calculated Value
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Battery Type 1.5V AA (3)
Selectable Fuels Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse
Display Type Backlit 3 line LCD
Data Storage 50 Locations
Data Logging N/A
Print Capability Yes, via optional IR printer (A740)
PC Communication N/A
Date and Time Function 24 Hour Real Time Clock
Dimensions 200mm x 90mm x 60mm
Weight 500g
Conformity BS7927 (and the draft BS7967)
