TPI 9050 Industrial Accountic Imager

9050 Industrial Accountic Imager by Test Products International

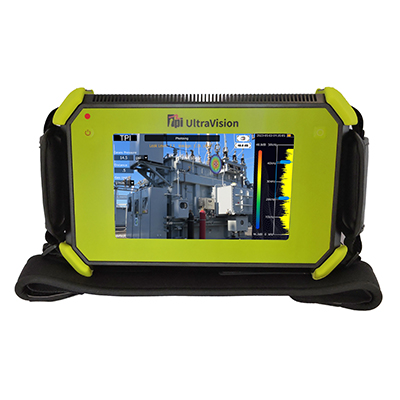

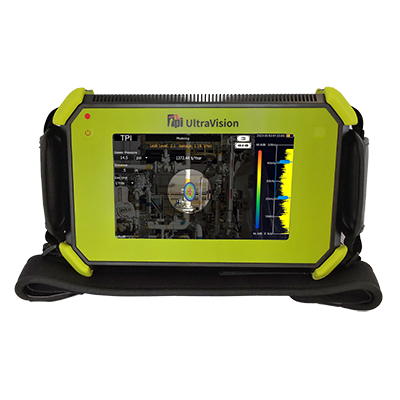

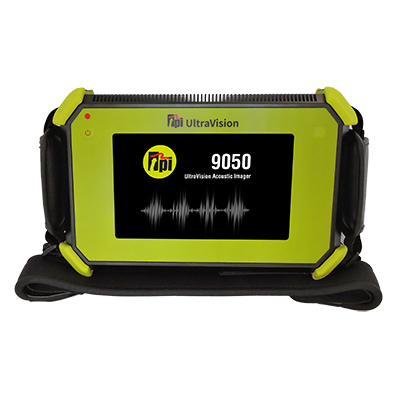

The TPI 9050 UltraVision Industrial Acoustic Imager supports audible and ultrasonic frequencies.

The 9050 uses microphone array beam forming technology to acquire sound source distribution data, and collect video images in real time with a high-definition camera. By integrating the sound source distribution data with the video image, the changing sound source is dynamically presented on the display screen.

The UltraVision Industrial Acoustic Imager helps you quickly detect potential pressurized gas leaks and vacuum leaks in noisy industrial environments. Used in power systems, it can help you quickly identify potential partial discharge fault points.

The 9050 acoustical imager is made of an aluminum alloy shell, which is strong and durable and can adapt to the complex and changeable working environment.

The UltraVision is simple and convenient to operate and can be used to quickly find faults. Only two parameters need adjustment, the test frequency range and test dynamic range, to meet the vast majority of test requirements.

The 9050 supports camera mode, video mode, and data recording to provide job site is flexibility. The large capacity TF data memory card can be expanded, and test results can be exported and reported quickly.

Quickly and Visually Identify:

• Bad Rolling Element Bearings and Lubrication Problems.
• Electrical Panel and wiring connection issues.

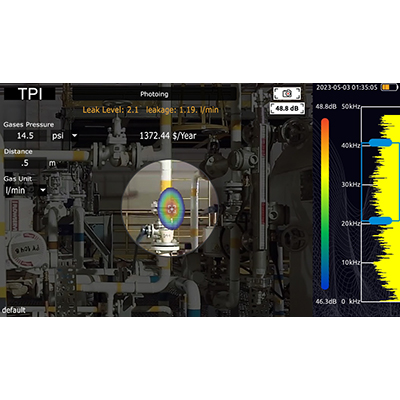

• Air, Steam, Vacuum, and Gas Leaks with an immediate estimate of the annual cost of the leak.
• As easy to use as taking a picture
• Problem Areas – Visually Identified as One Views the Screen
• Minimal Training
• The Most Cost Effective Solution that Quickly and Accurately Identifies the Problem Source and Location

Applications

• Petrochemical – Leak detection of process gases
• Natural Gas – Detect natural gas and nitrogen leaks
• Metallurgical Industry – Locate air, nitrogen, oxygen, and carbon dioxide leaks
• Power Generation – Find steam, hydrogen, and ammonia leaks

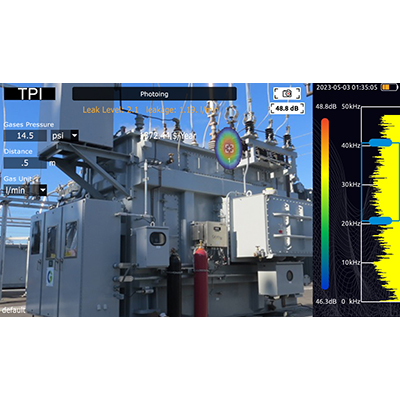

• Partial Discharge Detection – Test live circuits for partial discharge
• Automotive – Detect sounds generated irregular vibration
• Electrical – Detect abnormal circuit noise and vibration from components like capacitors, inductors, and transformers.
