TPI 9075 Wireless Accelerometer with Bluetooth

Item #:

TPI-9075

Brand:

Test Products International

Our tech experts are ready to help!

Share this product:

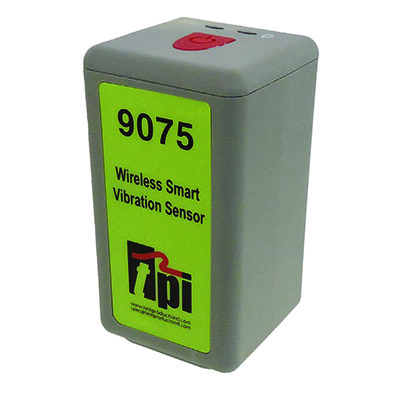

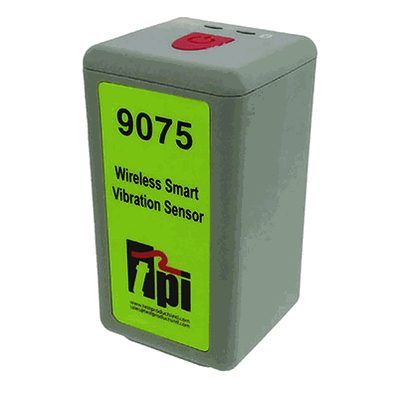

9075 Wireless Accelerometer with Bluetooth by Test Products International

Remote Vibration Readings with the Free View App
Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition

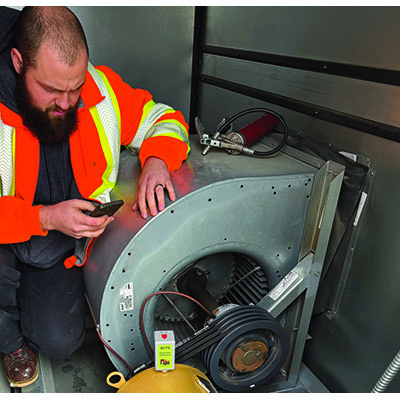

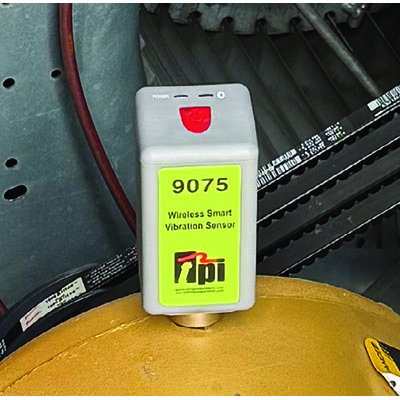

Place the sensor on the asset, potentially behind a safety gate, up a height or hard to reach areas, then stand back and see the readings in the palm of your hand.
Overall machine and bearing conditions: vibration values are displayed with colour-coded alarm levels for ISO values and Bearing Damage (BDU).
Identify complex issues: 800-line spectrum with zoom and cursor.

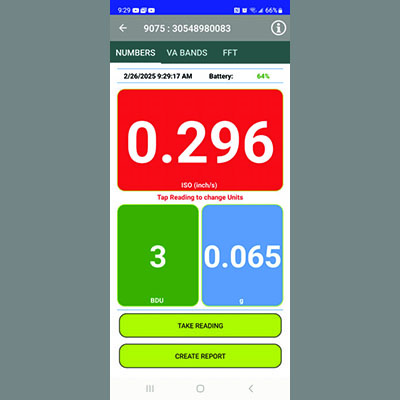

View Readings as ISO, BDU, Displacement and Total (g)
View the FFT, VA Bands, & Time Waveform

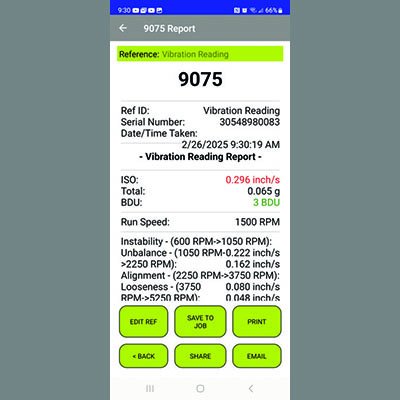

Create reports & share them using e-mail, or file sharing such as OneDrive, Google Drive, Dropbox etc�..
Wireless Charging
Upgrade Kits available to buy with Android Tablet running the Ultra App or C-Trend Software Including Trending, Global Connectivity and much more!

Sampling Frequency	10kHz Fmax and 51,200 lines
A/D Converter	24 bit A/D
Measurement Range	2/10Hz to 1kHz ISO standard for assessing Unbalance, Misalignment or Looseness 1kHz to 10kHz BDU range for identification of Bearing Condition
Sensor Connection	Bluetooth 5
Dynamic Range	108dB
Power Supply	Wireless Charging with Long Battery Life
IP Rating	IP 67
Frequency Range	2Hz to 10kHz
BDU - Bearing Noise - Frequency Range	1kHz to 10kHz
Resolution	100 to 800 lines with zoom
TPI View Screen Cursor	Single
TPI View VA Bands	Yes, Instability, Unbalance, Alignment, Looseness
TPI View FFT Display	Yes

$1,699.95
