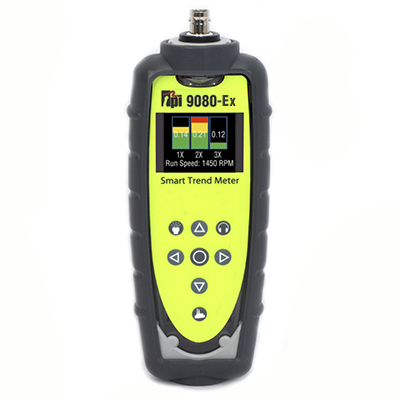

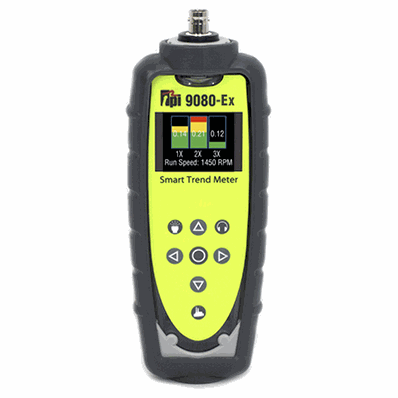

TPI 9080EX Intrinsically Safe Vibration Analyzer

9080EX Intrinsically Safe Vibration Analyzer by Test Products International

The Vib Meter 9080-Ex and VibTrend is the latest easy to use high specification maintenance tool offering high level functionality and capability at extremely low cost.

The 9080-Ex Intrinsically Safe Vibration Analyzer & Smart Trend Meter is a simple to use vibration monitoring and analysis tool that allows easy display of vibration signals. The analyzer automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment and looseness.

The system is designed to enable a user to take vibration measurements from assets (e.g. pumps, motors, fans and bearings). The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored.

The 9080-Ex Vibration Analyzer & Smart Trend Meter also has an optional strobe attachment for determining machine speed and optional Bluetooth connected headphones for listening to bearing noise.

• Find machine faults before they stop your machine
• Increase productivity and lower maintenance costs
• Industry approved ear defenders with built-in Bluetooth headphones are also available to let you listen to the bearing noise – or even listen to your phone!

Features:

• Collect data
• Trend data using VibTrend software
• Intrinsically Safe cable mounted accelerometer with magnet
• Built-in Bluetooth communication capability
• USB docking station to download to a PC
• ISO built-in Alarms
• Easily identify bearing problems with BDU Reading
• Easily identify problems with built-in band filters: 1X (unbalance); 2X (misalignment); 3X (looseness)
• 800 line FFT (spectrum)
• Listen to bearing noise with optional Bluetooth headphones
• Ruggedized IP67 case
• 1-year Limited Warranty
