TPI 9085-EX Intrinsically Safe Smart Vibration & Temperature Analyzer

9085-EX Intrinsically Safe Smart Vibration & Temperature Analyzer by Test Products International

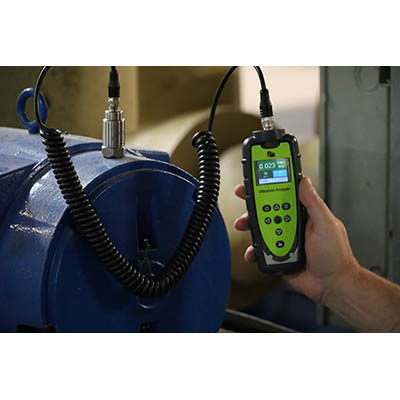

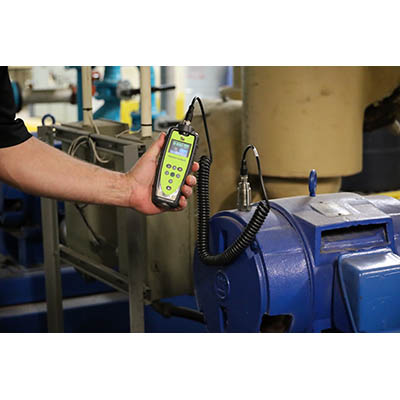

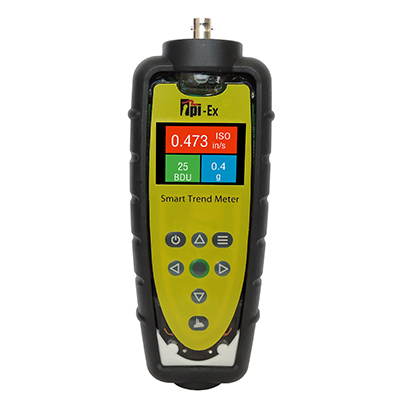

The TPI 9085-Ex is a simple, easy to use, low cost vibration meter that records, analyzes and displays vibration, bearing wear & temperature at the push of a button.

Benefits:

• Find machine faults before they stop your machine
• Increase productivity and lower maintenance costs
• Measure temperature to determine if a bearing requires lubrication, preventing wear and failure
• Use temperature measurement to confirm a high BDU reading (bearing noise) is caused by a worn bearing and not noise from pump cavitation, gearbox noise, or a nearby noisy bearing
• Temperature measurement aids in diagnosing a tight or loose housing or shaft fit on a bearing
• Measuring temperature assists with potential electrical issues on motors such as winding insulation deterioration, single phasing, broken rotor bars etc.

Supplied in Soft Carry Case with space for 9085-Ex, charger, cord, Accelerometer Cable & Accelerometer, Docking Cradle & USB Cable.

Features:

• Collect vibration and temperature data
• Practically instantaneous readout of actual surface temperature
• Trend data using C-Trend II software

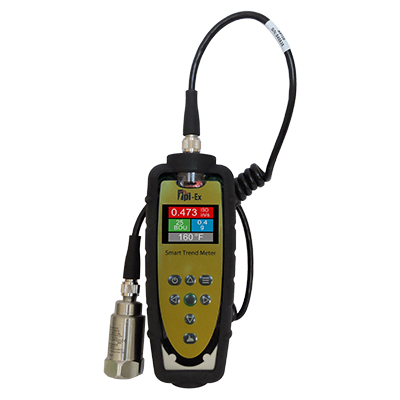

• Standard Cable mounted accelerometer with Built in magnet and temperature sensor
• USB docking station to download to a PC
• ISO built-in Alarms
• Easily identify bearing problems with BDU Reading
• Easily identify problems with built-in band filters: 1X (unbalance); 2X (misalignment); 3X (looseness)
• 800 line FFT (spectrum)
• Wireless charging
• Ruggedized IP67 case
• 3-year Limited Warranty
