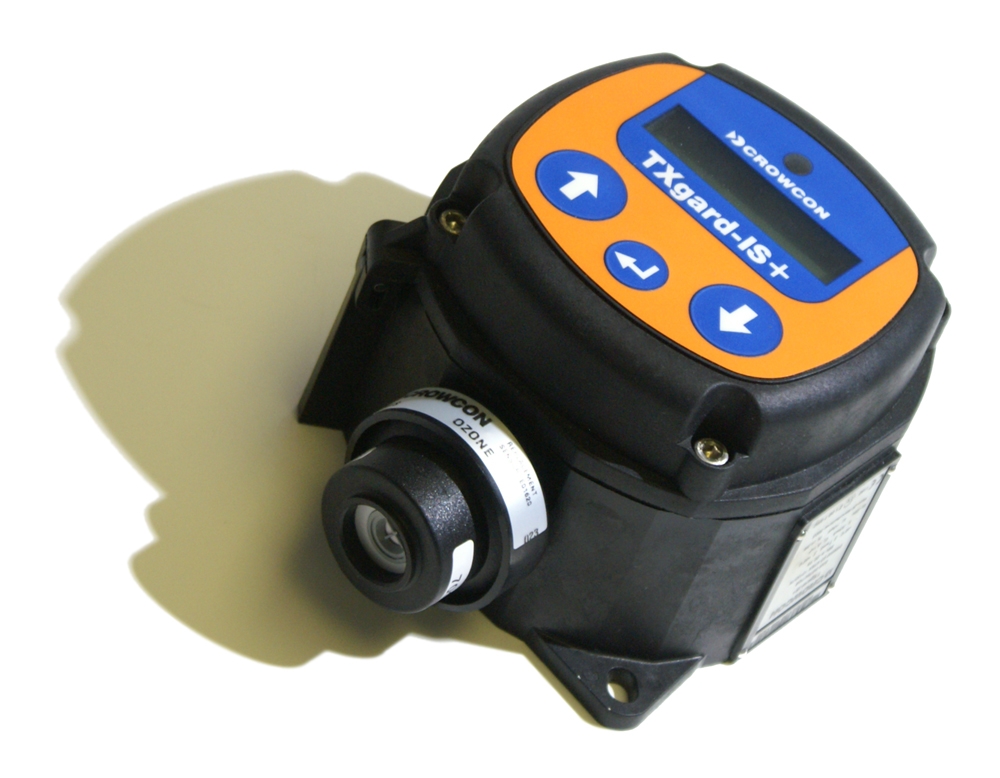

Crowcon TXgard-IS+ Toxic Gas Detector with Display, Hydrogen Sulphide 0-100 ppm
Item #:
TXISP-H2S-SIDE-Sira-100
Brand:
Crowcon
Share this product:
TXISP-H2S-SIDE-Sira-100 TXgard-IS+ Toxic Gas Detector with Display, Hydrogen Sulphide 0-100 ppm by Crowcon
TXgard-IS+ is a Intrinsically Safe (I.S.) toxic and oxygen gas detector with local LCD display. A wide choice of sensors are available for use in a variety of applications.
Features:
Non-intrusive calibration
- Calibration can be performed locally without the need for hot work permits
- Local display and buttons enable calibration without opening the junction box
Flexible output options
- A two-wire 4-20mA signal is provided
- The output can be forced up without applying gas to enable simple checking of control systems and alarms.
Rugged and reliable
- Constructed using highly durable GRP to provide good impact resistance
- Ingress protection to IP65 as standard, IP66 with accessory
- IEC61508 SIL compliant
| Size | 160h x 123w x 92d (mm) |
| Weight | 0.7 kg |
| Enclosure material | Junction box: Carbon loaded nylon Sensor housing: ABS plastic |
| Ingress protection | IP65, IP66 with weatherproof cap |
| Cable entries | 1 x M20 or 1/2”NPT (with adaptor) |
| Power | 10.8-30Vdc, 4-20mA loop-powered |
| Operation temperatures | -20oC to +55oC (-4oF to 131oF) |
| Humidity | 15 to 90% RH non-condensing |
| Relays (optional) | N/A |
| Display | 2-line, 16 character LCD |
| Calibration method | Via push-buttons |
| Electrical output | 2-wire 4-20mA (current sink) |
| Terminals | Suitable for up to 2.5mm2 cable |
| Sensor type | Electrochemical |
| Repeatability | +/- 2% FSD* |
| Zero drift | +/- 2% FSD, 6 months* |
| Response time | Contact Crowcon for a full list of sensor response times |
| Hazardous area zones | Zones 0, 1, 2 or Zones 20, 21, 22 (when connected via an isolation device) Division 1 or 2 |
| Gas Type | LTEL (ppm) | STEL (ppm) | Ranges Available |
| Ammonia (NH3) | 25 | 35 | 50, 100 ,1000 ppm |
| Carbon Monoxide (CO) | 30 | 200 | 250, 500 ppm |
| Chlorine (Cl2) | - | 0.5 | 5, 10, 20 ppm |
| Chlorine Dioxide (ClO2) | 0.1 | 0.3 | 1 ppm |
| Hydrogen (H2) | N/A | N/A | 2000, 20000ppm (50%lel) |
| Hydrogen Cyanide (HCN) | - | 10 (MEL) | 25 ppm |
| Hydrogen Flouride (HF) | 1. 8 | 3 | 10 ppm |
| Hydrogen Sulphide (H2S) | 5 | 10 | 5, 25, 50, 100, 200 ppm |
| Nitrogen Dioxide (NO2) | 1 | 1 | 10 ppm |
| Ozone (O3) | - | 0.2 | 1 ppm |
| Oxygen (O2) | - | - | 25% Vol |
| Phosgene (COCL2) | 0.02 | 0.06 | 1 ppm |
| Phosphine (PH3) | 0.1 | 0.2 | 2 ppm |
| Sulphur Dioxide (SO2) | 1 | 1 | 10, 20 ,30 ppm |
