AccuTrak VPE-1000 Digital Ultrasonic Detector

AccuTrak VPE-1000 Digital Ultrasonic Detector

$2,024.00

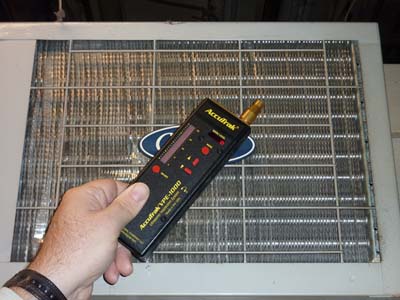

VPE-1000 Digital Ultrasonic Detector by Superior AccuTrak

When powerful performance is needed and budgets are limited, choose the versatile Superior AccuTrak® VPE-1000. It is the first low cost digital ultrasonic detector, offering extraordinary features at a fraction of the cost of other ultrasonic instruments. The AccuTrak® model VPE-1000 is extremely sensitive to the ultrasonic sound of leaks and friction in industrial systems. By using a technique called "heterodyning" it translates the ultrasound to a lower frequency which our ears can interpret. The AccuTrak® is so sensitive it can hear the blink of an eye, yet most background noise will not interfere with detection accuracy. Patented technology uses a microcomputer and digital circuitry making AccuTrak® the most accurate and repeatable ultrasonic inspection instrument available in its class.

Applications:

The VPE-1000 is perfect for schools, hospitals, hotels, and other large institutional or industrial environments. Use for a variety of leak detection and plant maintenance applications.

  • Leak Detection: Air, Vacuum, Refrigerants; ANY GAS!
  • Steam Traps: Detect live steam loss in seconds!
  • Valves: Detect/hear internal leakage in check, ball, needle, gate or any type of valve! Diagnose thermal expansion valves in just five minutes!
  • Bearings: Hear wear and lubrication problems before damage is done!
  • Electric Arc and Corona: Inspect circuit breakers, relays, and buss bars! Check for corrosion on contacts and proper insulation!
  • Pneumatics and Hydraulics: Inspect controls, hoses, tools, fittings and internal cylinders with ease!
  • Vibration: Detect the ultrasonic sound generated by excessive friction!
  • Fan Belts

Features:

  • Digital LED Indicators: Both alphanumeric and bar-graph!
  • Digital Peak Hold: Holds highest level for easy readability!
  • Separate Volume/Sensitivity: Independent controls allow you to "zoom" into sounds in noisy areas!
  • Dual Sensors: Each with excellent frequency response, and independent settings

Includes everything you need!

  • Detector
  • Touchprobe & waveguide attachments
  • Comfortable over the ear headset
  • Battery
  • Owners manual
  • Instructional video
  • Hard case
Mechanical
Shape Parallelepiped
Dimensions (LWD) 7.075" (17.97cm) X 2.4" (61mm) X .875" (22.22mm)
Overall Length 8.185" (20.78cm)
Body Materials Aluminum and ABS
Body Finish Anodized, Gold (MIL-A-8625 Type3 Class2), Black ABS
Connector 3.5mm Stereo
Top Label Velvet Lexan, Back Printed
Weight 0.5lb (233gr) Includes Battery
Electrical
Airborne Sensor Sensitivity -80db/V-µbar
Detection Performance* (Conditions) 5mil ID @ 5PSI From 50' (60db Ambient Sound Level-No In-band Sound)
Ultrasound Converter types Digitally Controlled Heterodyne
Frequency response, AirBorne 34kHz-42kHz
Frequency response, Touch Probe 16kHz-24kHz
Heterodyne Oscillator Digital
Heterodyne Filter 4kHz
Controls Controls
Digital Sensitivity Control 256 Steps
Digital Volume Control 256 Steps AUDIO ZOOM
Output, Audio 0Hz to 4kHz
Output, Visual 20 Element Bar Graph with PEAK-Hold and Separate Alphanumeric Digital Display allowing simultaneous readings and comparisons.
Signal Output Heterodyne
ON Indicator Digital Display
Low Battery Indicator Digital Display, BATT
Insufficient Battery Charge Automatic Shut-Down
Battery Type 9 Volt
Run Time 55-80 hrs
