Oakton Sensorex TX2000 1/4-DIN pH/ORP Transmitter/Controller; 100-240 VAC - WD-19066-06
Item #:
WD-19066-06
Brand:
Oakton Instruments
Share this product:

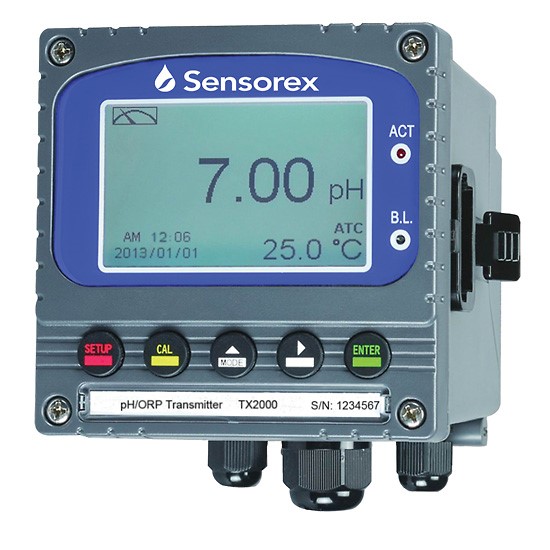

WD-19066-06 Sensorex TX2000 1/4-DIN pH/ORP Transmitter/Controller; 100-240 VAC by Oakton
This full-featured pH/ORP transmitter/controller is designed for drinking water, wastewater, and general-purpose applications. The analyzer offers a wide range of features: two adjustable high/low relays, one wash control, and two isolated 4 to 20 mA outputs (one for the selected measurement and one for temperature), and enhanced measurement stability with sample averaging functionality. Automatic calibration with preset standards for up to three buffers. Calibration data can be password protected with a programmable security code.
- Large, graphical LCD with auto-sense backlight and contrast can be easily viewed in all lighting conditions
- Easy menu-driven operation with continuous diagnostic tests to ensure proper operation
- Dual diaplay with measurement and temperature
- Backup memory retains settings during power outage
- Automatic temperature compensation
- Up to 3-point calibration with USA or NIST buffers
- Panel- or wall-mount NEMA 4X, IP65 rated housing
Model |
TX2000 |
|
Measuring modes |
pH / ORP / Temp. |
|
Ranges |
pH |
-2.00~16.00 pH |
ORP |
-1999~1999 mV |
|
Temp. |
-30.0~130.0 °C |
|
Resolutions |
pH |
0.01 pH |
ORP |
1 mV |
|
Temp. |
0.1 °C |
|
Accuracy |
pH |
±0.01 pH ± 1 Digit |
ORP |
±0.1% ± 1 Digit |
|
Temp. |
±0.2°C± 1 Digit |
|
Temperature Compensation
|
NTC30K/ PT 1000 auto temperature compensation |
|
Manual adjustment temperature compensation |
||
Calibration mode |
Tech. NIST. Asymmetry mode, up to three point calibration |
|
Ambient Temp. |
0~50°C |
|
Storage Temp. |
-20~70°C |
|
Input Impedance |
> 1012 Ω |
|
Display |
Large LCD display with environment light sensor auto/manual illumination function |
|
Analog output 1 |
Isolated DC 0/4~20mA corresponding to main measurement, max. load 500Ω |
|
Analog output 2 |
Isolated DC 0/4~20mA corresponding to Temp., max. load 500Ω |
|
Settings |
Contact |
RELAY contact, 240VAC 0.5A Max.(recommend) |
Activate |
Two sets of individual HIGH or LOW programmable control |
|
Wash |
RELAY contact: ON 0~99min. 59sec. / OFF 0~999hr 59min. |
|
Voltage Output |
DC±12V, 1W max. |
|
Certification |
IP65 |
|
Power Supply |
100V~240VAC±10%, 4W max., 50/60Hz |
|
Installation |
Wall or Pipe or Panel Mounting |
|
Dimensions |
96m x 96mm x 132mm (HxWxD) |
|
Cut off Dimensions |
93 mm x 93 mm (HxW) |
|
Weight |
0.5Kg |
|
