Oakton Eutech CON 200 Conductivity 1/8-DIN Controller with NIST Traceable Certificate of Calibration - WD-19505-72

Oakton Eutech CON 200 Conductivity 1/8-DIN Controller with NIST Traceable Certificate of Calibration - WD-19505-72

$559.00

Discontinued

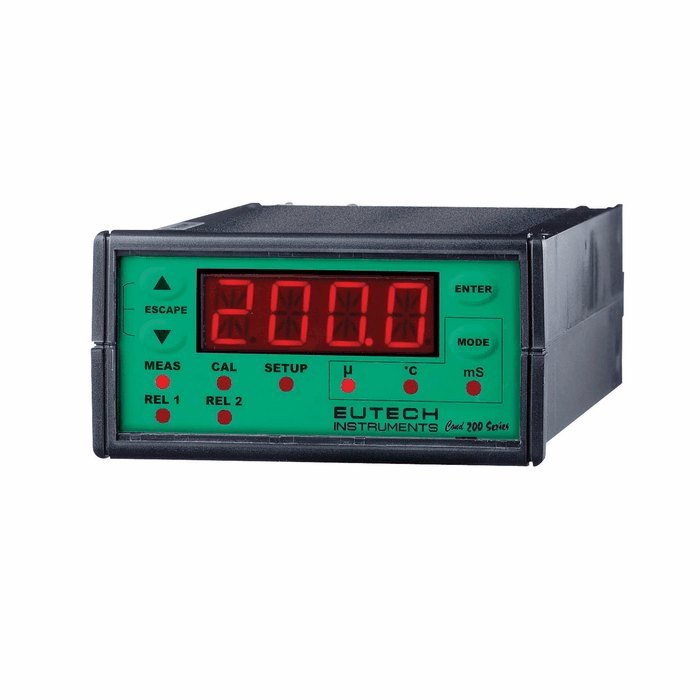

WD-19505-72 Eutech CON 200 Conductivity 1/8-DIN Controller with NIST Traceable Certificate of Calibration by Oakton

Scrolling, 14-segment LED guides user through set-up functions

These sturdy, compact controllers withstand voltage fluctuations from 85 to 250V AC/DC! They are ideal for installation were electrical fluctuations are common, or install them in series throughout areas of differing electrical conditions.

Advanced setup mode lets you select cell constant, temperature coefficient, manual or automatic temperature compensation, hysteresis band and more. It also lets you view previous calibration points.

The 1/8 DIN housing is ready to install in standard panels and NEMA rated boxes. Includes mounting hardware; accepts probes with stripped ends and Pt 100 RTD ATC elements.

  • Two set point, two SPDT relay for on/off control
  • Reliable power supply from 85 to 250 V AC/DC withstands voltage fluctuations
  • Two separately adjustable hysteresis bands prevents rapid contact switching at either set point
  • Adjustable temperature coefficient and selectable cell constants
  • Push button one-point calibration; offset temperature calibration
  • Galvanically isolated 4-20 mA output for remote monitoring or hard copy recording
  • Two level password protection for calibration and setup parameters
  • Display toggles between conductivity and °C readings
  • Removable terminal strips offer quick and easy connections
  • Battery back-up of memory maintains set-up if power fails
Measures Conductivity, °C
Conductivity Range 0.00 to 20.00 µS, 0.0 to 200.0 µS, 0 to 2000 µS, 0.0 to 10.00 mS, 0.00 to 20.00 mS, 0.0 to 200.0 mS
Conductivity Resolution 0.01 µS; 0.1 µS; 1 µS; 0.01 mS; 0.1 mS
Conductivity Cell constant 0,1, 1, or 10
Calibration one point, slope calibration
Control accuracy ±1% full-scale
Temperature Range -10.0 to 110.0 °C
Temperature Resolution 0.1°C
Temperature Accuracy ±0.5°C
Temperature Calibration offset up to ±10°C
Control type on/off
Number of inputs one
Number of set points two
Output Control 2 SPDT nonpowered relays, 6A at 110 VAC; 250 VAC max.
Output Current 4-20 mA output, isolated
Hysteresis 0 to 10% of range, adjustable for each set point
Electrical isolation yes, galvanically
Temperature Sensor Pt 100
Temperature Compensation automatic or manual, from 0 to 100°C
Password protection two levels
Display 4-digit, 14 segment scrolling LED
Operating Temperature 0 to 50°C
Housing 1/8 DIN
Dimensions 1.9" x 3.8" x 6" (4.8 x 9.6 x 1.5 cm)
Shipping weight 0.5 lb (0.2 kg)
