Oakton Cole-ParmerŪ In-Line pH Probe, DJ/PVDF/100Ohm RTD/10'; Plug/BNC - WD-27001-70

Item #:
WD-27001-70
Brand:
Oakton Instruments
Oakton Cole-ParmerŪ In-Line pH Probe, DJ/PVDF/100Ohm RTD/10'; Plug/BNC - WD-27001-70
$222.60
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Oakton Cole-ParmerŪ In-Line pH Probe, DJ/PVDF/100Ohm RTD/10'; Plug/BNC - WD-27001-70

Oakton Cole-ParmerŪ In-Line pH Probe, DJ/PVDF/100Ohm RTD/10'; Plug/BNC - WD-27001-70

$222.60

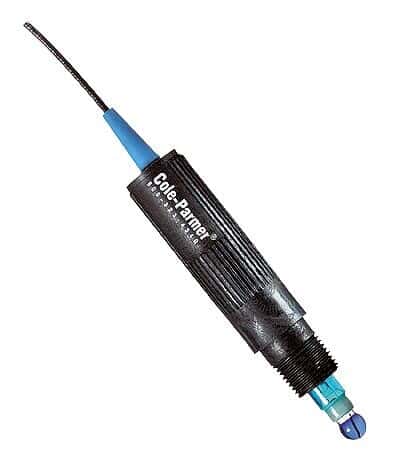

WD-27001-70 Cole-Parmer® In-Line pH Probe, DJ/PVDF/100Ohm RTD/10'; Plug/BNC by Oakton

In-line electrodes operate from 32 to 212°F (0 to 100°C) and have a chemical-resistant PVDF housing with a 1/2" NPT(M) thread. Housing measures 4" x 15/16" diameter. Electrode extends 1" beyond housing. Maximum pressure 100 psi. Measure pH from 0 to 13.

Note: 100 Ω RTD ATC elements are platinum and conform to DIN curve 43760. ATC connector is miniature audio plug.
Connector for the 1 kΩ RTD and the 3 kΩ Balco ATC elements is a spade lug.
Connector for 100 kΩ

  • Choose from single-junction or double-junction designs
  • Options of BNC or stripped and tinned ends
Electrode Type Double junction
Electrode Body Material PVDF
Min pH (pH) 13
Max Temperature (° C) 80
Temperature Compensation Yes
ATC Connector Mini-audio plug
ATC Element 100 Ω Pt RTD
Connector BNC
Description In-Line pH Probe, DJ/PVDF/100Ohm RTD/10'; Plug/BNC
