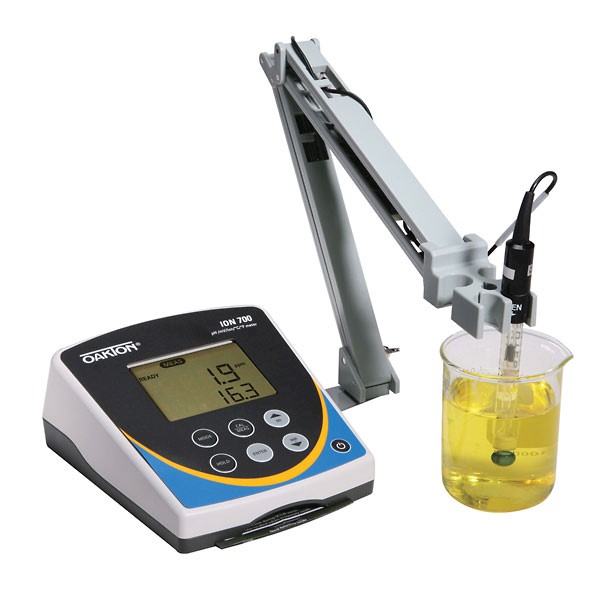

Oakton pH/Ion 700 Ion 700 Benchtop Meter with Stand and NIST-Traceable Calibration - WD-35419-26
Item #:
WD-35419-26
Brand:
Oakton Instruments
Share this product:
WD-35419-26 pH/Ion 700 Ion 700 Benchtop Meter with Stand and NIST-Traceable Calibration by Oakton
Oakton benchtop 700-series meters are designed for use in crowded laboratory settings. Compact footprint of less that 6" x 7" (16 x 18 cm) conserves valuable space, while the large, dual-display LCD provides excellent visibility—even from a distance.
Ion 700 meter measures pH, mV, relative mV, ion concentration and temperature. Automatic temperature compensation (ATC) maintains reading accuracy even with fluctuating temperatures. Models feature five-point pH calibration with automatic buffer recognition for both USA (pH 1.68, 4.01, 7.00, 10.01, 12.45) and NIST (pH 1.68, 4.01, 6.86, 9.18, 12.45) pH buffers. Meters additionally feature ion concentration calibration of up to 5 points.
Meter features include Auto-Hold, selectable °F or °C measurement, and easy recall of electrode slope or offset. The convenient pull-out quick reference card keeps procedures handy at all times. Use 700-series meters with any pH, ORP, or ISE electrodes with a BNC connector.
As always, our waterproof meters are IP67-rated for both dust and water intrusion. Even with no probes attached!
- Compact footprint is over 40% smaller than other benchtop meters
- Large display permits easier readout viewing
- Datalogging allows you to store and recall up to 100 data sets
| pH | Range | -2.00 to 16.00 pH |
| Resolution | 0.01 pH |
|
| Accuracy | ± 0.01 pH |
|
| Calibration Points | Up to 5 points with Auto-buffer recognition |
|
| Buffer Options | USA : pH 1.68, 4.01, 7.00, 10.01,12.45 NIST: pH 1.68, 4.01, 6.86, 9.18 ,12.45 |
|
| Slope Display | Yes (with offset) |
|
| mV | Range | ± 2000 mV |
| Resolution | 0.1 mV (± 199.9 mV), 1 mV beyond ± 200 mV |
|
| Accuracy | ± 0.2 mV (± 199.9 mV), ± 2 mV beyond ± 200 mV |
|
| Offset Adjustment | Up to ±150 mV |
|
| Temperature | Range | 0.0 to 100.0 ºC / 32.0 to 212.0 ºF |
| Resolution | 0.1 ºC / ºF |
|
| Accuracy | ± 0.3 ºC/± 0.5 ºF (0 to 70 ºC) |
|
| Compensation | Automatic or Manual (0 to 100 ºC / 32 to 212 ºF) |
|
| Calibration | Offset in 0.1 º increments; Offset range: ± 5.0 ºC / 9.0 ºF |
|
| Ion | Range (Ion 700 only) | 0.01 to 2000 ppm ( ± 2000mV) |
| Resolution (ppm) | 0.01/ 0.1/1 ppm |
|
| Accuracy | ±0.5% FS (mono-valent) ±1.0% Full Scale (di-valent) |
|
| Calibration Points | From 2 to 5 consecutive points; 0.1, 1.0, 10.0, 100.0 or 1000.0 ppm |
|
| Slope Range | 15 mV/decade to 90 mV/decade |
|
| Memory | 100 data sets |
|
| Inputs | BNC, ATC, Reference (Half-cell) |
|
| Power | AC/DC 9V, 6W Adapter (100/240 VAC, 50-60Hz) |
|
