Oakton ION 100 Portable Ion Meter Kit with Case and pH/Temperature Probe - WD-35613-68
Item #:
WD-35613-68
Brand:
Oakton Instruments
Share this product:
WD-35613-68 ION 100 Portable Ion Meter Kit with Case and pH/Temperature Probe by Oakton
The new addition to the Environmental Express Oakton product line features updates to measuring water quality easier and faster. The larger LCD display is 2.75 in. by 2.0 in. for a better viewing angle, and has indicators for battery life, stability, and calibration. The ION 100 meter measures pH, mV, ion concentration of 16 commonly measured ions, and temperature.
The microprocessor-based meter features automatic calibration, automatic temperature compensation, function setup, self-diagnostics, automatic power-off, and low voltage display. The meter uses advanced digital processing technology, intelligently improving the response time and accuracy of your measurements. Easily switch units among pX, mol/L, and mg/L (ppm).
- Measured parameter and temperature shown on display at same time
- Stability, calibration, and low-battery indicators
- Display filter improves measurement, speed, and accuracy
- mV mode allows you to check electrode calibration and performance
- ±1000 mV range is compatible with virtually all ISE electrodes
- Waterproof and dust-resistant IP57 rating – great for use under harsh environments
INCLUDES
Meter includes three AA batteries

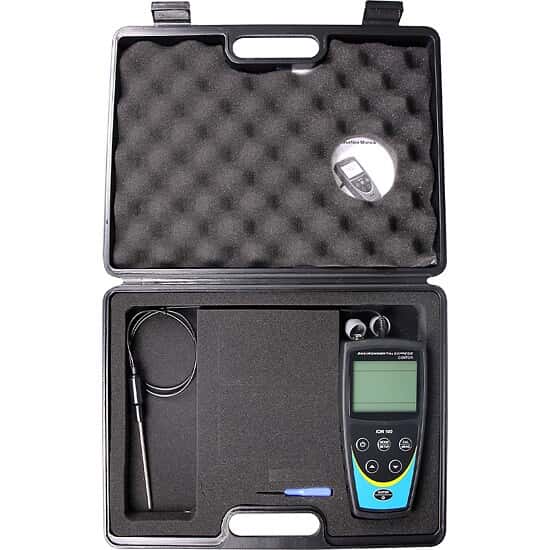

ION 100 portable meter, temperature probe, and carrying case
| Meter Type | pH, mV, Ion, temperature |
| Display type | LCD |
| Connections | BNC & Φ2.5 socket |
| Min pH (pH) | 0 |
| Max pH (pH) | 14 |
| pH Resolution | 0.01/0.1 pH |
| pH Accuracy | ±0.01 pH |
| Calibration | 1 to 3 points automatic |
| Min mV (mV) | -1000 |
| Max mV (mV) | 1000 |
| mV Resolution | 0.1 mV from –200 to 200 mV; 1 mV remaining |
| mV Accuracy | ±0.2% full-scale |
| Min ISE | 0 pX, 0 mol/L, 0 ppm (mg/L) |
| Max ISE | 0.00 to 10.00 pX; 0 to 1999 ion concentration |
| ISE Resolution | 3-4 significant digits |
| ISE Accuracy | ±1.0% full-scale |
| Min Temperature (° C) | 0 |
| Max Temperature (° C) | 100 |
| Min Temperature (° F) | 32 |
| Max Temperature (° F) | 212 |
| Temperature Resolution | 0.1°F/°C |
| Temperature Accuracy | ±0.5°C±1 digit |
| Temperature compensation | 0 to 100°C (manual or automatic) |
| Waterproof | IP57 |
| Battery | 3 AA batteries (1.5 V) |
| Battery life (hr) | 400 |
| Length (cm) | 9.1 |
| Width (cm) | 19 |
| Height (cm) | 3.3 |
| Width (in) | 7 31/64 |
| Length (in) | 3 37/64 |
| Height (in) | 1 19/64 |
| Stirring Control | No |
| NIST Calibration Included | No |
| Probe Included | Temperature (ATC) |
| Accessories Included | Carrying case |
| Description | Oakton ION 100 Portable Ion Meter Kit with Case and Temperature Probe |
