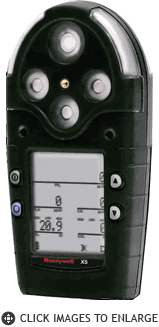

Honeywell Analytics X5 5-Gas Detector in any configuration - X5

Item #
Honeywell Analytics
Oxygen Sensor
Combustible Sensor
Interchangeable Toxic 1 Sensor
Interchangeable Toxic 2 Sensor
Battery Option
Sampling Method
Case Color

Send Page to Friend

X5 5-Gas Detector

Honeywell Analytics X5 Series portable gas detectors simultaneously monitor up to five atmospheric hazards. A wide selection of individual electrochemical toxic sensors is available, along with optional IR sensor for carbon dioxide (% CO2) and PID sensors for detecting volatile organic compounds (VOCs). The X5 has data-logging capabilities and is compatible with MicroDock II, Honeywell’s automatic test/calibration docking station.

Compact and lightweight, the X5 activates audible, visual and vibrating alarms in the event of a low, high, TWA or STEL alarm condition. Highly configurable to suit a range of applications, Honeywell Analytics X5 comes as a diffusion or pumped instrument with either alkaline or Lithium Polymer rechargeable hot-swappable battery pack. Standard features include confidence beep, automatic calibration, full function self test, and an extended selection of user-settable field options.

PID Detection

The X5’s photoionization detection option monitors VOCs that present potential hazards in work environments. VOCs, which can often evaporate at room temperature, include substances such as solvents, paint thinners, benzene, butadiene, hexane, toluene, as well as vapors associated with fuels such as gasoline, diesel, heating oil, kerosene, and jet fuel. The Honeywell Analytics’ X5 integrated photoionization detector (PID) enables sensitive broad spectrum monitoring of volatile organic compounds.

Compact, Rugged & Practical

  • Detects VOCs (PID), H2S, CO, O2, SO2, PH3, NH3, NO2, HCN, CI2, CIO2, O3 , CO2 and combustibles
  • Small, lightweight design
  • Water-resistant, concussion-proof enclosure
  • Records TWA, STEL and maximum exposures to gas and displays readings on command

Excellent Performance Features

  • 0 - 1000 ppm measurement of VOCs (Volatile Organic Compounds)
  • Optional integral pump for remote sampling
  • Datalogging and multi-language support in English, French, German, Spanish and Portuguese
  • Optional confined space kits
  • Compatible with Honeywell Analytics MicroDock II automated test and calibration station

Demanding Alarms

  • Audible, vibrating and visual alarms
  • Four alarm levels: instantaneous Low and High Alarm for all gases, TWA (time-weighted average) and STEL (short-term exposure limit) for VOCs and toxics

User Friendly Operation

  • Continuous LCD shows simultaneous gas concentrations for five gases
  • Simple, user selectable field options including PID / combustible correction factor, language selection, confidence beep, span level, set TWA/STEL calculation choice, set calibration due date, pass code protection, latching alarm, “SAFE” display function, stealth mode, and selectable ppm resolution for some gases
  • Self-testing sensor, battery/circuit integrity and audible/visual alarms

X5-Series Specifications:
Use Portable 5-gas monitor for the protection of personnel against gas hazards
Sensor Configuration One oxygen, one flammable, one toxic (can be TwinTox CO/H2S sensor or other); final position is either toxic, PID or IR sensor
Display Custom LCD; Backlight: Low light (auto); alarm condition (auto); reactivation on demand
Weight 13.1 oz / 370 g
Dimensions 5.7 x 2.9 x 1.5 in/ 14.5 x 7.4 x 3.8 cm
Battery Alkaline or optional Lithium Polymer rechargeable battery
Audible Alarm 95 dB at 1 ft./30 cm at variable pulsed audible alarm
Vibrating Alarm Pulses warning in gas alarm conditions, or for any status alarms
Visual Alarm Two flashing alarm bars visible from all angles
Sensor Type Electrochemical, catalytic bead and optional Infrared or PID
Calibration Automatic (stand alone or with MicroDock II)
Data recording All events and occurrences (calibration zero adjustment, calibration span adjustment, gas readings, TWA, STEL, alarm condition, failures detected by the microprocessor)
Intrinsic Safety X5 and X5PID are II 1 G Ga Exia IIC T4 for ATEX and Ga Exia IIC T4 for IECEx; X5IR CO2 is II 2 G Ga Ex d ia IIC T4 for ATEX and Ga Ex d ia IIC T4 for IECEx; Canada and the U.S. : Class I, Div.1 Gr. A,B,C, D T4. Certified for combustible gas environments for Canada and the US: CAN/CSA C22.2 No.152 and ANSI ISA S12.13.1
Warranty Two years including sensor except NH3 (one year)

Sensor Specifications:
DETECTOR 1 , 2, 3, 4, or 5 -gas detector
Gas / Sensor Measuring Range Default Resolution High Resolution TWA *** STEL*** LOW *** HIGH***
O2 0-30.0% 0.50% N/A N/A N/A 19.5 23.5
H2S 0-500 ppm 1.0 ppm N/A 10 15 10 15
CO 0-999 ppm 1.0 ppm N/A 35 50 35 200
TwinTox (H2S) 0-500 ppm 1.0 ppm N/A 10 15 10 15
TwinTox (CO) 0-500 ppm 1.0 ppm N/A 35 50 35 200
PH3 0-5.0 ppm 1.0 ppm 0.1 ppm 0.3 1.0 0.3 1.0
SO2 0-150 ppm 1.0 ppm 0.1 ppm 2 5 2 5
NO2 0-99.9 ppm 1.0 ppm 0.1 ppm 2.0 5.0 2.0 5.0
HCN 0-30.0 ppm 1.0 ppm 0.1 ppm 4.7 10.0 4.7 10.0
Cl2 0-50.0 ppm 1.0 ppm 0.1 ppm 0.5 1.0 0.5 1.0
NH3 0-100 ppm 1.0 ppm 0.1 ppm 25 35 25 50
ClO2 0-1.00 ppm 0.1 ppm 0.01 ppm 0.1 0.3 0.1 0.3
O3 0-1.00 ppm 0.1 ppm 0.01 ppm 0.1 0.1 0.1 0.1
CO2 / IR 0-50,000 ppm
0-5.0% v/v
50 ppm
VOC / PID 0-1000 ppm 1 ppm N/A 50 100 50 100
LEL 0-100% LEL
0-5.0% v/v
