Testo 6631 humidity/temperature transmitter for greenhouses

Item #:
XXYY-0555-6631
Brand:
Testo
Testo 6631 humidity/temperature transmitter for greenhouses
$1,072.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Testo 6631 humidity/temperature transmitter for greenhouses

Testo 6631 humidity/temperature transmitter for greenhouses

$1,072.00

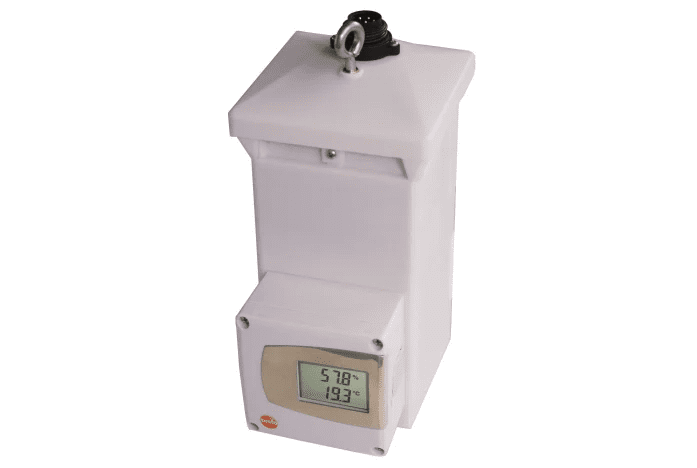

6631 humidity/temperature transmitter for greenhouses by Testo

The testo 6631 transmitter was developed specially for monitoring critical ambient conditions in greenhouses, e.g. for bio research purposes. Precise and reliable humidity measurement is indispensible in these applications, in order to avoid costs caused by failed experiments.

Process security and system availability, among the most important factors in experimental plants, are supported by a number of properties of the testo 6631 bio research transmitter.

  • P2A software for parameterization, adjustment and analysis saves time and costs in commissioning and maintenance
  • Integrated ventilator allows targeted flow impact onto the sensor, enabling the recording of an averaged climate inside the greenhouse cell
  • Quick and easy ventilator replacement with ventilator drawer assembly and plug-in connection
  • Easy exchange of sensor filter
  • Protection of the electronics and sensor from humidity influences (e. g. sprinkler)

Delivery Scope

  • testo 6631 humidity/temperature transmitter (measuring indicator) for greenhouses and laboratories with selectable signal outputs including instruction manual
  • Optionally with display
Measurement parameters
Humidity
Units %RH
Measuring range 0 to 100 %RH (not for high humidity processes)
Measurerment uncertainty* ±2.5 %RH (0 to 90%); 4.0 %RH (90 to 100%)
Sensor Testo humidity sensor, plug-in; exchangeable by customer, subsequent 2-point adjustment required
Response time Humidity max. 5 sec. (t63) (with protective cap and ventilator in operation)
Temperature
Units °C/°F
Measuring range -10 to +60 °C (observe operating temperature)
Measurerment uncertainty ±0.5 °C
Sensor NTC
Inherent warming 0.6 °C (with M01 and M03)
Response time Temperature max. 20 sec. (t63) (with protective cap and ventilator in operation)

Inputs and outputs
Analog outputs
Quantity 2 channels (humidity and temperature)
Output type 4 to 20 mA (2- or 4-wire)
Measurement rate 1/s
Resolution 12 bit
Max. load <500 Ω
Further outputs
Digital Mini DIN for P2A software
Supply
Voltage supply 24 V ±10%
Current consumption <1A (ventilator + transmitter)
Connection 2-wire plug manufacturer (Euchner)
4-wire plug manufacture (TuchelAmphenol)

General technical data
Design
Material / colour Plastic/white, UV-proof, high chemical resistance
Dimensions 105 x 139 x 225 mm
Weight 0.8 kg
Display
Display Optional: 2-line LCD with clear text line
Resolution 0.1 %RH or 0.1 °C/°F
Operation
Parameterization via P2A software
Miscellaneous
Protection class Transmitter IP65; housing IP33
EMC EMC DIN EN 61000-6-2 (interference susceptibility) and DIN EN 61000-6-3 (interference emission)

Operating conditions
Operating temperature (sensor) 0 ... +50 °C
Storage temperature -20 ... +70 °C

Ventilator
Max. volume flow 46.80 m3/h; 13 l/s
Noise level (unobstructed) 30 dB(A)
Life expectancy 37,000 h (40 °C)
Ventilator housing / vane Metal / metal
Bearing system Plain bearing
Service Ventilator installed in lower section with plug-in connection, in order to be exchangeable in case of service
