E Instruments AQ VOC Handheld TVOCs Monitor

Item #:

XXYY-AQ-VOC

Brand:

E Instruments

$3,939.00

Qty

Ask a Question

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

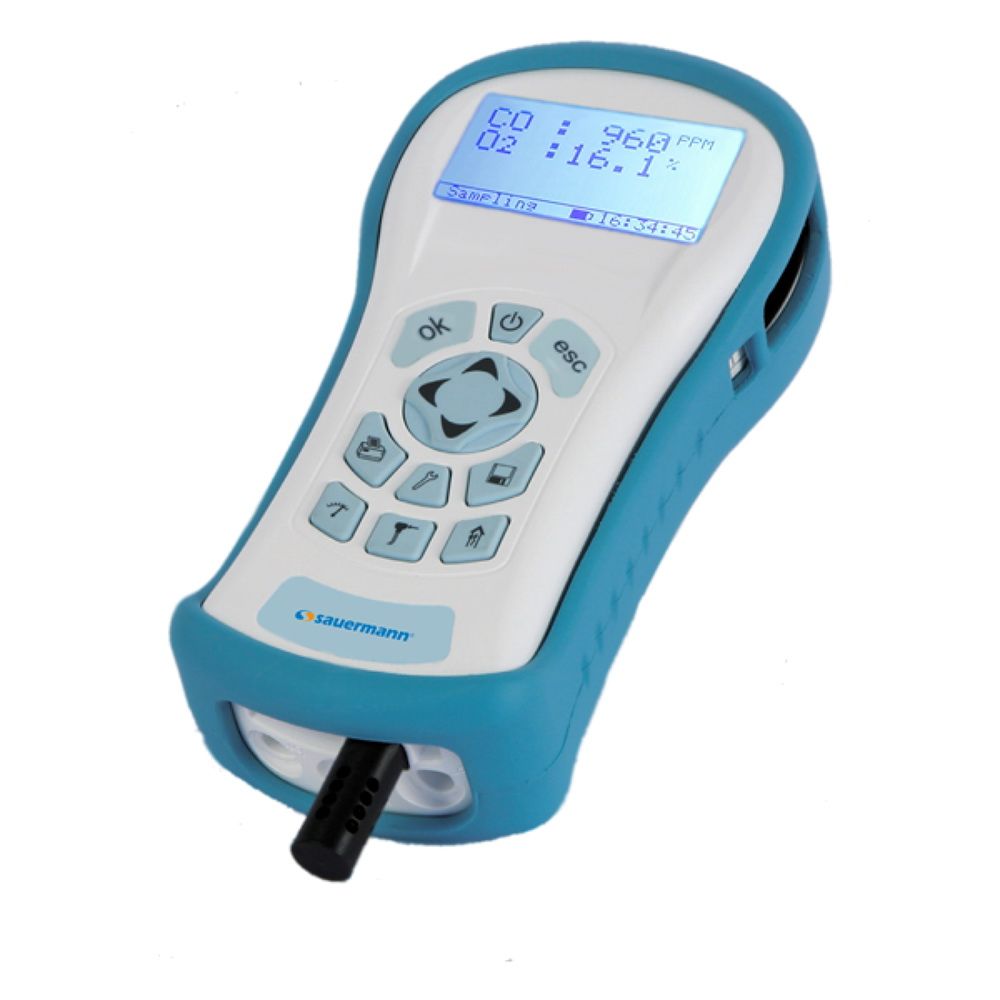

AQ VOC Handheld TVOCs Monitor by E Instruments

The SI-AQ VOC Monitor is the ideal instrument for you should your specific application require testing for Volatile Organic Compounds (VOCs) or potentially harmful gasses such as Carbon Monoxide (CO). In addition, the (Si-VOC) Si-AQ VOC Monitor can an also be outfitted with up to three (3) Gases sensors in total among VOC, CO₂, CO, Formaldehyde, NO₂, NO, O₂, SO₂ & H₂S in addition to measuring Relative Humidity, Ambient Temperature and Barometric Pressure.

Accurate / Reliable / Robust / Fast

Dynamic PID TVOC Sensor: 0 - 20,000 ppb or 0 - 200 ppm
Temp., %RH, & Barometric Pressure Included
Real-Time Data Logging
Active Internal Sampling Pump
Large Internal Memory (2,000 Tests)
Protective Magnetic Rubber Boot
Optional Wireless Printer
Optional Handheld Probe

Select Up To 3 Gases in Total: TVOCs, CO₂, CO, Formaldehyde, NO₂, NO, O₂, SO₂, H₂S
Long Lasting Rechargeable Battery & AC Charger
Light Weight & Durable
Si-AQ PC Software & USB Cable

AQ VOC Kit includes:

Temperature, %RH, Wet Bulb, Dew Point
Barometric Pressure
PC Software & USB Cable
Real-Time Continuous Data Logging
Bluetooth® Connectivity
Protective Carrying Case
Continuous Active Internal Sampling Pump
Long Lasting Battery & AC Charger
Factory Calibration Certificate
Quick Start Guide

Specifications

Specifications:

Parameter	Sensor	Range	Resolution	Accuracy
Low Range VOC	PID	5 - 95 %	0.1 %	±2 % RH
High Range VOC	PID	-40 to 257 °F -40 to 125 °C	0.1 °F 0.1 °C	±0.4 °F (32 - 140 °F) ±0.4 °C (0 - 60 °C)
Relative Humidity	Capacitive	260 - 1,260 mbar	1 mbar	±2 mbar
Ambient Temperature	Pt100	-40 inH₂O to 40 inH₂O -100 mbar to 100 mbar	0.1 inH₂O 0.1 mbar	±1 % rdg
Barometric Pressure	Piezoresistive	0 - 2,000 °F 0 - 1,100 °C	1 °F 1 °C	5 °F / 3 °C or 2 % rdg
Differential Pressure	Piezoresistive	0 - 300 ft/sec 0 - 91 m/s	1 ft/sec 1 m/s	-
Temperature Type K T1	Tc K	0 - 2,000 °F 0 - 1,100 °C	1 °F 1 °C	5 °F / 3 °C or 2 % rdg
Air Velocity	Calculated	0 - 300 ft/sec 0 - 91 m/s	1 ft/sec 1 m/s	-
Electromagnetic Compatibility	EN 61326-1, Portable Equipment

Si-AQ VOC Ordering Code

Parameter	Sensor	Range	Resolution	Accuracy
Si-AQ VOC Cell (20,000 ppb) Low Range VOC	PID	0 - 20,000 ppb 0 - 46,000 µg/m
Si-AQ VOC Cell (200 ppm) High Range VOC	PID	0 - 200 ppm 0 - 460 mg/m
Si-AQ CO2 Sensor (5000 ppm) Carbon Dioxide (CO₂)	NDIR	0 - 5,000 ppm	1 ppm	±2 % rdg ±10 ppm
Si-AQ CO Cell (0 - 200 ppm) Carbon Monoxide (CO)	EC	0 - 200 ppm	0.1 ppm	±4 % rdg ±0.5 ppm
Si-AQ CH2 O Cell (0 - 10 ppm) Formaldehyde (CH₂O)	EC	0 - 10,000 ppb	1 ppb	±5 % rdg ±50 ppb
Si-AQ H2 S Cell (0 - 100 ppm) Hydrogen Sulfide (H₂S)	EC	0 - 100 ppm	1 ppm	±4 % rdg ±0.5 ppm
Si-AQ NO2 Cell (0 - 20 ppm) Nitrogen Dioxide (NO₂)	EC	0 - 20 ppm	0.1 ppm	±4 % rdg ±0.5 ppm
Si-AQ O2 Cell (0 - 25 %) Oxygen (O₂)	EC	0 - 25 %	0.1 %	±0.1 % vol rdg
Si-AQ SO2 Cell (0 - 20 ppm) Sulfur Dioxide (SO₂)	EC	0 - 20 ppm	0.1 ppm	±4 % rdg ±0.5 ppm
Si-AQ NO Cell (0 - 250 ppm) Nitric Oxide (NO)	EC	0 - 250 ppm	0.1 ppm	±4 % rdg ±0.5 ppm
