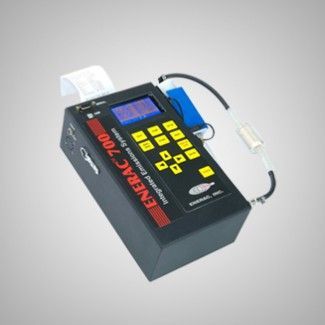

Enerac 700 Portable Compliance-Level Combustion Emissions Analyzer

Item #:
XXYY-ENERAC-700
Brand:
Enerac
Enerac 700 Portable Compliance-Level Combustion Emissions Analyzer
$4,495.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Enerac 700 Portable Compliance-Level Combustion Emissions Analyzer

Enerac 700 Portable Compliance-Level Combustion Emissions Analyzer

$4,495.00
Choose Options

700 Portable Compliance-Level Combustion Emissions Analyzer by Enerac

Enerac brings you the model 700… The most accurate, reliable, rugged and affordable multi parameter, compliance level, portable combustion analyzer. The Enerac 700 is unmatched in versatility. It is designed to help you meet the challenges of a rapidly changing regulatory environment.

Compact/Rugged

The Enerac Model 700 is handheld, weighs 6 lbs and is easy to operate (no technical expertise is needed). The Model 700 units are rugged, made with a metal case and considered the workhorse of the industry withstanding years of use and abuse. No one makes a more affordable, accurate, rugged, reliable and sophisticated portable combustion emissions analyzer than Enerac. Enerac custom builds all units and can engineer sensor ranges and options to customer requirements for their respective application(s) at hand.

Versatile

The Enerac Model 700 is used for a vast array of applications. The most common applications are those related to combustion sources, such as Boilers, Burners, Engines, Turbines, Generators, Kilns, Dryers, Heaters, Ovens … to name a few. The Enerac Model 700 is also of interest to Scientists and their respective combustion/emissions experiments typically found at the University research environment as well as in the private sector.

User Friendly

The Enerac Model 700 units have easy access for replacing sensors in the field. The back of the unit has easy thumb screws to pop off the back plate. Once the back plate is off, the sensors are easy to see and pop in and out. These sensors are field replaceable (the unit does not need to be sent back to the factory for sensor replacement). The Model 700 also has the ability to be field calibrated without having to send the unit back to the factory! Free factory tech support is always available if need be.

Compliance Level

The Enerac Model 700 is fully upgradeable (one can order new sensors and options to the same unit over time). The Model 700 also has a standard sample conditioning system (thermoelectric condenser also called a peltier cooler) necessary for the proper detection and measurement of both NO2 and/or SO2 gasses. The Model 700 also has proper control over the NO sensors tendency to drift over time with increasing ambient temperatures. The Enerac Model 700’s NO SEM sensor incorporates a proprietary temperature control system designed to automatically hold the nominal filter and sensor temperatures at < 30 degrees C. This ultimately prevents rising measurement data drift and maintains the actual lower readings of the NO (NOx). This in turn prevents one from overstating one’s NO (NOx) emissions.

The Enerac Model 700 combines a high quality tubing (Viton hose with its specific dimensions and flow rate) along with an accurate and reliable conditioning system (peltier cooler) with the additional benefits of the extremely accurate SEM sensors. The result is a Compliance-Level Emissions Analyzer that produces reliable, accurate data in the palms of your hands.

The Enerac Model 700 is perfect for gathering extremely accurate and reliable data for internal needs as well as for the necessary emissions reporting requirements for local, district, county, state and federal agencies. The Model 700 Is perfect for S.C.A.Q.M.D. compliance requirements (and the other CA districts) EPA compli-ance tests (i.e. ctm 30, ASTM – 6522, ctm 34, for CO, (NOx) requirements etc.), method 2 (stack gas velocity), and method 25B (Hydrocarbons).

Communications

The Enerac Model 700 comes with 500 internal storage buffers for storing collected data during a testing event. With Enerac’s free Enercom software, one can use during the testing event or download the stored data at a later date. There is a serial port (RS 232 port), USB port and Blue tooth for communicating with your Enerac Model 700 and your computer.

Enerac Model 700 Base unit Includes

O2 (Oxygen), CO (Carbon Monoxide) SEM Sensor Dual Range (Dual range is not available if Combustible Sensor is Selected), Draft (not available with pitot tube/velocity option), Combustibles (not available with NDIR opt.), Stack & Ambient Temperature, Computes Efficiency, CO2 & Excess air.; with a 4&8 line 128 x 64 pixel dual display with backlight, Emissions Calculation, Auto Zero, RS-232 Port, USB port, Rechargeable Battery, AC Adapter, Built-In Printer, Storage (400 Complete Test Printouts), Blue Tooth, Enercom Software cd, Travel Case, in-line filter, roll of printer paper, manual, Calibration Certificate and a Two Year Warranty on the Unit and a Two Year Warranty (Pro-Rated) on the Sensors

Model 700 Specification
Dimensions 5.75"W x 9.75"H x 3.25" D
Weight 6 lbs
Power 4D size NiMH rechargeable And 120/240 VAC Adapter
Display 4&8 Line 128 x 64 pixel Dual Display
Memory 500 Internal Storage Buffers
Printer 2" Graphic Thermal Printer
Communications Serial (RS 232) and USB ports, up to 115k Baud; Bluetooth

Sensor Specification
Measured Parameter Range Resolution Accuracy Sensor Type
Ambient Temperature 0-150 °F 1 degree F or C ± 2 ° F M Type RTD
Stack Temperature (net) 0-2,000 °F (1,100 °C) 1 degree F or C ± 2 ° F M Type K thermocouple
Oxygen (O2) 0-25% 0.1 % ± 0.2% M Electrochemical
Carbon Monoxide (CO) 0-1,500/4,500 ppm 1 ppm ± 1-2%M (< ± 1%) Dual Range SEM
Nitric Oxide (NO) 0-500/1,500 ppm 0.1 ppm ± 1-2%M (< ± 1%) Dual Range SEM
Nitrogen Dioxide (NO2) 0-500/1,500 ppm 0.1 ppm ± 1-2%M (< ± 1%) Dual Range SEM
Sulfur Dioxide (SO2) 0-1,500/4,500 ppm 1 ppm ± 1-2%M Dual Range SEM
Combustibles 0-5% 0.1% ± 2% (CH4) M Catalytic Sensor
Stack Draft +10" to - 40" WC 0.1 " WC ± 2% M Silicone Diaphragm
Stack Velocity / Flow 0-200 ft/sec (0-6,500 cfm) 1 ft/sec Meets EPA Method 2 Type S pitot tube
Hydrocarbons CxHy 0-30,000 ppm 1 ppm ±3% M (meets EPA method 25B) NDIR
Carbon Monoxide (CO) 0-15% 0.01% ±3% M NDIR
Carbon Dioxide (CO2) 0-20% 0.01% ±3% M NDIR
Computed Parameter Range Resolution Accuracy
Combustion Efficiency 0-100% 0.1% ± 1% calculated
Carbon Dioxide 0-40% 0.1% ± 2% calculated
Excess Air 0-1000% 1% ± .2% calculated
NOx (NO + NO2) 0-1,000 or 0-3,000 ppm 0.1 ppm ± 4% (<± 2%) calculated
Emissions Conversion Units
(CO, NO, NO2, SO2)
milligrams / cubic meter
pounds / million btu
grams / brake-hp-hr
0-2,500 mg/m3
0-99.99 #/mbtu
0-99.99 g/bhp-hr
2 mg/m3
0.01 #/mbtu
0.01 g/bhp-hr
± 2% M (< ± 1%)
± 2%
± 2%
calculated
