RAE Systems ToxiRAE Pro Personal Monitor

RAE Systems ToxiRAE Pro Personal Monitor

$442.00
Choose Options

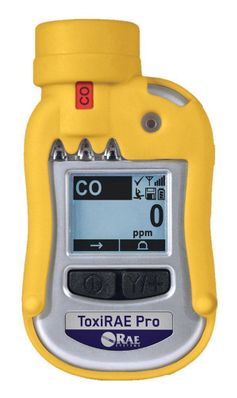

ToxiRAE Pro Personal Monitor by RAE Systems

The ToxiRAE Pro is the world's first wireless personal monitor for toxic gases and oxygen. The ToxiRAE Pro can detect a broad range of gases from carbon monoxide, hydrogen sulfide, and oxygen to ammonia, chlorine, and formaldehyde. The ToxiRAE Pro provides safety professionals wireless remote access to real-time instrument readings and alarm status for better visibility and faster incident response. The ToxiRAE Pro's intelligent interchangeable sensors store calibration data, which allows users to monitor for one gas one day and another gas the next, by simply swapping the sensors in the ToxiRAE Pro.

ToxiRAE Pro Comes with

  • ToxiRAE Pro monitor with sensor as specified, alligator clip, protective rubber boot, and rechargeable battery installed
  • Charging and PC communication cradle
  • PC communication cable
  • AC adapter (100 to 240 V, 50/60 Hz AC to 12 V DC)
  • Calibration adapters
  • Quick Start Guide
  • CD with documentation
  • ProRAE Studio II software for PC-based instrument configuration and data management
  • Calibration card, quality certificate, and warranty/registration card

Key Features

  • Wireless access to real-time instrument readings and alarm status from any location
  • Unmistakable five-way local and remote wireless notification of alarm conditions
  • Intelligent sensors store calibration data, so they can be swapped in the field
  • Most electrochemical sensors are shared with MultiRAE family instruments
  • Largest display in its class
  • Continuous datalogging
  • Easy to use
  • Reliable, rugged, and intrinsically safe

Applications

  • Agriculture
  • Chemical
  • Fire service / HazMat
  • Food and beverage
  • Oil and gas
  • Pharmaceutical
  • Pulp and paper
  • Steel manufacturing
  • Water and wastewater industries
Instrument Specifications
Size 4.6" H x 2.4" W x 1.2" D (118 x 60 x 30 mm)
Weight 7.76 oz. (220 g)
Sensor Over 20 intelligent interchangeable field-replaceable electrochemical sensors
Battery Rechargeable Li-ion battery
- Operating time: > 30 hours (normal operation, non-wireless)
- Recharge time: < 4 hours through charging cradle
Display Graphical LCD display with white LED backlighting (activated when monitor is in alarm or with a button press)
Display Readout - Real-time reading of gas concentrations in parts per million (ppm) or mg/m3; battery status; data logging on/off; wireless on/off and reception quality
- STEL, TWA, and peak values
Keypad 2 buttons for operation and programming
Sampling Diffusion
Calibration Automatic with AutoRAE 2 Test and Calibration System or manual
Alarm Modes - Wireless remote alarm notification; audible (95 dB @ 30 cm), vibration, visible alarm (flashing bright red LEDs), and on-screen indication of alarm conditions
- Man Down Alarm with pre-alarm and real-time remote wireless notification
Datalogging - Continuous datalogging with a three-month capacity (at one-minute intervals)
- User-configurable datalogging interval (from 1 to 3,600 seconds)
Communication and Data Download - Data download and instrument set-up on PC via charging and PC comm. cradle
- Data download via AutoRAE 2 Automatic Test and Calibration System
- Wireless data and status transmission via built-in RF modem (optional)
Wireless Network ProRAE Guardian Real-Time Wireless Safety System or Closed-Loop Network with the EchoView Host
Wireless Frequency ISM license-free bands
Wireless Range (Typical) ToxiRAE Pro to Mesh Router, EchoView Host, or Mesh Reader ~ 660 feet (200 meters)
ToxiRAE Pro to RAELink3 Mesh or RAELink3 Z1 Mesh modems ~ 330 feet (100 meters)
Operating Temperature -4° to 131°F (-20° to 55°C)
Humidity 0% to 95% relative humidity (non-condensing)
Dust and Water Resistance IP-65 rating for dust and water ingress protection (validated by an independent test laboratory)
EMC/RFI EMC directive: 2004/108/EC.
Warranty - Two years on non-consumable components and CO, H2S, and O2 sensors
- One year on all other sensors, battery, and other consumable parts
Wireless Frequency ISM license-free band. IEEE 802.15.4 Sub 1GHz
Wireless Approvals FCC Part 15, CE R&TTE, Others
Radio Module Supports RM900

Sensor Specifications
Sensor Range Resolution
Ammonia (NH3) 0 to 100 ppm 1 ppm
Carbon Monoxide (CO) 0 to 500 ppm 1 ppm
Carbon Monoxide (CO), Ext. Range 0 to 2,000 ppm 10 ppm
Carbon Monoxide (CO), H2-comp. 0 to 2,000 ppm 10 ppm
Chlorine (Cl2) 0 to 50 ppm 0.1 ppm
Chlorine Dioxide (ClO2) 0 to 1 ppm 0.03 ppm
Ethylene Oxide (EtO-A)
Ethylene Oxide (EtO-B)
Ethylene Oxide (EtO-C), Ext. Range
0 to 100 ppm
0 to 10 ppm
0 to 500 ppm
1 ppm
0.1 ppm
10 ppm
Formaldehyde (HCHO) 0 to 10 ppm 0.05 ppm
Hydrogen (H2) 0 to 1,000 ppm 10ppm
Hydrogen Cyanide (HCN) 0 to 50 ppm 0.5 ppm
Hydrogen Sulfide (H2S)
Hydrogen Sulfide (H2S), Ext. Range
0 to 100 ppm
0 to 1,000 ppm
0.1 ppm
1 ppm
Methyl Mercaptan (CH3-SH) 0 to 10 ppm 0.1 ppm
Nitric Oxide (NO) 0 to 250 ppm 0.5 ppm
Nitrogen Dioxide (NO2) 0 to 20 ppm 0.1 ppm
Oxygen (O2) 0 to 30% Vol. 0.1% Vol.
Phosphine (PH3) 0 to 20 ppm 0.1 ppm
Sulfur Dioxide (SO2) 0 to 20 ppm 0.1 ppm
