Zarbeco MiScope Megapixel 2 Filter Wheel - MMP2-FW-002

Zarbeco MiScope Megapixel 2 Filter Wheel - MMP2-FW-002

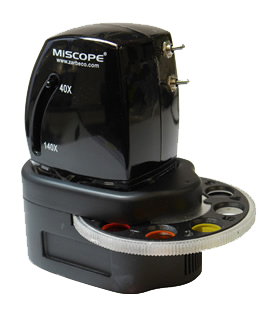

MMP2-FW-002 MiScope Megapixel 2 Filter Wheel by Zarbeco

The MiScope-MP2 Filter Wheel turns your MiScope-MP2 into an imaging luminescence/fluorescence comparator.

Built-in UV and deep blue LEDs allow you to select the excitation source wavelength (or use both wavelengths together). The filter wheel contains eight barrier cutoff filters in the range of 490 - 780 nm. With detents and a spring-loaded stop, the wheel turns easily but snaps into the correct position at each filter.

The MiScope Filter Wheel works with the all MiScope MP2 models including the MISC-MP2; MISC-MP2-IR; MISC-MP2-UV; and MISC-MP2-WUVIR.

Note that the MiScope Megapixel 2 is not included and must be purchased separately.


  • UV and Blue high power LED light sources (individually selectable) for excitation for use with MiScope Megapixel 2 (not included)
  • Eight selectable barrier cutoff filters from 490 to 780 nm.
  • Battery powered
  • 1 year Limited Warranty


  • Forensic document examination
  • Fluorescence imaging
LED Source Wavelengths (nm) 390, 460 (selectable)
Filter Wavelengths (nm) 490, 550, 565, 610, 670, 700, 760, 780
Weight less than 9 oz. including battery
