Testo 510 Pocket Pro Pressure Meter with Air Velocity - 0560 0510

Testo 510 Pocket Pro Pressure Meter with Air Velocity - 0560 0510

$195.00

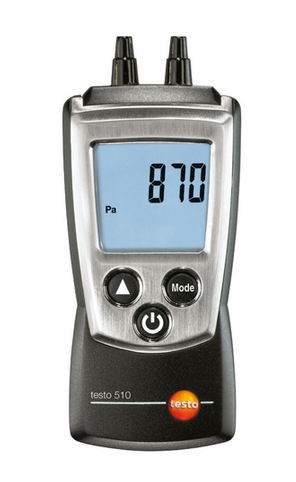

0560 0510 510 Pocket Pro Pressure Meter with Air Velocity by Testo

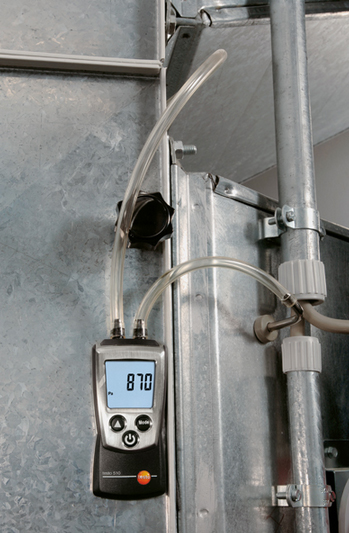

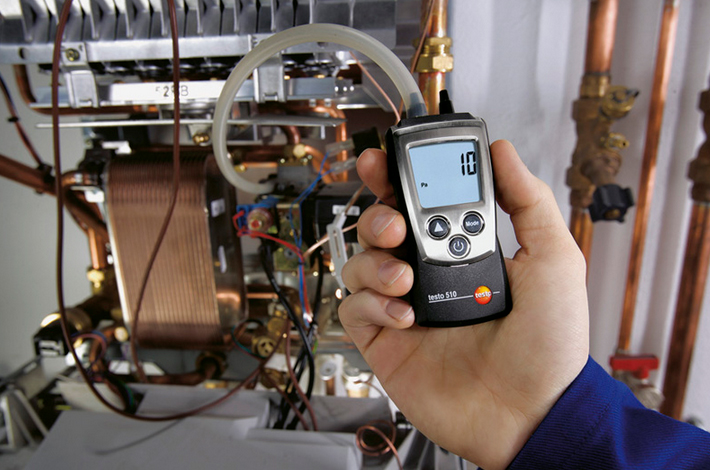

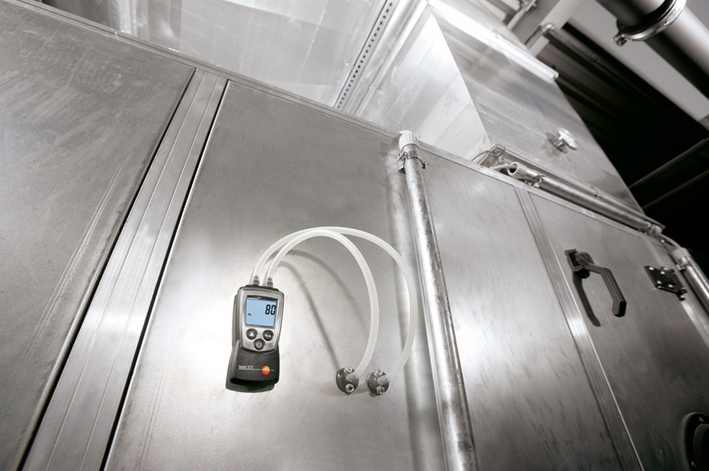

The differential pressure meter is ideally suitable for pressure measurements in the range 0 to 100 hPa. testo 510's differential pressure measurement is temperature-compensated for accurate readings. Readings can be displayed in Pascal over the whole measurement range. Magnets at the back of the instrument enable hands-free operation, for instance, while adjusting gas heaters.

  • Display in Pascal possible over entire measurement range
  • Accuracy: ±0.03 hPa (0 to 0.30 hPa) / ±0.05 hPa (0.31 to 1.00 hPa)
  • Temperature compensation
  • Magnetic rear permits free-hand work
  • Flow velocity measurement with Pitot tube (Pitot tube not included in delivery)
  • Air density compensation
  • Protective cap for safe storage
  • Including wrist strap and belt holder
  • Backlit display
  • Switchable units: hPa, mbar, Pa mmH2O, mmHg, inH2O, inHg, psi, m/s, fpm
Meas. range 0 to 100 hPa
Accuracy ±1 digit ±0.03 hPa (0 to 0.30 hPa)
±0.05 hPa (0.31 to 1.00 hPa)
±(0.1 hPa + 1.5 %of mv) (1.01 to 100 hPa)
Resolution 0.01 hPa
Positive pressure 500 mbar
max. static pressure 1.5 bar
Oper. temp. 0 to +50 °C
Storage temp. -40 to +70 °C
Selectable units hPa, mbar, Pa, mmH2O, inH2O, inHg, mmHg, psi, m/s, fpm
Protection class IP40
Battery type 2 batteries Type AAA
Battery life 50 h (average, without display illumination)
Measurement rate 0.5 s
Dimensions 119 x 46 x 25 mm
Weight 90 g (with batteries and protective cap)
Warranty 2 years
