510 Pocket Pro Pressure Meters

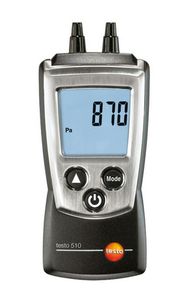

0560 0510 510 Pocket Pro Pressure Meter with Air Velocity by Testo

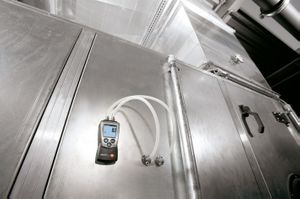

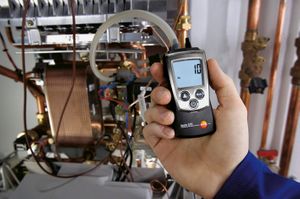

The differential pressure meter is ideally suitable for pressure measurements in the range 0 to 100 hPa. testo 510's differential pressure measurement is temperature-compensated for accurate readings. Readings can be displayed in Pascal over the whole measurement range. Magnets at the back of the instrument enable hands-free operation, for instance, while adjusting gas heaters.

• Display in Pascal possible over entire measurement range
• Accuracy: ±0.03 hPa (0 to 0.30 hPa) / ±0.05 hPa (0.31 to 1.00 hPa)
• Temperature compensation
• Magnetic rear permits free-hand work
• Flow velocity measurement with Pitot tube (Pitot tube not included in delivery)
• Air density compensation
• Protective cap for safe storage
• Including wrist strap and belt holder
• Backlit display
• Switchable units: hPa, mbar, Pa mmH2O, mmHg, inH2O, inHg, psi, m/s, fpm

0560 1510 01 510i Differential Pressure Smart Probe by Testo

The testo 510i Smart Probe is a wireless differential pressure probe used for accurate low-pressure measurements. The testo 510i is great for measuring pressure in manifolds, static pressure, and pressure drops in buildings or ventilation systems. Use it to measure the pressure drop across coils and filters or in ducts and systems. Users can read the measurements using the testo Smart Probes App installed on their smart device. It can be used for determining air velocity and volume flow when used with Pitot tubes (not included). The testo 510i works on smart devices with either Android or Apple operating systems.

The testo Smart Probes App is a powerful and easy-touse tool. It allows you to remotely read measurements from up to six (6) Smart Probes and easily document/report the results. Automatic calculations make it a snap!

All measurement data is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excel files. The App creates custom reports which can be saved and/or shared by email. All your data can be stored and retrieved saving you hours of time consuming paperwork!

• Differential pressure (manometer) measures static pressure, air flow, and volume flow (with Pitot tube not incl.)
• Measures manifold pressure and pressure drop across filters and coils
• Measurement menu in App includes pressure drop alarms
• Easy configuration and calculations for volume flow (enter pitot tube factor and dimensions easily)
• Magnetic back holds instrument for hands-free operation
• Measurement data is transmitted to the convenient and powerful testo Smart Probes App in your smart device
• Tough, accurate, and easy-to-use.
• For all HVAC/R technicians and contractors
