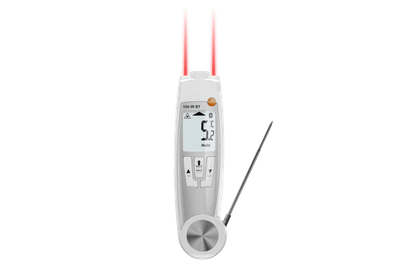

Testo 104-IR BT Infrared/penetration thermometer with app connection - 0560 1045 61
Item #:
0560-1045-61
Brand:
Testo
Share this product:
0560 1045 61 104-IR BT Infrared/penetration thermometer with app connection by Testo
The testo 104-IR BT penetration thermometer with integrated infrared sensor is a versatile measuring instrument for quick and reliable temperature checks as part of daily HACCP processes in food handling. The testo Smart App connection makes digital documentation, and temperature limit monitoring (CP/CCP) seemless for reporting.
The testo 104-IR BT enables non-contact measurement of surface temperatures and also offers the option of measuring the core temperature if upper or lower limit values are violated. All measurement values are automatically transmitted to the testo Smart App via Bluetooth.
The compact instrument's penetration probe is safely stowed away in the housing and is activated automatically when it is folded out. Operation of the testo 104-IR BT is simple and intuitive for rapid temperature measurements.
The testo 104-IR BT offers accurate and efficient temperature monitoring without requiring time-consuming procedures or compromising due to its user-friendly design and functionality.
- A measuring instrument for determining surface and core temperature with intuitive operation including seamless documentation via the testo Smart App
- Measurements are possible with or without the app. The app supports you with measurements of (critical) control points (CP/CCP) and helps ensure error-free, digital documentation.
- Tracking of measurement data: CSV data export or professional reports in PDF format (incl. signature & comment function) for regulatory requirements and internal quality assurance
Includes:
The waterproof infrared/penetration thermometer with Bluetooth testo 104-IR BT including folding penetration probe, batteries, quick guide and calibration protocol.
| Optics | 10:1 + opening diameter of the sensor (12mm) |
| Spectral range | 8 to 14 μm |
| Laser type | 2-point laser |
| Power / wavelength | < 1mW / 650nm |
| Class / standard | 2 / DIN EN 60825-1:2007 |
| Measuring range | -22 to 482 °F (-30 to +250 °C) |
| Resolution | 0.1 °F/°C/°R |
| Accuracy (at 73.4°F / 23°C, ± 1 digit) | ±4.5 °F (-22 to -4.18°F) ±3.6 °F (-4 to 31.82°F) ±2.7°F or ±1.5% of the measurement value (32 to 482 °F) ±2.5 °C (-30.0 to -20.1°C) ±2.0 °C (-20.0 to -0.1°C) ± 1.5°C or ±1.5% of the measurement value (+0.0 to +250.0 °C) |
| Mobile app (Android/ iOS) | Can be used with or without testo Smart App |
| Conformity | EN 13485, HACCP, NSF |
| Operating temperature | -4 to 122°F (-20 to +50°C) |
| Transport/storage temperature | -4 to 122°F (-30 to +50°C) (without batteries up to 158 °F /+70 °C) |
| Voltage supply | 2 x AAA batteries |
| Housing | ABS/TPE/PC and die-cast zinc/stainless steel |
| Protection class | IP65 |
| Dimensions | 11.1 X 1.9 X 0.8 in (281 x 48 x 21 mm) (immersion/penetration probe opened) 7 X 1.9 X 0.8 in (178 x 48 x 21 mm) (immersion/penetration probe closed) |
| Weight | 7.3 oz (207g) (incl. batteries) |
| Sensor type | NTC |
| Measuring range | -58 to 482 °F (-50 to +250 °C) |
| Resolution | 0.1°F/°C/°R |
| Accuracy ±1 digit | ±1.8 °F (-58 to -22.18 °F) ±0.9 °F (-22 to +211.82 °F) ±1 % of m.v. (+212 to +482 °F) ±1.0 °C (-50 to -30.1 °C) ±0.5 °C (-30 to +99.9 °C) ±1 % of m.v. (+100 to +250 °C) |
| Adaptation time (t99) | 10 s (in moving liquid) |
| Measurement rate | 0.5 s |
