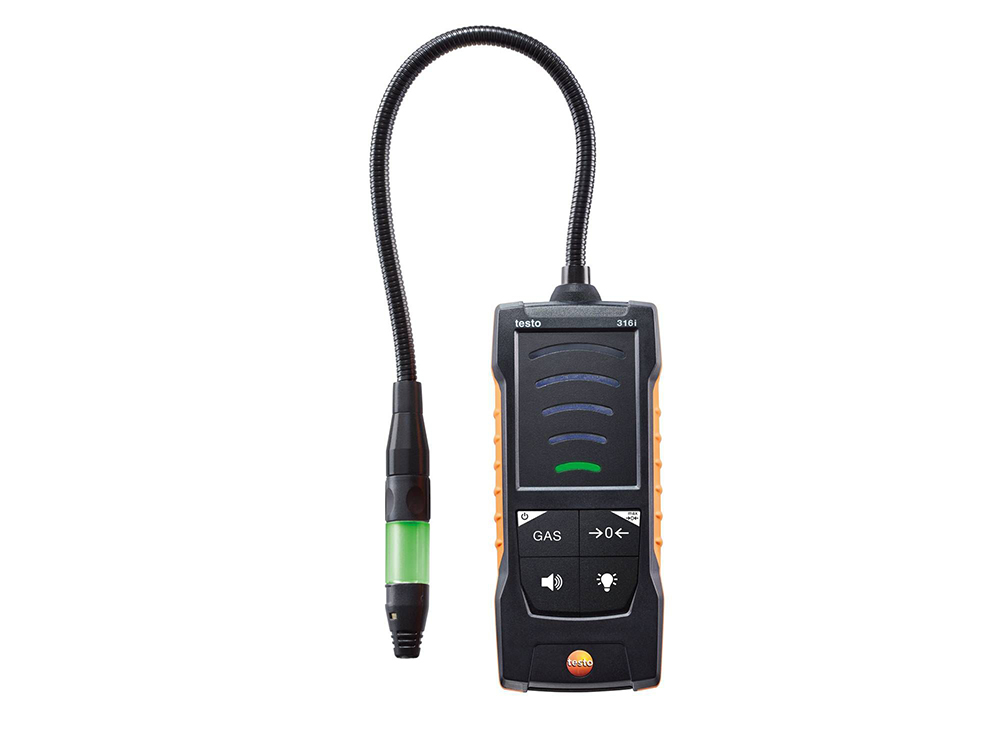

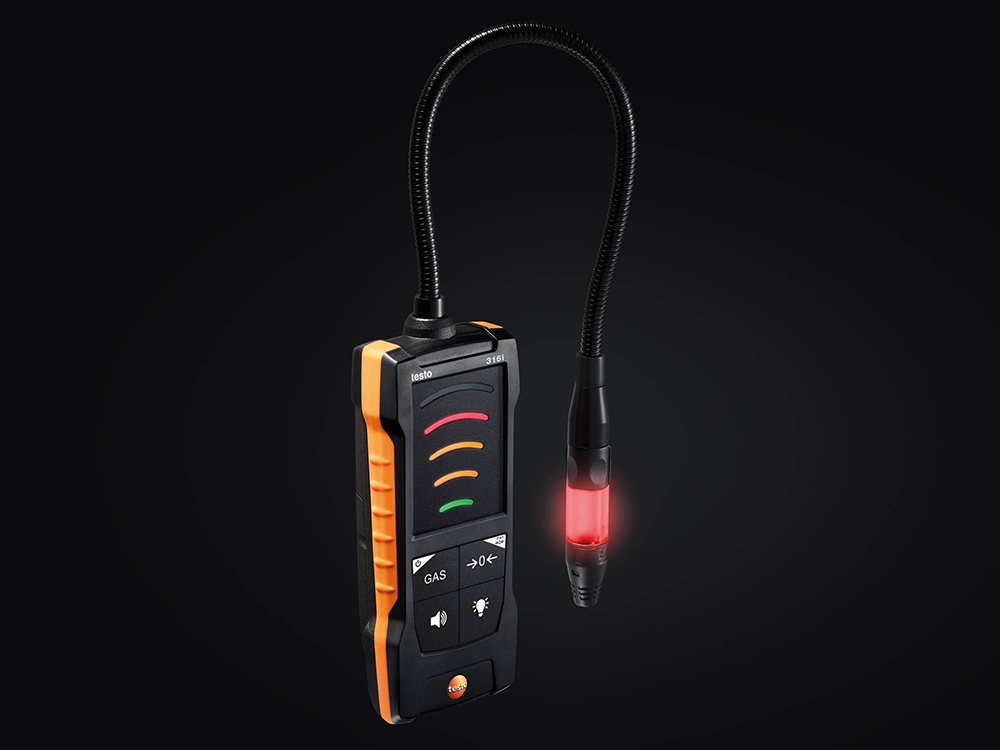

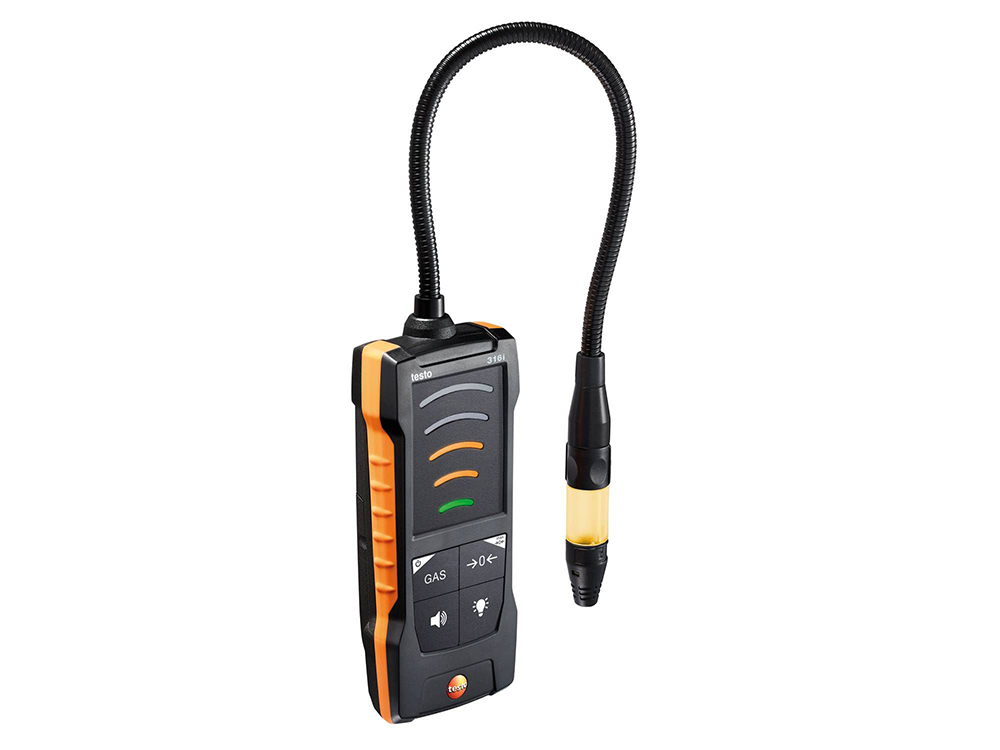

Testo 316i Gas Leak Detector with Flexible Probe - 0560 3161
Item #:
0560-3161
Brand:
Testo
Share this product:
0560 3161 316i Gas Leak Detector with Flexible Probe by Testo
Ideal if you wish to rule out or locate leaks in gas fittings – equipped with simple traffic light LED on the head and self-explanatory bar scale. In addition, ppm values and even %LEL (lower explosive limit) can be called up and documented via the app.
With the testo 316i gas leak detector, you can locate leaks easily and precisely. The acoustic and visual alarm via the multicolor LED on the sensor head and the self-explanatory bar scale ensure simple leak detection.
- Multi-colour LED (visual and acoustic alarm
- Sensor self-test and automatic zeroing
- Flexible measuring probe for locations that are difficult to access
- Connection to testo Smart App for documentation and ppm display
- Battery-powered
| Methane (CH4) | |
| Measuring range | 50 ppm to 4.0 Vol.% |
| Resolution | 1 ppm |
| Propane (C3H8) | |
| Measuring range | 50 ppm to 1.9 Vol.% |
| Resolution | 1 ppm |
| Butane (C4H10) | |
| Measuring range | 50 ppm to 1.5 Vol.% |
| Resolution | 1 ppm |
| Leak detection H2 | |
| Measuring range | 50 ppm to 4.0 Vol.% |
| Resolution | 1 ppm |
| General technical data | |
| Operating humidity | 0 to +80 %rH |
| Weight | 14 oz. / 405 g |
| Reaction time | < 2 sec |
| Dimensions | 6 x 3 x 1 in. (LxWxH) / 150 x 66 x 38 mm (LxWxH) |
| Operating temperature | 23° to 122 °F / -5 to +50 °C |
| Leakage alarm | 3-colour LED on sensor head; bar scale; acoustic; App |
| Length of gooseneck | 15.551 in. / 395 mm |
| Battery life | >15 h |
| Storage temperature | -4 to +122 °F / -20 to +50 °C |
