Testo 316-1 Gas Leak Detector with Flexible Probe - 0560 3162
Item #:
0560-3162
Brand:
Testo
Share this product:

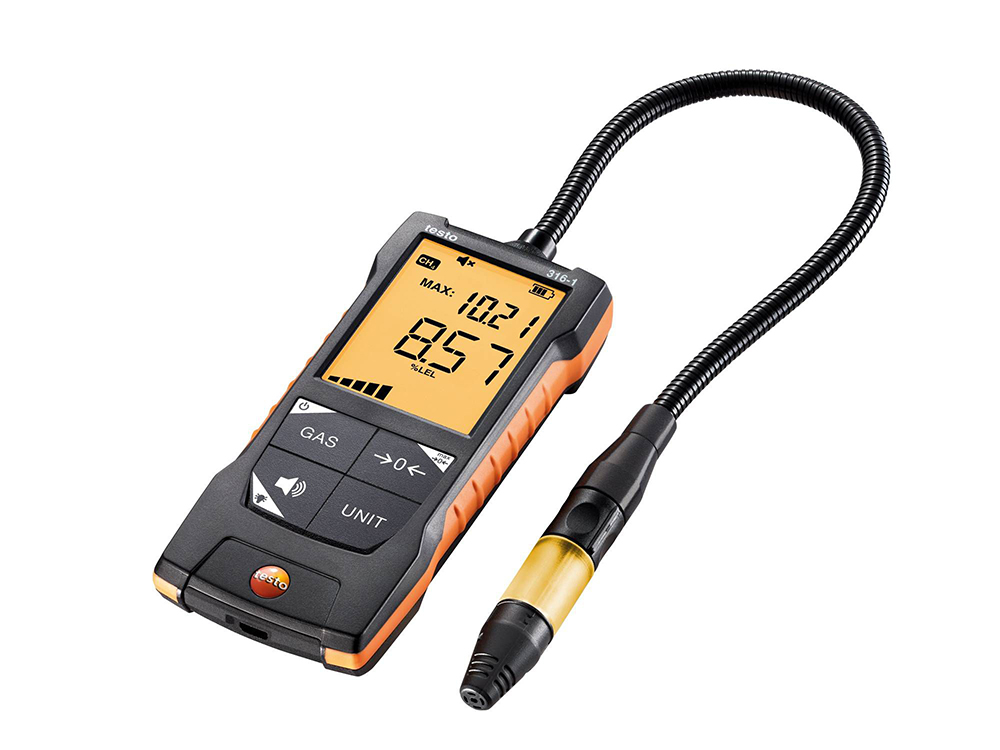

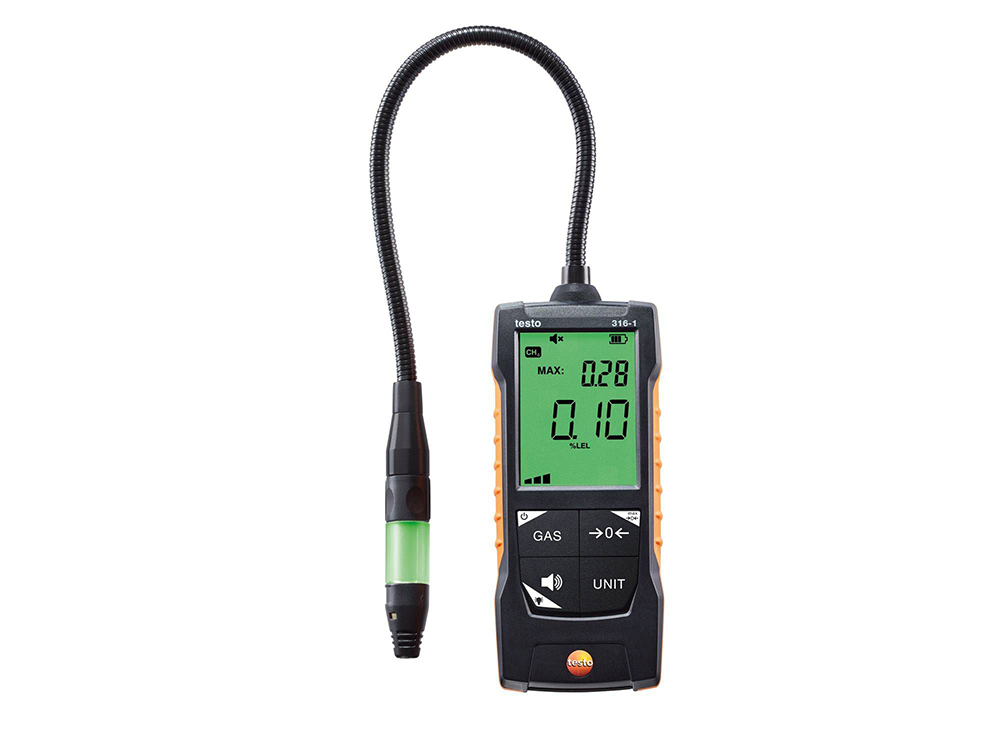

0560 3162 316-1 Gas Leak Detector with Flexible Probe by Testo
If you like to keep things simple, we recommend the testo 316-1 gas leak detector: Identifying and locating leaks or even reading off concentration values in ppm or %LEL (lower explosive limits) are all exceptionally easy. No training required thanks to the intuitive traffic-light scale on the head and the display illumination.
The testo 316-1 gas leak detector makes it particularly easy to identify and locate leaks. The multicolor LED on the sensor head and the multicolor display, as well as the flexible probe for hard-to-reach places, support you intuitively and precisely in leak detection.

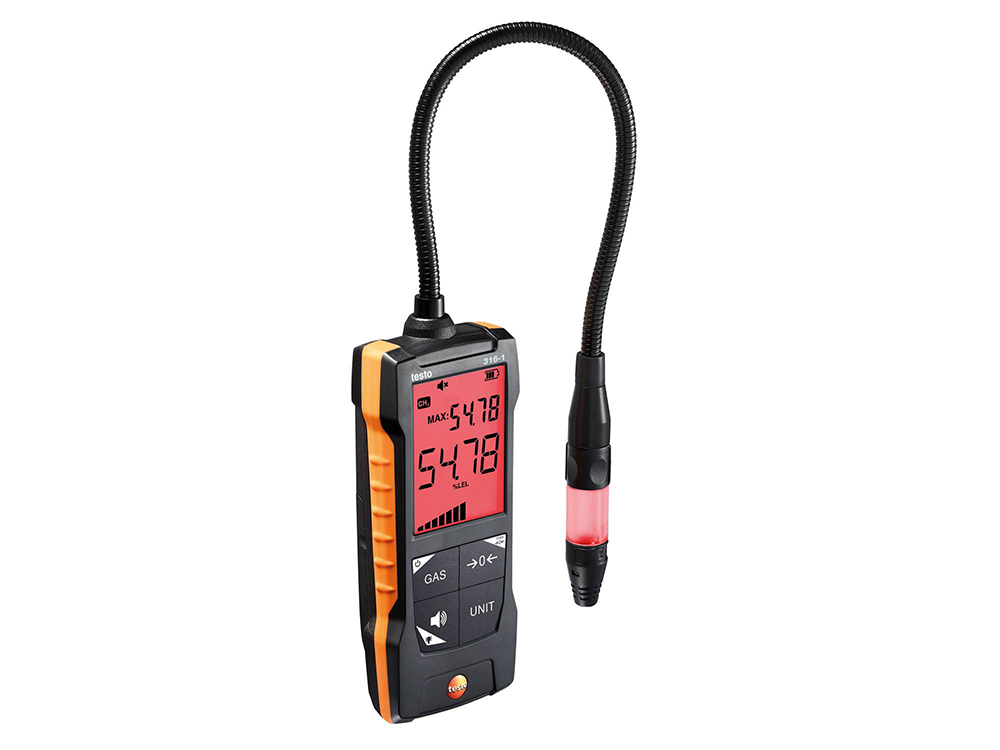

- Acoustic and visual alarm via multi-color LED on the sensor head
- Display of ppm / vol% / %LEL on the instrument
- Sensor self-test and automatic zeroing
- Flexible probe for locations that are difficult to access
| Methane (CH4) | |
| Measuring range | 50 ppm to 4.0 Vol.% |
| Resolution | 1 ppm |
| Propane (C3H8) | |
| Measuring range | 50 ppm to 1.9 Vol.% |
| Resolution | 1 ppm |
| Butane (C4H10) | |
| Measuring range | 50 ppm to 1.5 Vol.% |
| Resolution | 1 ppm |
| Leak detection H2 | |
| Measuring range | 50 ppm to 4.0 Vol.% |
| Resolution | 1 ppm |
| General technical data | |
| Operating humidity | 0 to +80 %rH |
| Weight | 15 oz. / 415 g |
| Reaction time | < 2 sec |
| Dimensions | 6 x 3 x 1 in. (LxWxH) / 150 x 66 x 38 mm (LxWxH) |
| Operating temperature | -4 to +122 °F / -20 to +50 °C |
| Leakage alarm | 3-colour LED on sensor head; 3-colour display backlight; acoustic |
| Length of gooseneck | 15.551 in. / 395 mm |
| Battery life | >15 h |
| Storage temperature | -4 to +122 °F / -20 to +50 °C |
