Jenco Conductivity/TDS/Temp Industrial Online Controller - 6312CTB

Jenco Conductivity/TDS/Temp Industrial Online Controller - 6312CTB

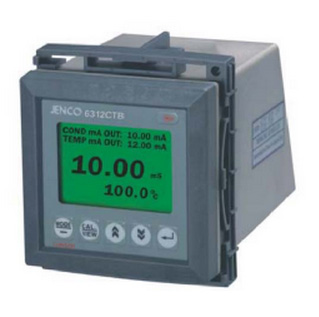

6312CTB Conductivity/TDS/Temp Industrial Online Controller by Jenco

  • Graphic LCD with manual backlight displays conductivity/TDS, temperature, relay status and transmitter current mA output simultaneously.
  • Convenient one point calibration and calibration data is stored in memory and is ready for use on power up.
  • Two sets of Isolated and reversible 4-20 mA current output for conductivity and temperature allows it to be used as a proportional output.
  • 2 programmable on/off relays conductivity.
  • RS-485 output for remote access allows multiple units to be connected and ganged together.
  • Password protection.
Range K=0.01cm-1: 0.000 to 9.999uS/cm, 0.000 to 5.000ppm; 10.00 to 99.99uS/cm, 5.00 to 50.00ppm; 100.0 to 300.9uS/cm, 50.0 to 150.0ppm
K=0.1cm-1: 10.00 to 99.99uS/cm, 5.00 to 5.000ppm; 100.0 to 999.9uS/cm, 50.0 to 500.0ppm; 1.000 to 3.000mS/cm, 0.500 to 1.500ppt
K=1.0cm-1: 100.0 to 999.9uS/cm, 50.0 to 500.0ppm;1.000 to 9.999mS/cm, 0.5000 to 5.000ppt; 10.00 to 30.00mS/cm, 5.00 to 15.00ppt
K=10.0cm-1: 1.000 to 9.999mS/cm, 0.000 to 5.000ppt; 10.00 to 99.99mS/cm, 0.5.00 to 50.00ppt; 100.0 to 300.0mS/cm, 50.0 to 150.0ppt
Temperature: -10.0 to 120.0°C
Resolution K=0.01cm-1: 0.001uS/cm, 0.001ppm; 0.01uS/cm, 0.01ppm; 0.1uS/cm, 0.1ppm
K=0.1cm-1: 0.01uS/cm, 0.1ppm; 0.1uS/cm, 0.1ppm; 0.001mS/cm, 0.001ppt
K=1.0cm-1: 0.1uS/cm, 0.001ppt; 0.001mS/cm, 0.001ppt; 0.01mS/cm, 0.01ppt
K=10.0cm-1: 0.001mS/cm, 0.001ppt; 0.01mS/cm, 0.01ppt; 0.1mS/cm, 0.1ppt
Temperature: 0.1°C
Accuracy K=0.01cm-1: ±0.5%FS, ±1digit; ±0.5%FS, ±1digit; ±0.5%FS, ±1digit
K=0.1cm-1: ±0.5%FS, ±1digit; ±0.5%FS, ±1digit; ±0.5%FS, ±1digit
K=1.0cm-1: ±0.5%FS, ±1digit; ±0.5%FS, ±1digit; ±0.5%FS, ±1digit
K=10.0cm-1: ±0.5%FS, ±1digit; ±0.5%FS, ±1digit; ±0.5%FS, ±1digit
Temperature: ±0.3°C
Temperature Compensation Auto -10.0 to 120.0°C(Thermistor, 10K ohm at 25.0 °C)
Cell Constant 0.01, 0.1 , 1.0 ,10cm(exp)-1, 2 wire or 4 wire
Reference Termperature From 10.0 to 29.0°C,user selectable
Temperature Coefficient From 10.0 to 29°C, user selectable
Output Two current outputs for conducitivity and temperature
Current Output Range 4 to 20 mA(isolated), programmable span
Current Output Scale User programmable ,linear
Maximum Load 500 ohm /500V DC
Control Type 2 ON/OFF controls
Relay Output 5A at 115V AC or 2.5A at 220V AC, resistive load only
Display 128 x 64 graphical LCD with backlight
Security 4-digit password
Power 115 V AC or 230V AC at 50/60 HZ
Ambient Temperature Range From 0 to 50°C
Weight/Case 950 grams / IP 65 ,1/4 DIN case, 148mm depth
