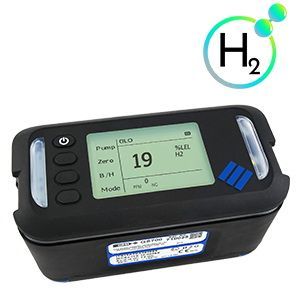

GMI Gasurveyor 700 Infrared Gas Leak Detector, PPM / LEL / Volume (CH4 & H2) + PGT (Alkaline), Hydrogen Ready - 7510000AC001

Item #:

7510000AC001

Brand:

GMI

GMI Gasurveyor 700 Infrared Gas Leak Detector, PPM / LEL / Volume (CH4 & H2) + PGT (Alkaline), Hydrogen Ready - 7510000AC001

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

7510000AC001 Gasurveyor 700 Infrared Gas Leak Detector, PPM / LEL / Volume (CH4 & H2) + PGT (Alkaline), Hydrogen Ready by GMI

Ensuring compliance

Intelligent data-logging functionality together with optional GPS mapping simplifies data gathering.

Natural gas discrimination

Quickly determines the source of gas leaks, whether it's pipeline gas or naturally occurring biogas; saving valuable time and reducing detection related costs.

Application ready

Highly configurable to our customers' gas detection needs, providing flexibility of use without compromising on performance.

Application modes include:

Combustible Gas Indicator
Purge
Barhole
Pipeline Gas Test (PGT)
Search

Additional Features

PPM, LEL & Volume capability
Combined or individual LEL readings for Natural Gas and Hydrogen
Barhole Mode
Soft-key Operation
Communication: IrDA & Bluetooth (optional)
360° Alarms
Lightweight & Rugged
Ingress Protection - IP55
Alkaline or Rechargeable battery options

Specifications

Size:	190 x 98 x 107 mm
Weight:	1.4 kg (Alkaline), 1.3 kg (Rechargeable)
Display:	Monochrome LCD with automatic backlighting
Temperature:	-20° C to +50° C (-4° F to +122° F)
Humidity:	0 - 90% RH non-condensing
Sampling:	Integral pump with flow fail sensor +sample path is protected by a hydrophobic & cotton filter
Alarms:	360° Highly visible flashing LED Sounder ~ 85 dB at 0.3 m
Datalogging:	Capacity: 500 session logs Session log: user ID, date & time, gas readings, alarms, calibration / bump test data, barhole data, PGT logs » Log Extraction: Infrared or Bluetooth (optional) » Location data via GPS (optional)
GPS:	Logs the GS700 location (optional). Extracted location data is stored with a date / time stamp.
Battery:	3 x LR20 ‘D’ size Alkaline Cells or Rechargeable Battery Pack
Battery Life:	Typically: 15 hrs Alkaline, 20 hrs Rechargeable
Charge Time:	Typically: 6 hrs
Construction:	Antistatic Polycarbonate ABS with conductive TPE over-moulding
Rating:	IP55 (Protected from Dust & Water Jets)
Warranty:	2 years
