ADi AgrowDose™ Digital Intelligent Dosing Pumps

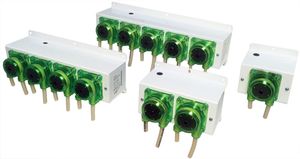

AgrowDose™ ADi Digital Persitaltic Dosing Pumps by Agrowtek

AgrowDose™ ADi series "intelligent" dosing pumps are digitally controlled, variable speed capable next-generation pumps for use with Agrowtek's SXH hydroponics sensors as an autonomous pH & EC dosing system. Available in 1, 2, 4, or 5 pump models.

Rugged and economical peristaltic pumps are designed for injecting nutrient solutions, pH buffers and other chemicals into stock tanks or pressurized water lines up to 20psi. Pump heads feature a suction intlet tube and a pressurized outlet tube. Simply place the inlet side into any size nutrient or buffer stock tank and route the outlet to the reservoir. Pumps can draw solutions up to 10ft vertical lift and do not require priming. Peristaltic action resists fouling or clogging even with thick fluids.

ADi pump motors operate independently when connected to intelligent control devices such as Agrowtek's SXH pH/EC hydro sensors or PHX pH sensors, or from a computer using the LX1 USB AgrowLINK for batch dosing.

Quick-change replaceable pump heads offers fast, easy maintenance when tubing wears out.

• 120Vac/12Vdc Power adapter included for motors
• 1/4" OD x 3/16" ID FDA Tubing
• 50mL/min per pump

Applications

• Greenhouses & Growing Facilities Hydroponics pH Control
• Agricultural & Aquaponics
• Aquarium
• Pool & Spa
• Analytical, Research & Academic
• Industrial Process Water

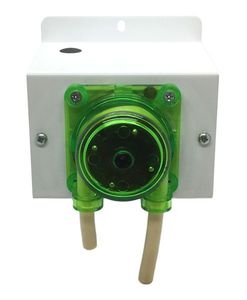

AgrowDose™ AD1i Single Intelligent Dosing Pump by Agrowtek

AgrowDose AD1 "single" peristaltic dosing pump for injecting nutrient solutions, pH buffers, chlorine, chemicals, food and beverage mixing, and more. Pump precise volumes of liquids at variable flow rates into reservoirs or pressurized lines (up to 25psi.)

AgrowDose pumps connect instantly to Agrowtek's intelligent SXH and PHX dosing controllers through the GrowNET™ port for advanced automated dosing functions. Use stand-alone with the LX1 USB AgrowLINK for PC batch dosing, or the LX2 ModLINK for MODBUS.

Pumps can draw solutions up to 10ft vertical lift and do not require priming. Peristaltic action resists fouling or clogging even with thick fluids.

Features

• Single dosing pump
• Precision dosing accuracy < 1mL: Variable speed, reversable
• 12V DC input power: 120V Wall adapter included
• Easy-change pump heads: Twist & replace; no tools required
• 1-Year Warranty
• WiFi optional
• GrowNET™ Digital Communication Port
• MODBUS RTU for industrial PLC control: Independent variable speeds, reversable
• Durable powder-coated steel enclosure
• Made in USA

AgrowDose™ AD2i Dual Intelligent Dosing Pump by Agrowtek

AgrowDose AD2 "dual" peristaltic dosing pump with two independent pump heads for injecting nutrient solutions, pH buffers, chlorine, chemicals, food and beverage mixing, and more. Pump precise volumes of liquids at variable flow rates into reservoirs or pressurized lines (up to 25psi.)

AgrowDose pumps connect instantly to Agrowtek's intelligent SXH and PHX dosing controllers through the GrowNET™ port for advanced automated dosing functions. Use stand-alone with the LX1 USB AgrowLINK for PC batch dosing, or the LX2 ModLINK for MODBUS.

Pumps can draw solutions up to 10ft vertical lift and do not require priming. Peristaltic action resists fouling or clogging even with thick fluids.

Features

• Two independent dosing pumps
• Precision dosing accuracy
• 12V DC input power: 120V Wall adapter included
• Easy-change pump heads: Twist & replace; no tools required
• 1-Year Warranty
• WiFi optional
• GrowNET™ Digital Communication Port
• MODBUS RTU for industrial PLC control: Independent variable speeds, reversable
• Durable powder-coated steel enclosure
• Made in USA

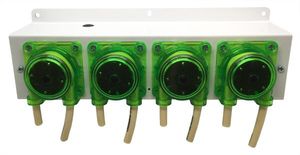

AgrowDose™ AD4i Quad Intelligent Dosing Pump by Agrowtek

AgrowDose AD4 "quad" peristaltic dosing pump with four independent pump heads for injecting nutrient solutions, pH buffers, chlorine, chemicals, food and beverage mixing, and more. Pump precise volumes of liquids at variable flow rates into reservoirs or pressurized lines (up to 25psi.)

AgrowDose pumps connect instantly to Agrowtek's intelligent SXH and PHX dosing controllers through the GrowNET™ port for advanced automated dosing functions. Use stand-alone with the LX1 USB AgrowLINK for PC batch dosing, or the LX2 ModLINK for MODBUS.

Pumps can draw solutions up to 10ft vertical lift and do not require priming. Peristaltic action resists fouling or clogging even with thick fluids.

Features

• Four independent dosing pumps
• Precision dosing accuracy < 1mL: Variable speed, reversable
• 12V DC input power: 120V Wall adapter included
• Easy-change pump heads: Twist & replace; no tools required
• 1-Year Warranty
• WiFi optional
• GrowNET™ Digital Communication Port
• MODBUS RTU for industrial PLC control: Independent variable speeds, reversable
• Durable powder-coated steel enclosure
• Made in USA

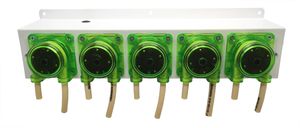

AgrowDose™ AD5i Penta Intelligent Dosing Pump by Agrowtek

AgrowDose AD5 "penta" peristaltic dosing pump with five independent pump heads for injecting nutrient solutions, pH buffers, chlorine, chemicals, food and beverage mixing, and more. Pump precise volumes of liquids at variable flow rates into reservoirs or pressurized lines (up to 25psi.)

AgrowDose pumps connect instantly to Agrowtek's intelligent SXH and PHX dosing controllers through the GrowNET™ port for advanced automated dosing functions. Use stand-alone with the LX1 USB AgrowLINK for PC batch dosing, or the LX2 ModLINK for MODBUS.

Pumps can draw solutions up to 10ft vertical lift and do not require priming. Peristaltic action resists fouling or clogging even with thick fluids.

Features

• Five independent dosing pumps
• Precision dosing accuracy < 1mL: Variable speed, reversable
• 12V DC input power: 120V Wall adapter included
• Easy-change pump heads: Twist & replace; no tools required
• 1-Year Warranty
• WiFi optional
• GrowNET™ Digital Communication Port
• MODBUS RTU for industrial PLC control: Independent variable speeds, reversable
• Durable powder-coated steel enclosure
• Made in USA
