Agrowtek AgrowDose AD1i Single Intelligent Dosing Pump
Item #:
AT-AD1i
Brand:
Agrowtek
Share this product:

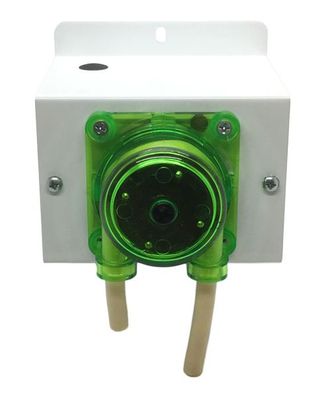

AgrowDose™ AD1i Single Intelligent Dosing Pump by Agrowtek
AgrowDose AD1 "single" peristaltic dosing pump for injecting nutrient solutions, pH buffers, chlorine, chemicals, food and beverage mixing, and more. Pump precise volumes of liquids at variable flow rates into reservoirs or pressurized lines (up to 25psi.)
AgrowDose pumps connect instantly to Agrowtek's intelligent SXH and PHX dosing controllers through the GrowNET™ port for advanced automated dosing functions. Use stand-alone with the LX1 USB AgrowLINK for PC batch dosing, or the LX2 ModLINK for MODBUS.
Pumps can draw solutions up to 10ft vertical lift and do not require priming. Peristaltic action resists fouling or clogging even with thick fluids.
Features
- Single dosing pump
- Precision dosing accuracy < 1mL: Variable speed, reversable
- 12V DC input power: 120V Wall adapter included
- Easy-change pump heads: Twist & replace; no tools required
- 1-Year Warranty
- WiFi optional
- GrowNET™ Digital Communication Port
- MODBUS RTU for industrial PLC control: Independent variable speeds, reversable
- Durable powder-coated steel enclosure
- Made in USA
| Power | 12Vdc, 1Amp |
| Pump Heads | 1, 2, 4 or 5 |
| Flow Rate | Variable, 20-55mL/min |
| Tubing Material | FDA Approved Norprene |
| Tubing Size | 1/4" O.D. x 3/16" I.D. |
| Max Outlet Pressure | 25psi |
| Minimum Dose Size | 1mL |
Datasheets & User Manuals
Questions & Answers
1 Question &
1 Answer
brad vantassel
from Ft Lauderdale, FL asked:
December 1, 2019
I am looking for a 120 volt, programmable, low flow acid pimp to control PH in customer's swimming pools. The pump will pump HCL in a dilute concentration and should be able to pump small volumes daily. The connections are 1/4 inch ID tubing.
Please call or email me with solutions. My cell is 7135949304.
Please call or email me with solutions. My cell is 7135949304.
1 Answer
Hi Brad,
Thank you for the question.Â
The AD1 is run off of 120V powere at a fixed flow rate
(55ml/min or 200ml/min depending on the model speed option.) It requires atimer to control power to the pump.
The AD1i has a digital MODBUS control interface and require the LX2 modlinkand some sort of PLC to control it via MODBUS.
https://www.jjstech.com/at-ad1i.html
Finally, we have the MPX mini-doser that combines a pH sensor unit with theAD1i or an AD2i. The pH sensor unit can operate the ADi pumps according to thepH readings.
https://www.jjstech.com/agrowtek-mini-control-systems-mpx-ph---orp--dosing-system.html
Submitted by:
Joe Spratley
on December 2, 2019
