Agrowtek DXI8 DC 8-Input Module

DXI8 DC 8-Input Module by Agrowtek

DXI8 digital control interface features eight (8) analog inputs selectable for 0-5V or 0/4-20mA. Analog inputs third-party analog 5V or current-loop sensor integration, as well as discrete sensor detection for SXL liquid sensors, float switches, and other dry-contact type sensors. On-board 500mA 5Vdc power supply provides stable power for analog or discrete sensing applications.

Connects instantly to Agrowtek's master control systems or intelligent sensors via a GrowNET port for advanced automated control functions. GrowNET port accepts MODBUS RTU communication for PLC control.

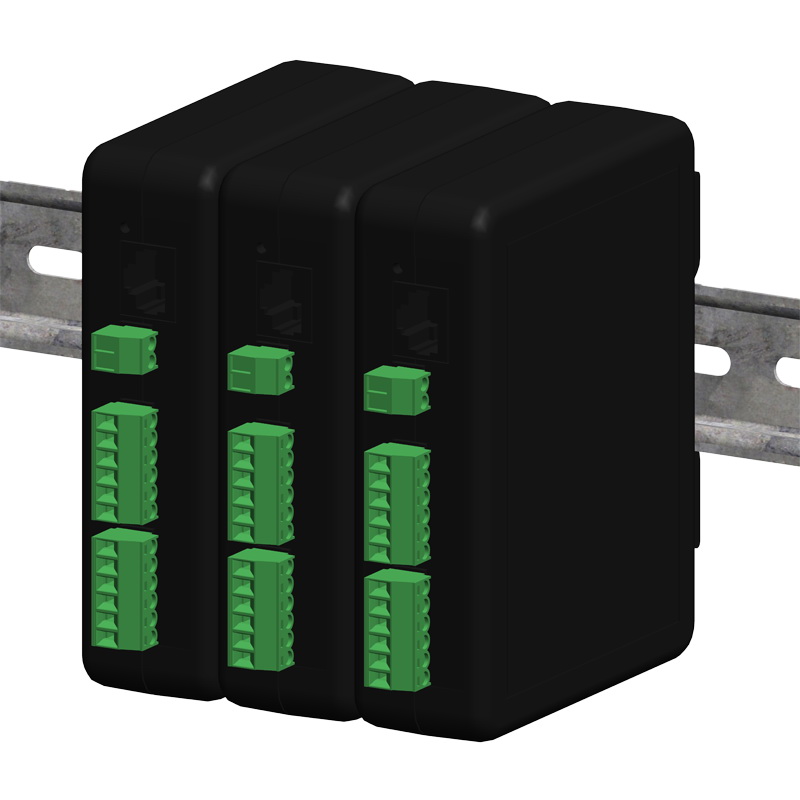

LED indicators on the front panel provide status of power supply and data communications. Designed for DIN rail mounting in control cabinets.

UL Listing pending.

Features

• Eight (8) 0-5Vdc Analog Inputs
• All Channels 0/4-20mA Selectable
• GrowNET™ Digital Communication Port
• MODBUS RTU for industrial PLC applications 9-24Vdc, DIN rail mount
• Made in USA
• 1-Year Warranty

Applications

• Soil Moisture Sensors
• Industrial Sensors 0-5V or 4-20mA
• Discrete Sensor Inputs Float Switches, Door Sensors, etc.
• SXL Optical Liquid Sensors Automate Drain/Fill with GCX System
