Agrowtek DXV4 Dimming Controller, 0-10V Output Module

Item #:

AT-DXV4

Brand:

Agrowtek

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

DXV4 Dimming Controller, 0-10V Output Module by Agrowtek

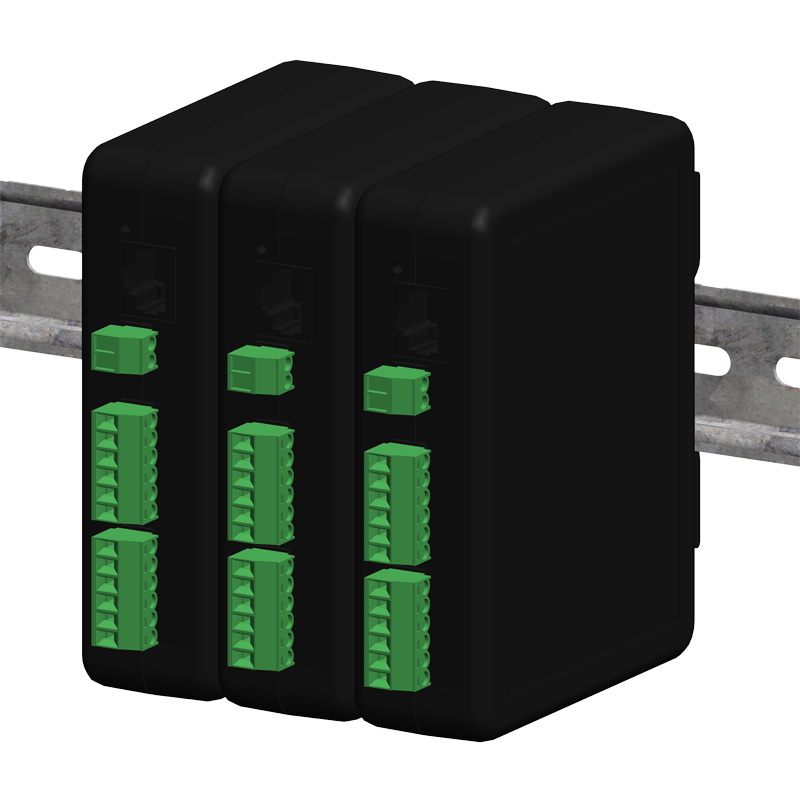

GrowControl™ DXV4 modules for DIN rail feature four (4) 0-10V analog outputs for dimming lighting zones and other analog control. Dim up to 50 light fixtures per output channel.

DX series modules can be operated on 12-24Vdc. DXV4 modules perform with the highest accuracy on 24Vdc.

GrowNET™ port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.

Features

0-10V (11V max) DC Outputs
Drive up to 50 Fixtures per Channel
Digital Control, MODBUS Addressable
Made in USA

Applications

Greenhouses & Growing Facilities
Building Automation
Industrial Automation
OEM & Custom Applications

Specifications

Input Power	9-24Vdc, 1A MAX Class II / Limited Energy Power Supply
Max Switching Current	1A per point
Max Switching Voltage	24Vdc
Transitor Outputs	Sourcing FETS, 1A
PWM on Transistor Outputs	6 Channels, 1kHz
Analog Inputs	0-5Vdc / 0-20mA, 12-Bit Jumper Selectable
Analog Outputs	0-10Vdc, 10mA max
Analog Sensor Power	5Vdc, 500mA max (onboard)
Enclosure Knock-Outs	(2) dia. 7/8"
Enclosure Rating	TYPE 12 NEMA
Minimum Cycle Time	1 second
Interface	GrowNET™, MODBUS
Terminal Wire Guage	26 - 16 AWG
Tightening Torque	0.3-0.4 Nm
