IVC Certified Crane Monitoring Camera Systems - CZ-3041-1-36SS10S0AC

IVC Certified Crane Monitoring Camera Systems - CZ-3041-1-36SS10S0AC


CZ-3041-1-36SS10S0AC Certified Crane Monitoring Camera Systems by IVC

The CZ-3041-1 is a high quality video solution designed to be mounted on crane booms. A high-resolution, analog, color video camera is housed in a rugged weatherproof enclosure suitable for hostile environments. The enclosure is sealed and certified for Class I Division 1, groups B, C and D, Class II Division 1 groups E, F, and G, AEx d IIC, ATEX Exd IIC.

The complete assembly is suitable for outdoor use (Type 4X/ IP66). The camera provides increased operational awareness for crane operators, even in poor lighting or weather conditions. The result is improved crane operation safety and efficiency. The 26x zoom camera is a high performance low-light camera with image stabilized video.

It automatically switches to black and white and removes an IR cut filter to increase sensitivity in low light conditions.

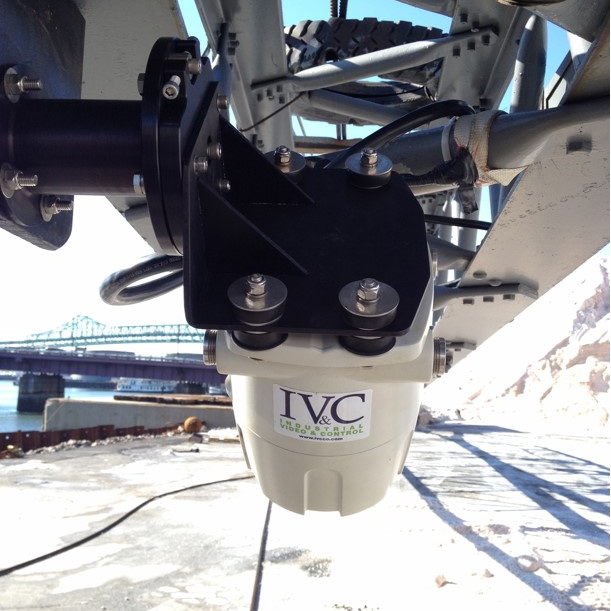

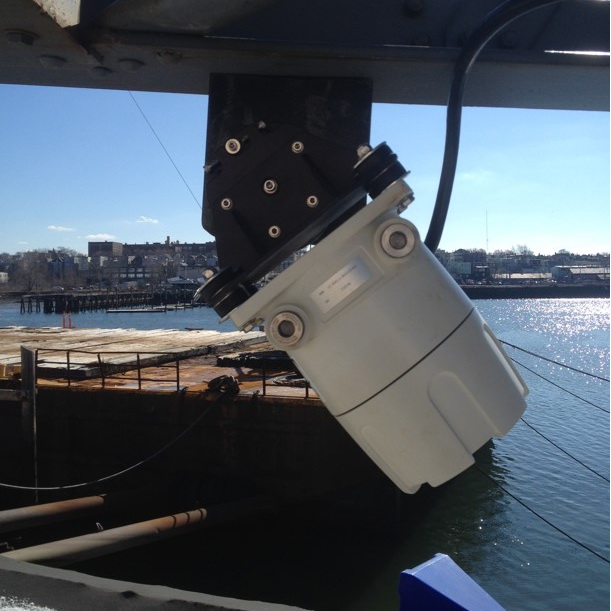

The camera enclosure is mounted on an adjustable camera stabilization and vibration dampening mechanism. This mechanism provides smooth and reliable operation under the most demanding conditions. The camera may be ordered with a safe or hazardous area remote control and color display monitor. The remote controls provide push button management of camera zoom, focus, and auto white balancing functions.


  • Provides increased crane operator awareness
  • Explosion-proof, outdoor zoom camera
  • Advanced camera stabilization system
  • Day/night switching
  • 36x optical zoom
Imager 1/4" Sony ExView CCD
Resolution 640 x 480
Shutter Speed 1 to 1/10,000 seconds
Minimum Illumination 1.4 lx (F1.6, 50IRE)
F number F1.4 to F4.5
Focal Length 3.4 to 122.4 mm
View Angle 1.7° to 57.8°
Zoom ratio 36x
Iris Auto and Manual
Day/night Auto
Focus Auto and Manual
White Balance Auto, Manual, ATW
Connection 1.0Vp-p; 75Ω on BNC
Frame Rate 30 FPS
Voltage Required 100 - 240 VAC
Power Consumption Camera: 3W
ATEX Monitor: 10W
Safe Area Monitor: 10W
Camera Weight 29.0 lbs.
Operating Temperature 0° C to 50° C

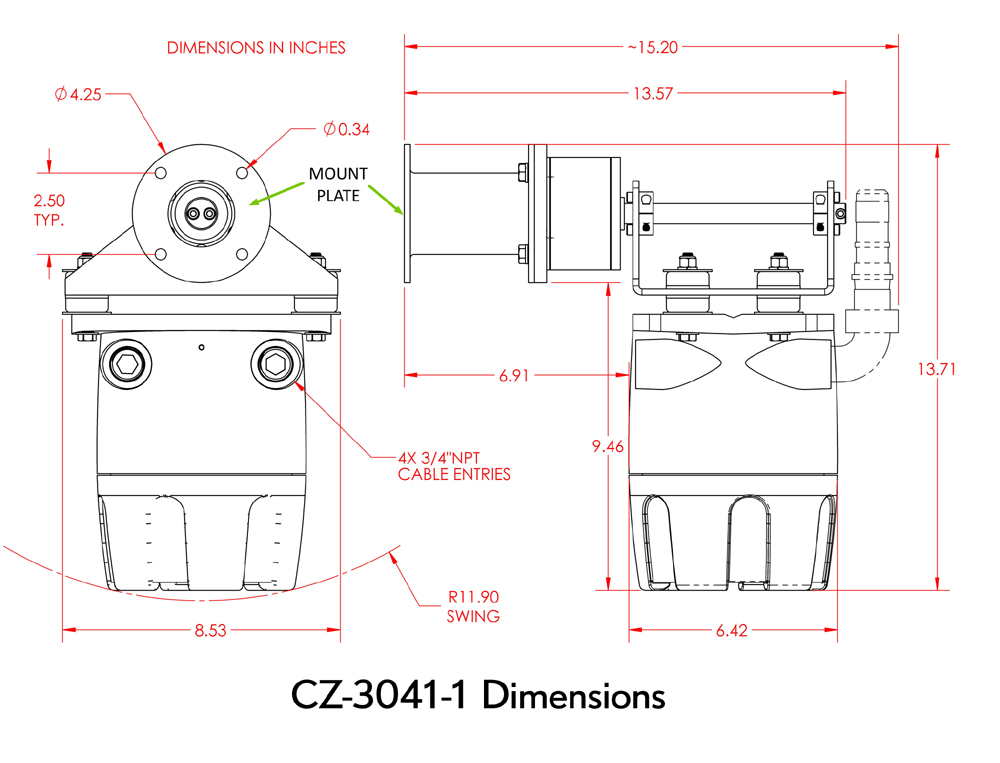

Dimensions Camera: 8.3" x 14.2" x 14.0"
ATEX Monitor: 13.1" x 17.0" x 9.0"
Safe Area Box: 10.0" x 6.8" x 6.0"
Safe Area Monitor: 10.2" x 7.7" x 1.6"
Mount Crane mount standard
Camera Enclosure Rating Class I Division 1, Groups B, C & D,
Class II Division 1, Groups E, F & G,
Class III Division 1, Groups E, F & G,
Type 4X, IP66
