Analog Cameras

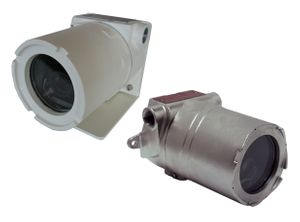

AMZ-3041-2-24A Rugged Fixed Analog Camera by IVC

The AMZ-3041-2 is a high quality, high-resolution, analog, day/night video camera with a vari-focal and auto iris-lens. A variety of lens options are available to suit any application.

The camera is housed in a heavy-duty, cast-aluminum, weatherproof enclosure suitable for hostile environments. The camera is sealed and certified for use in hazardous areas. The complete assembly is rated NEMA 7/4x. A stainless-steel enclosure option is also available.

The AMZ-3041-2 is ready for mounting using the included mounting arm. The camera requires only power and a coax video connection. A separate video encoder is required to IP-enable this camera system.

Features

• Indoor/outdoor fixed camera
• -40° to 60° range of operation
• 12 VDC and 24 VDC versions
• Wide dynamic range
• Certifed for use in hazardous areas

AMZ-3041-2-24A-S Rugged Fixed Analog Camera by IVC

The AMZ-3041-2 is a high quality, high-resolution, analog, day/night video camera with a vari-focal and auto iris-lens. A variety of lens options are available to suit any application.

The camera is housed in a heavy-duty, cast-aluminum, weatherproof enclosure suitable for hostile environments. The camera is sealed and certified for use in hazardous areas. The complete assembly is rated NEMA 7/4x. A stainless-steel enclosure option is also available.

The AMZ-3041-2 is ready for mounting using the included mounting arm. The camera requires only power and a coax video connection. A separate video encoder is required to IP-enable this camera system.

Features

• Indoor/outdoor fixed camera
• -40° to 60° range of operation
• 12 VDC and 24 VDC versions
• Wide dynamic range
• Certifed for use in hazardous areas

AMZ-3041-2-12 Rugged Fixed Analog Camera by IVC

The AMZ-3041-2 is a high quality, high-resolution, analog, day/night video camera with a vari-focal and auto iris-lens. A variety of lens options are available to suit any application.

The camera is housed in a heavy-duty, cast-aluminum, weatherproof enclosure suitable for hostile environments. The camera is sealed and certified for use in hazardous areas. The complete assembly is rated NEMA 7/4x. A stainless-steel enclosure option is also available.

The AMZ-3041-2 is ready for mounting using the included mounting arm. The camera requires only power and a coax video connection. A separate video encoder is required to IP-enable this camera system.

Features

• Indoor/outdoor fixed camera
• -40° to 60° range of operation
• 12 VDC and 24 VDC versions
• Wide dynamic range
• Certifed for use in hazardous areas

AMZ-3041-2-12-S Rugged Fixed Analog Camera by IVC

The AMZ-3041-2 is a high quality, high-resolution, analog, day/night video camera with a vari-focal and auto iris-lens. A variety of lens options are available to suit any application.

The camera is housed in a heavy-duty, cast-aluminum, weatherproof enclosure suitable for hostile environments. The camera is sealed and certified for use in hazardous areas. The complete assembly is rated NEMA 7/4x. A stainless-steel enclosure option is also available.

The AMZ-3041-2 is ready for mounting using the included mounting arm. The camera requires only power and a coax video connection. A separate video encoder is required to IP-enable this camera system.

Features

• Indoor/outdoor fixed camera
• -40° to 60° range of operation
• 12 VDC and 24 VDC versions
• Wide dynamic range
• Certifed for use in hazardous areas

APTZ-3045-04 Explosion-proof Pan / Tilt / Zoom Camera by IVC

The APTZ-3045-04 is a high quality, high-resolution color video camera with outstanding low-light performance. It has a 36x motor-driven optical zoom. This PTZ camera is a high-performance, low-light camera that automatically switches to black and white and removes an IR cut filter to increase sensitivity in low light conditions.

The camera is housed in a stainless-steel enclosure certified for Class I Division 1, groups B, C, and D. IP connection requires a separate encoder.

Features

• Rugged outdoor 36x PTZ camera
• 316L stainless steel
• Designed for environments classified as hazardous
• Certified Class I Division 1

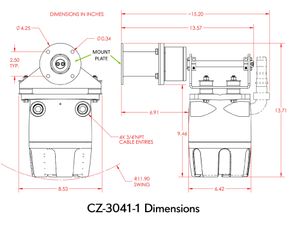

CZ-3041-1-36SS10S0AC Certified Crane Monitoring Camera Systems by IVC

The CZ-3041-1 is a high quality video solution designed to be mounted on crane booms. A high-resolution, analog, color video camera is housed in a rugged weatherproof enclosure suitable for hostile environments. The enclosure is sealed and certified for Class I Division 1, groups B, C and D, Class II Division 1 groups E, F, and G, AEx d IIC, ATEX Exd IIC.

The complete assembly is suitable for outdoor use (Type 4X/ IP66). The camera provides increased operational awareness for crane operators, even in poor lighting or weather conditions. The result is improved crane operation safety and efficiency. The 26x zoom camera is a high performance low-light camera with image stabilized video.

It automatically switches to black and white and removes an IR cut filter to increase sensitivity in low light conditions.

The camera enclosure is mounted on an adjustable camera stabilization and vibration dampening mechanism. This mechanism provides smooth and reliable operation under the most demanding conditions. The camera may be ordered with a safe or hazardous area remote control and color display monitor. The remote controls provide push button management of camera zoom, focus, and auto white balancing functions.

Features

• Provides increased crane operator awareness
• Explosion-proof, outdoor zoom camera
• Advanced camera stabilization system
• Day/night switching
• 36x optical zoom
