Digi-Sense Professional Vane Thermoanemometer with CFM/CMM and NIST Traceable Calibration - WD-20250-15
Item #:
DS-WD-20250-15
Brand:
Digi-Sense
Share this product:

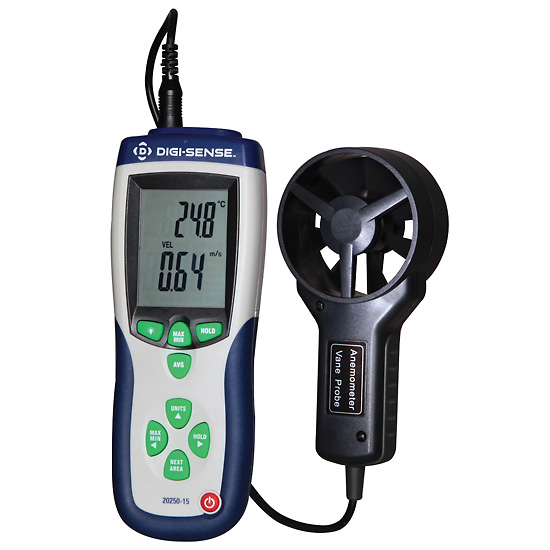

WD-20250-15 Professional Vane Thermoanemometer with CFM/CMM and NIST Traceable Calibration by Digi-Sense
This thermoanemometer provides precision air velocity and airflow measurements, ideal for helping you meet cooling and environmental requirements. Large dual display for simultaneously reading of air velocity or airflow and air temperature.
Features
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
- User-selectable units of measure of ft/min, m/s, mph, km/h, knots, CFM, and CMM
- Measure air velocities up to 5900 ft/min (30 m/s)
- Measure airflow up to 999,900 CFM (999,900 CMM)
- Large dual-function 4-digit LCD with backlight for easy reading in dimly lit conditions
- Auto power-off extends battery life
- Intuitive operation with easy access to temperature and airflow functionality
- Measure air velocity and temperature in single point or averaging mode to best fit the application
Applications
- Analyze, balance, and troubleshoot ventilation performance in protected storage areas, home, and office environments
- Assess cooling air volume in temperature-controlled processing environments
- Measure outdoor wind velocities
Includes
Vane probe sensor with 3.9-ft (120-cm) cable, hard carrying case, one 9 V battery, and NIST-traceable certificate with data and uncertainties.
| Units | Range |
Resolution |
Accuracy |
| Air velocity | |||
| Meters per second | 0.40 to 30.00 |
0.01 |
±(3% + 0.20 m/s) |
| Kilometers per hour | 1.4 to 108.0 |
0.1 |
±(3% + 0.8 km/hr) |
| Feet per minute | 80 to 5900 |
1 |
±(3% + 40 ft/m) |
| Miles per hour | 0.9 to 67.0 |
0.1 |
±(3% + 0.4 MPH) |
| Knots | 0.8 to 58.0 |
0.1 |
±(3% + 0.4 knot) |
| Airflow | |||
| CFM (cubic feet per min) | 0 to 999,900 |
0.001 to 100 |
0.000 to 999.9 ft2 |
| CMM (cubic meter per min) | 0 to 999,900 |
0.001 to 100 |
0 .000 to 999.9 m2 |
| Air Temperature | 32 to 122°F (0 to 50°C) |
0.1°F/C |
4.0°F (2.0°C) |
| Functions | measure, max/min/avg, hold reading |
| User-selectable units | ft/min, m/s, mph, km/h, knots, CFM, CMM, °F, °C |
| Display | dual function 4-digit LCD |
| Sampling rate | approximately one reading per second |
| Airflow memory locations | sixteen commonly used area sizes (eight for CFM and eight for CMM) |
| Dimensions | 8" x 3" x 2" (20.3 x 7.5 x 5 cm) |
| Power | one 9 V battery, 80 hours typical battery life depending on backlight usage |
