Description

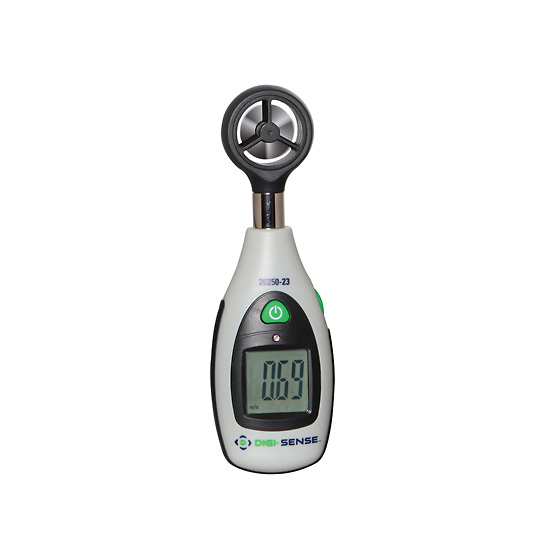

WD-20250-23 Mini Vane Anemometer with NIST Traceable Calibration by Digi-Sense

Precision, value, and convenient size in one meter! The Digi-Sense compact vane anemometer delivers accurate airflow measurements in seven user-selectable units. Its small comfort grip and ergonomically placed pushbuttons allow you to easily select either maximum or average air velocity readings.

Features

Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
User-selectable units of measurement: ft/min, m/s, mph, km/h, or knots
Measure air velocities up to 5900 ft/min (30 m/s)
Manage airflow measurements easily with Max/Avg functionality
Unique backlight sensor is automatically activated by low-light conditions—no need to manually turn on
Auto power-off extends battery life

Applications

Measure component cooling air velocities
Assess ventilation air velocities in working, living, and storage areas
Analyze and troubleshoot ventilation performance
Measure outdoor wind velocities

Includes

One 9 V battery and NIST-traceable certificate with data and uncertainties.

Specifications

Units	Range	Resolution	Accuracy
Air velocity
Feet per minute (ft/min)	80 to 5900	1	±(3% + 40 ft/min)
Meters per second (m/s)	1.1 to 30.00	0.01	±(3% + 0.20 m/s)
Miles per hour (mph)	0.9 to 67.0	0.1	±(3% + 0.4 mph)
Kilometers per hour (km/h)	0.8 to 108.0	0.1	±(3% + 1 km/h)
Knots	0.8 to 58.0	0.1	±(3% + 0.4 knots)

Functions	measure, max/average, auto backlight
User-selectable units	ft/min, m/s, mph, km/h, knots
Display	auto backlight LCD
Dimensions	5 1⁄2" x 2 1⁄8" x 1 3⁄8" (16.5 x 5.4 x 3.4 cm)
Power	one 9 V battery
Sampling rate	approximately 1 per second
