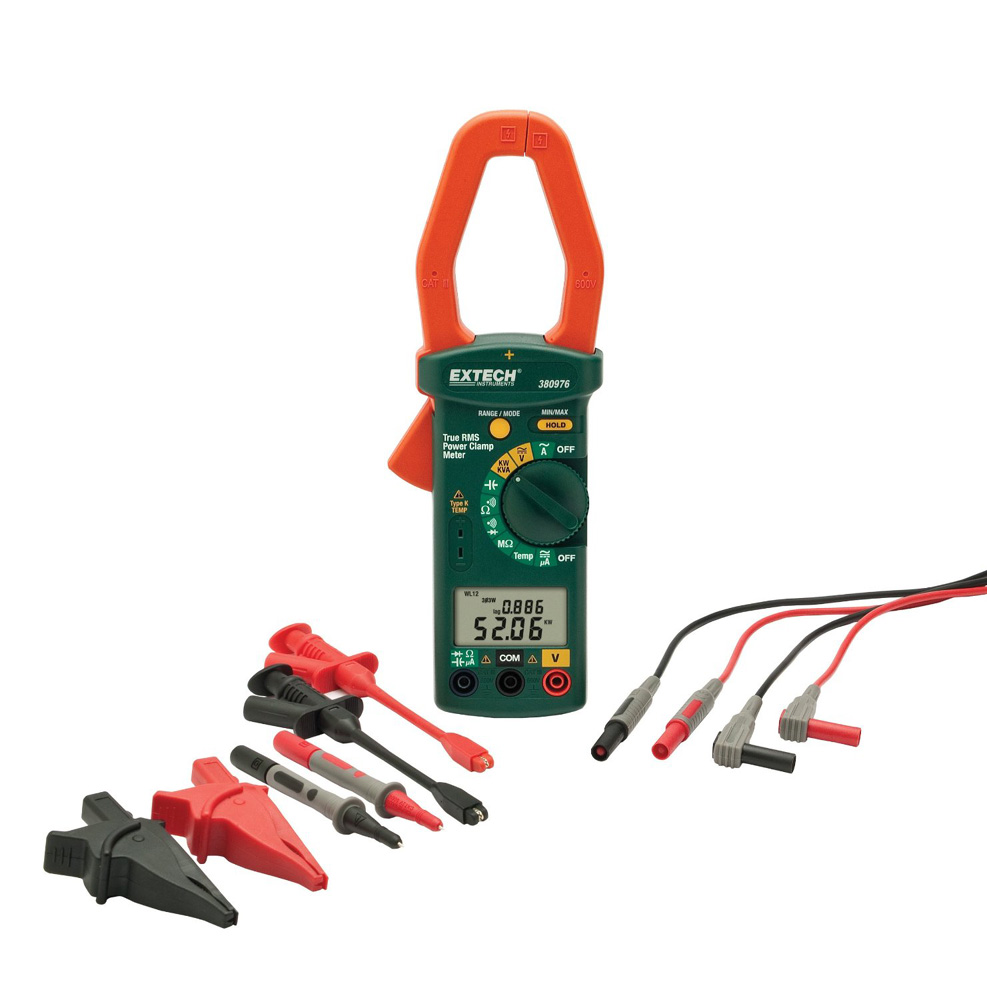

380976-K Single Phase/Three Phase 1000A AC Power Clamp Meter Kit by Extech

Features

Large dual LCD display (9999 count)
Measures 1Φ/3Φ True Power (kW), Apparent Power (kVA), and Reactive Power (kVAR), plus Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
AC+DC μA current with 10nA resolution for flame rod tests
Max/Min recording with elapsed time indication
Auto Detect AC/DC Voltage measurements with simultaneous frequency display
Capacitance to 7000μF with 0.001μF resolution
High Resistance tests to 100MΩ
Type K, °C/°F switchable, temperature to 1000°F
Diode and Continuity tests
Auto power off with disable feature
1.6" (40mm) clamp jaw opening
Test Lead Kit includes: two CAT IV-600V 72" (1.8m) lead extensions with right angle and straight end shrouded banana plugs; two modular test probe handles with stainless steel tips; two plunger activated retractable jaw clips; two extra large alligator clips
Complete with test lead kit, general purpose Type K thermocouple probe, carrying case, and 9V battery

Applications

AC Power evaluation
Motor/Generator installation and repair
HVAC flame rod tests
Capture max/min temperature or current values
Category III rating for industrial measurements

Specifications

General Specifications

Display	Dual Display; 4-digit, 10,000 count (0 to 9999) LCD
Jaw Opening	1.6" (42mm)
Max. Input limit	Max. voltage between any terminal and ground: 600Vrms
Sampling rate	2.5 times per second (Digital Display); Once every 6 seconds (KW, KVA, and KVAR)
Auto Sleep	After approx. 30 minutes (feature can be defeated)
Low battery indication	Battery symbol appears on the LCD
Power supply	9V Battery
Battery life	Approx. 32 hours with alkaline battery
Operating Temperature	32 to 122°F (0 to 50°C)
Operating Humidity	< 80% RH
Operating Altitude	7000 ft. (2000 meters) maximum.
Storage Temperature	14 to 140°F (-10 to 60°C)
Storage Humidity	< 70% RH
Temperature coefficient	0.1 x (specified accuracy) / °C at < 64°F (18°C), > 82°F (28°C)
Dimensions	9.0 x 3.0 x 1.5" (228 x 76 x 39mm)
Weight	Approx. 1.0 lb. (465g)
Approvals	CE, UL
Safety	This meter is intended for indoor use and protected, against the users, by double insulation per EN61010-1 and IEC61010-1 2nd Edition (2001) to CAT III 600V; Pollution Degree 2. The meter also meets UL 61010A-1, First Edition
UL Listed	The UL mark does not indicate that this product has been evaluated for the accuracy of its readings.

Measurement Specifications

AC Current (50Hz to 400Hz) True RMS
Range	Resolution	Accuracy (% reading)	Sensitivity	Overload Protection
99.99A	10mA	± (2% + 20d) (50, 60Hz) ± (4% + 20d) (40~400Hz)	0.10A	1000A
999.9A	100mA	± (2% + 20d) (50, 60Hz) ± (4% + 20d) (40~400Hz)	1.0A	1000A
μA True RMS (AC+DC)
Range	Resolution	Accuracy	Sensitivity	Overload Protection
99.99μA	10nA	±(1% + 20d)	0.20µA	600V
999.9μA	100nA	±(1% + 20d)	2.0µA	600V
AC Voltage (50Hz to 400Hz) True RMS
Range	Resolution	Accuracy	Sensitivity	Overload Protection
999.9mV	0.1mV	±(1% + 20d) (50, 60Hz) ±(2% + 20d) (40~100Hz)	2.0mV	600V
9.999V	1mV	±(1% + 20d) (50, 60Hz) ±(2% + 20d) (40~100Hz)	0.020V
99.99V	10mV	±(1% + 20d) (50, 60Hz) ±(2% + 20d) (40~400Hz	0.20V
600.0V	100mV	±(1% + 20d) (50, 60Hz) ±(2% + 20d) (40~400Hz	2V
DC Voltage
Range	Resolution	Accuracy	Sensitivity	Overload Protection
999.9mV	0.1mV	±(1.0% + 20d)	2.0mV	600V
9.999V	1mV		0.020V
99.99V	10mV		0.20V
600.0V	100mV		2V
Resistance (Audible Continuity for readings <40Ω on the 999.9Ω range)
Range	Resolution	Accuracy		Overload Protection
999.9Ω	100mΩ	± (1% + 10d)		600V
9.999KΩ	1Ω
99.99KΩ	10Ω
999.9KΩ	100Ω
MΩ (Resistance)
Range	Resolution	Accuracy		Overload Protection
9.999MΩ	1KΩ	±(5% + 10d)		600V
99.99MΩ	10KΩ	±(5% + 10d)		600V
Capacitance
Range	Resolution	Accuracy		Overload Protection
10.000μF	1nF	±(1.5% + 5d)		600V
100.00μF	10nF
1000.0μF	100nF
7000μF	1μF	±(4.5% + 15d)
Diode (Continuity <40mV)
Range	Resolution	Accuracy		Overload Protection
2.000V	1mV	±(2% + 1d)		600V
Temperature (K-Type thermocouple)
Range	Resolution	Accuracy		Overload Protection
-50°C to 900°C	0.1°C	±(1% + 1°C)		30VAC or 60VDC
-58°F to 1000°F	0.1°F	±(1% + 2°F)		30VAC or 60VDC
1Φ/3Φ TRUE Power (PF > 0.5 or K < 60°) (50/60Hz)
Range	Resolution	Accuracy		Overload Protection
60.00KW (<100A)	10W	±(5% + 20d)		600VAC/ 1000AAC
600.0KW (>100A)	100W	±(5% + 20d)		600VAC/ 1000AAC
1Φ/3Φ Horse Power (HP) (PF > 0.5 or K < 60°) (50/60Hz)
Range	Resolution	Accuracy		Overload Protection
80.00HP (<100A)	0.01 HP	±(5% + 20d)		600VAC/1000AAC
800.0 HP (>100A)	0.1 HP	±(5% + 20d)		600VAC/1000AAC
1Φ/3Φ Reactive Power (KVAR) (PF > 0.5 or K < 60°) (50/60Hz)
Range	Resolution	Accuracy		Overload Protection
60.00KVAR (<100A)	10VAR	±(5% + 20d)		600VAC/1000AAC
600.0KVAR (>100A)	100VAR	±(5% + 20d)		600VAC/1000AAC
1Φ/3Φ Apparent Power (KVA)
Range	Resolution	Accuracy		Overload Protection
60.00KVA (<100A)	10VA	±(2.5% + 20d)		600VAC/1000AAC
600.0KVA (>100A)	100VA	±(2.5% + 20d)		600VAC/1000AAC
Phase Angle (50/60Hz)
Range	Resolution	Accuracy		Overload Protection
-60° ~ 0° ~ +60°	0.1º	±6.0º		ACV>100V, ACA>10A
Frequency
Range	Resolution	Accuracy		Overload Protection
40Hz/1KHz	0.1Hz	±(0.5% + 2d)		ACV>5V, ACA>6A
