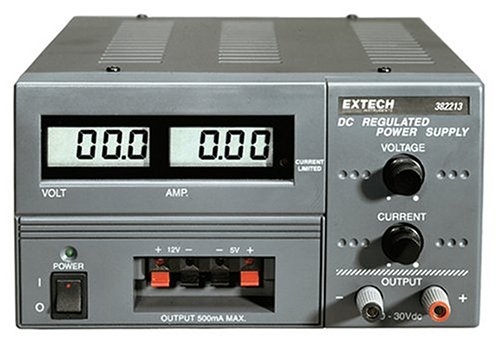

382213 Digital Triple Output DC Power Supply by Extech

Features

  • 382203 - Analog display; 382213 - Digital LCD display
  • Triple Output: Adjustable 0-30V, 0-3A plus fixed 5V and 12V
  • 0-30V Adjustable Voltage Output
  • 0-3A Adjustable Current Output
  • Independent 5V and 12V Outputs Provide Power for TTL or CMOS Projects
  • Easy Snap Terminals for 5V and 12V outputs
  • Overload and Short Circuit Protection
  • Constant Voltage or Current
  • Current Limiting Front Panel LED Indicator
  • Binding Post Terminals for Variable Supply
  • Complete with power cord
Model
382203
382213
Display
Dual Analog Metering
Dual 3-digit LCD Displays
Voltage Output, DC
0-30V
Current Output, DC
0 - 3 Amps
Current Limiting Indicator
Status LED
Accuracy
± 7% Full Scale
± 1% Full Scale + 2 digits
Ripple and Noise
< 5mV
Line Regulation
< 0.05% + 10mV
Fixed Output Voltage
5V / 0.5A (continuous); 1A (max.)
12V / 0.5A (continuous); 1A (max.)
Power
110/220VAC 50/60Hz (switchable)
Dimensions
152 x 142 x 242mm (6 x 5.6 x 9.5") (WxHxD)
Weight
4.5 kgs (10 lbs)
