Extech 42510A Wide Range Mini IR Thermometer

Item #:

EXT-42510A

Brand:

Extech

Our tech experts are ready to help!

Share this product:

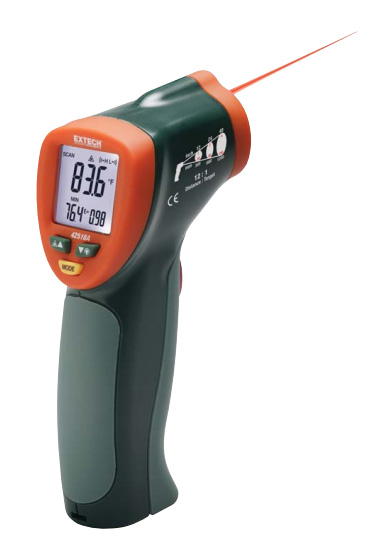

42510A Wide Range Mini IR Thermometer by Extech

Compact thermometer measures temperature from -58 to 1200°F (-50 to 650°C) with 0.1° resolution up to 999.9°
Adjustable High/Low setpoints with audible alarm alerts user when temperature exceeds the programmed setpoints
Adjustable emissivity for better accuracy on different surfaces
Built-in laser pointer identifies target area
Backlighting illuminates display for taking measurements at night or in areas with low background light levels
12:1 distance to target ratio
Data Hold and Min/Max
Overrange indicator
Auto power off
Complete with 9V battery and pouch case

General Specifications

Display	Backlit LCD display with function indicators
Response time	300ms
Over range indication	"---------"
Operating Temperature	0ºC to 50ºC (32ºF to 122ºF)
Operating Humidity	10% to 90%RH operating, <80%RH storage.
Storage Temperature	-10 to 60ºC (14 to 140ºF)
Power Supply	9V battery
Automatic Power Off	7 seconds, with LOCK to disable
Weight	6.4 oz. / 180g
Dimensions	82 x 42 x 160mm (3.2 x 1.6 x 6.3")

Measurement Range Specifications

Range / Resolution	0.1° resolution from -50.0 to 650.0°C (-58.0 to 999.9°F); 1° resolution from 1000°F to 1200°F
Accuracy	-50°C to -35°C (-58°F to -31°F); ±4°C/9°F -35°C to -2°C (-31°F to 28°F); ±3°C/5°F -2°C to 94°C (28°F to 200°F); ±2.5°C/3°F 94°C to 204°C (200°F to 400°F); ±(1.0%rdg + 1°C/2°F) 204°C to 426°C (400°F to 800°F); ±(1.5%rdg + 1°C/2°F) 426°C to 650°C (800°F to 1200°F); ±(2.0%rdg +1°C/2°F) Note: Accuracy is specified for the following ambient temperature range: 18 to 28°C (64 to 82°F)
Emissivity	0.10 to 1.00 adjustable
Field of View	D/S = Approx. 12:1 ratio (D = distance; S = spot or target)
Laser pointer	Class 2 laser < 1mW power; Wavelength: 630 to 670nm
IR Spectral response	8 to 14μm
Repeatability	± 0.5% of reading or ± 1°C/1.8°F; whichever is greater
