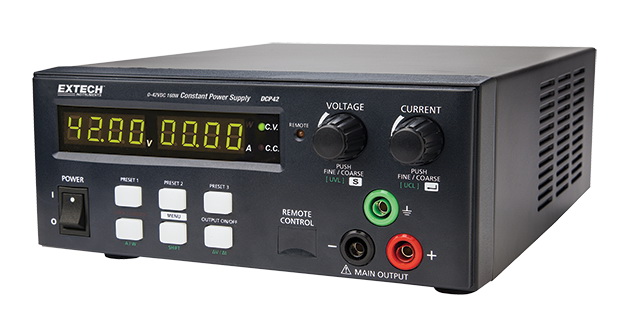

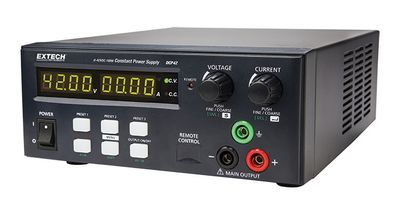

Extech Single Constant Switching Power Supply (42V/10A) - DCP42

Item #:
EXT-DCP42
Brand:
Extech
Extech Single Constant Switching Power Supply (42V/10A) - DCP42
$559.00
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Extech Single Constant Switching Power Supply (42V/10A) - DCP42

Extech Single Constant Switching Power Supply (42V/10A) - DCP42

$559.00

Discontinued


DCP42 Single Constant Switching Power Supply (42V/10A) by Extech

Continuous switching Power Supply offers high efficiency electrical power conversion for greater energy conservation and lighter weight.

Features

  • Constantly calculates and adjusts the Voltage and Current limit points according to available maximum power (160W)
  • At maximum current (10A), voltage is limited to 16V; at maximum voltage (42V), current is limited to 3.8A
  • Dual action rotary encoder control with push knob for fine and coarse tuning
  • Remote control for Programming, Output Voltage/Current, and ON/OFF using supplied software, driver, and USB
  • Three on-board user-defined Voltage/Current presets
  • Store 20 presets with up to 999 cycles each on a PC via USB and supplied Software
  • Software also includes DC Ramp and Waveform Generator
  • Complete with power cord, software, and USB cable

Applications

  • Laboratory use
  • Bench Testing, Service, and Repair
  • Research and Development facilities
  • Educational and Institutional Training
Output Voltage 0 to 42V
Output Current 0 to 10A
Basic Accuracy ±(0.2%+5 counts)
Load Voltage Regulation ≤0.15% (10-100% rated current)
Line Voltage Regulation ≤0.02% (90-264V AC)
Load Current Regulation ≤0.5% (10-90% rated voltage)
Line Current regulation ≤0.1% (90-264V AC)
Ripple and Noise ≤5m Vrms, ≤50m Vp-p
Dimensions/ Weight 7.9 x 3.7 x 9.5" (200 x 95 x 245mm)/ 5lbs (2.3kg)
