Extech EC150 Conductivity/TDS/Temperature Meter

Item #:

EXT-EC150

Brand:

Extech

Our tech experts are ready to help!

Share this product:

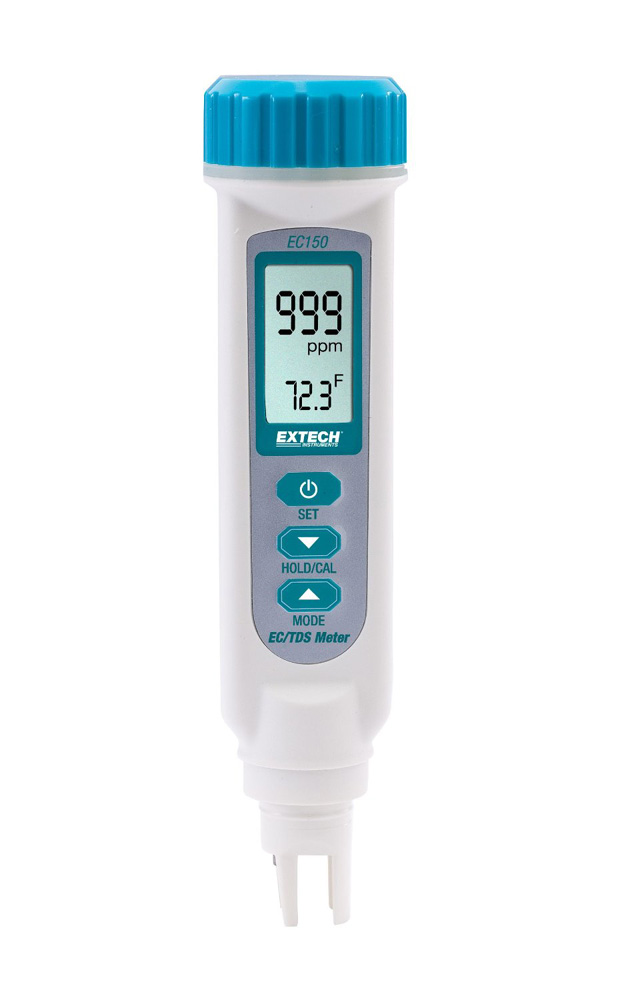

EC150 Conductivity/TDS/Temperature Meter by Extech

Units of measure include μS/cm, mS/cm, ppm, ppt, °F, and °C
Large 3-1/2 digit (2000 count) LCD display
Data Hold and low battery indication
Auto Power off with disable
Adjustable Automatic Temperature Compensation
Waterproof design to withstand wet environment - meets IP65 standard
Includes meter, protective sensor cap, and four LR44 button batteries. Order Conductivity standards separately (required for calibration)
Measures Conductivity, TDS and Temperature
Adjustable Conductivity to TDS ratio factor from 0.4 to 1.0 - conveniently calculates the TDS value
Simultaneous display of Conductivity or TDS, plus Temperature
Two ranges for Conductivity and TDS with one point calibration per range

Measurement ranges	Conductivity: 0 to 1999µS and 0 to 19.99mS TDS: 0 to 1999ppm and 0 to 19.99ppt
Accuracy	Conductivity and TDS: 1% Full Scale ±1digit
Resolution	Conductivity: 1µS and 0.01mS TDS: 1ppm and 0.01ppt
Temperature Accuracy	±0.5°C
Temperature Resolution	0.1°C/°F
Calibration	One point calibration per range
Auto Power OFF	After 20 minutes of inactivity
Data Hold	Freezes displayed reading
Automatic Temperature Compensation (ATC)	0 to 50°C
Waterproof	IP65 rated
TDS Factor	Selectable from 0.40 to 1.00
Temperature Coefficient	Selectable from 0 to 4.0%/°C
Normalization Temperature (Reference Temperature) Selectable	20°C or 25°C
Basic status indicators	Out-of-range (----) and low battery
Power Supply	Four (4) LR44 'button' batteries
Dimensions	165 x 35 x 32mm (6.5 x 1.4 x 1.3")
