Extech Compact Handheld Conductivity/TDS Meter - EC210

Item #:

EXT-EC210

Brand:

Extech

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

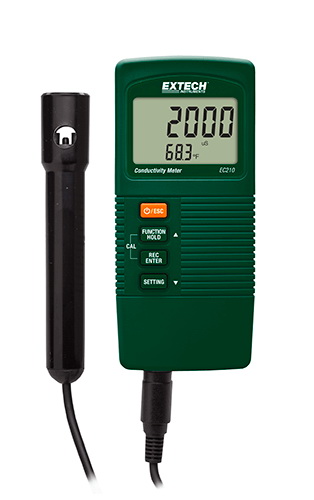

EC210 Compact Handheld Conductivity/TDS Meter by Extech

Compact handheld Conductivity Meter with long life carbon rod combination electrode measures Conductivity, TDS and Temperature. Units of measure include μS/cm, mS/ cm, ppm, deg;F, and deg;C. The meter features three ranges for Conductivity and TDS plus adjustable Temperature compensation factor to maintain accuracy.

Features

Simultaneous display of Conductivity or TDS with Temperature
Automatic Temperature Compensation
Temperature compensation factor adjustable between 0 to 5.0% per°C
Min/Max and Data Hold functions
Auto Power Off with disable feature
Use optional 1413μS Conductivity Standard (EC-1413-P) for calibration
Complete with Conductivity cell and 39" (1m) cable, 9V battery, and soft case

Applications

Wastewater and drinking water analysis
Environmental tests to determine the health of ponds, streams, wells, and other bodies of water
Manufacturing processes such as component or PCB rinsing

Specifications

Specifications	Ranges	Max Resolution	Basic Accuracy
Conductivity	2000μS/cm 20mS/cm 100mS/cm	1μS/cm 0.01mS/cm 0.1mS/cm	±2% FS
TDS	1200ppm 12,000ppm 66,000ppm	1ppm 10ppm 100ppm	±2% FS
Temperature	32 to 122°F (0 to 50°C)	0.1°F/°C	±1.5°F/0.8°C
Dimensions	Meter: 5.3 x 2.4 x 1.3" (135 x 60 x 33mm); Probe: 0.9" (22mm)D x 4.7" (120mm)L
Weight	10.4oz (295g) includes probe and battery
