Extech InfraRed Thermometer with Color Alert - IR270

Item #:

EXT-IR270

Brand:

Extech

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

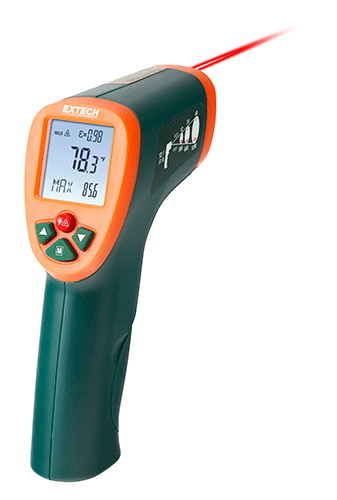

IR270 InfraRed Thermometer with Color Alert by Extech

Fast response with high accuracy, the Extech IR270 is ideal for quick checks of multiple spots in a process or for catching spikes in temperature. Easy programmable High/Low Alarm with tri-color display and audible alarm measures non-ntact temperature up to 1202°F (650°C).

Features

Take non-contact temperature measurements from -4 to 1202°F (-20 to 650°C)
Max resolution of 0.1°F/°C and basic accuracy of ±(1% of reading + 2°F/1°C)
12:1 distance to spot (target) ratio
Built-in laser pointer identifies target area with on/off button
Programmable Hi/Low alarms with audible beeper- tri-color LCD display changes to Blue backlight when reading goes below low alarm setting and Red backlight when reading exceeds High set point
Adjustable emissivity (0.10 to 1.00) increases measurement accuracy
Record/Recall up to 20 readings
Automatic Data Hold when trigger released
MAX/MIN/AVG/DIF functions
Bright white backlighting illuminates display for taking measurements at night or in areas with low background light levels
Auto power off
Low battery indicator
Dimensions: 7.1x4.2x1.6" (180x107x40mm); Weight: 5.3oz (150g)
Complete with 9V battery and pouch

Specifications

Infrared Thermometer Specifications
Range / Resolution	Auto range -20 ~ 650°C (-4 ~ 1202°F) / Resolution 0.1°
Accuracy	-20 ~ -2°C (-4 ~ 28°F): ± 4°C (8°F) -2 ~ 94°C (28 ~ 200°F): ± 2.5°C (4.5°F) 94 ~ 204°C (200 ~ 400°F): ± (1.0%rdg + 1°C/2°F) 204 ~ 426°C (400 ~ 800°F): ± (1.5%rdg + 1°C/2°F) 426 ~ 650°C (800 ~ 1202°F): ± (3%rdg + 1°C/2°F) Note: Accuracy is specified for the following ambient temperature range: 23 ~ 25°C (73 ~ 77°F), <80%RH
Emissivity	0.10 ~ 1.00 adjustable
Field of View	12:1 (approx.) Distance to Spot ratio
Laser power	Class 2 < 1mW, 650nm ±10nm
IR Spectral response	8 ~ 14 μm
Repeatability	±0.5%rdg or ±1°C (1.8°F); whichever is greater
General Specifications
Display	Backlit LCD with multifunction indicators
Response time	150ms
Out-of-range indicator	'HI' for over-range
Operating temperature	0°C ~ 50°C (32°F ~ 122°F)
Operating relative humidity	10 ~ 90% RH
Storage temperature	-10°C ~ 60°C (14°F ~ 140°F)
Storage relative humidity	80% RH maximum
Power supply	One 9V battery
Automatic power OFF	After approx. 7 seconds of trigger release
Weight	150g (5.3 oz.)
Dimensions	180 x 107 x 40mm (7.1 x 4.2 x 1.6")
