Extech 3000A 3-Phase Graphical Power Analyzer/Datalogger Kit - PQ3470-30
Item #:
EXT-PQ3470-30
Brand:
Extech
Share this product:

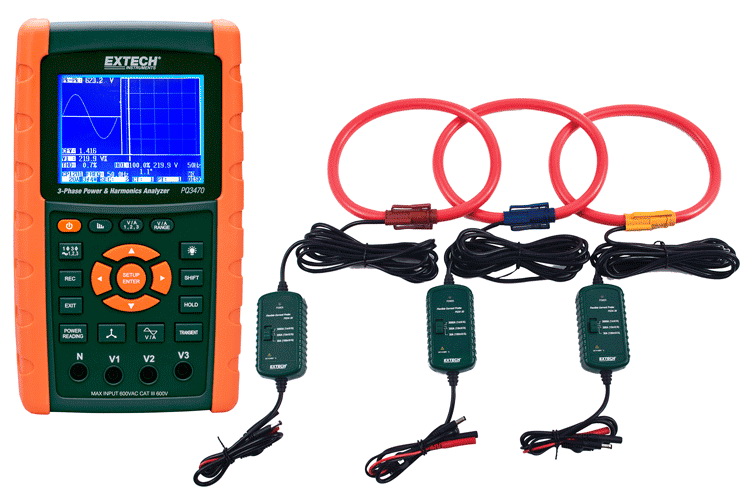

PQ3470-30 3000A 3-Phase Graphical Power Analyzer/Datalogger Kit by Extech
The PQ3470 is a 3-phase graphical power and harmonics analyzer/data logger capable of logging up to 30,000 sets of measurements on a removable SD memory card. The meter features a 3-phase voltage or current unbalanced ratio (VUR, AUR) and unbalanced factor, captures transient events (including dip, swell, and outage) with programmable threshold (%), a wide sampling rate range (2 seconds to 2 hours), a built in clock/calendar. Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor, three 3000A flexible current probes and case.
Features
- Large dot-matrix, sun-readable, graphical, backlit LCD
- Full system analysis with up to 35 parameters: V (phase-to-phase), V (phase-to-ground); A (phase-to-ground); KW / KVA / KVAR / PF (phase); KW / KVA / KVAR / PF (system); KWH / KVAH / KVARH / PFH (system); Phase angle
- Select 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)
- Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
- On-screen Harmonics display (1 to 50th order)
- Simultaneous display of Harmonics and Waveform
- Display of Waveform with peak values
- Analysis of Total Harmonic Distortion (THD)
- Graphic Phase diagram with 3-Phase system parameters
- 3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
- Capture Transient events (including dip, swell, and outage) with programmable threshold (%)
- Log up to 30,000 readings on a removable SD memory card in Microsoft Excel® format
- Wide sampling rate range (2 seconds to 2 hours)
- Captured measurements can be imported directly into Excel via the SD memory card
- Built-in Clock and Calendar
- Easy-to-use onscreen menu
- Easy-to-hold rugged over molded housing
| Specifications | Range | Basic Accuracy |
| AC Voltage (True rms) | 600.0V | ±(0.5%rdg) |
| AC Current | 3000A | ±(0.5%rdg) |
| Active Power (MW) | 9.999MW | ±(1.0%rdg) |
| Apparent Power (MVA) | 9.999MVA | ±(1.0%rdg) |
| Reactive Power (MVAR) | 9.999MVAR | ±(1.0%rdg) |
| Power Factor | 0.00 to 1.00 | ±0.04 |
| Frequency Range | 45Hz to 65Hz | ±0.1Hz |
| Phase | -180° to +180.0° | ±1° |
| Harmonics | 1 to 50th | ±2% (1 to 20); ±4% (21 to 31) |
| Crest Factor | 1.00 to 99.99 | ±(5%) |
| Current Clamp input | 200mV, 300mV, 500mV | ±(0.5%rdg) |
| 1V, 2V, 3V; user-selectable | ||
| Peak AC Voltage Accuracy | ±(5%) | |
| Peak AC Current Accuracy | ±(5%) | |
| Active Power Energy (MWH) | 0.0kWh to 9.999MWH | ±(2.0%rdg) |
| Apparent Power Energy (MVAH) | 0.0KVAh to 9.999MVAH | ±(2.0%rdg) |
| Reactive Power Energy (MVARH) | 0.0kVARh to 9.999MVARH | ±(2.0%rdg) |
| Datalogging | 30,000 readings (2GB SD memory Card) | |
| Dimensions/Weight | 8.86 x 4.92 x 2.52" (225 x 125 x 64mm) / 2.2lbs (1010g) | |
